Small Detection Range 24GHz Presence Radar Sensor With Dc To Dc Dry Contact Output
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MSA215D 99 |
| Minimum Order Quantity | 100PCS |
| Price | Negotiation |
| Packaging Details | White box+Clapboard+ Carton(K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Voltage | 12/24Vdc | Communication Mode | NO/NC Dry Contact (Factory Setting Is NO Dry Contact) |
|---|---|---|---|
| Working Current | 125mA Max | Radar Frequency | 24.125GHz±125MHz |
| Detection Sensitivity | 25%-100% | Hold Time | 5s-30min |
| Daylight Detection Range | 5Lux-150Lux | Mounting Height | 2.5-4m (typical 3m) |
| Installation | Recessed. Cut Hole Φ65-70mm | Detection Range | 0.5~1.5m |
| High Light | 24GHz Presence Radar Sensor,Small Detection Range Presence Radar Sensor,Dry Contact Presence Radar Sensor |
||
Product Description

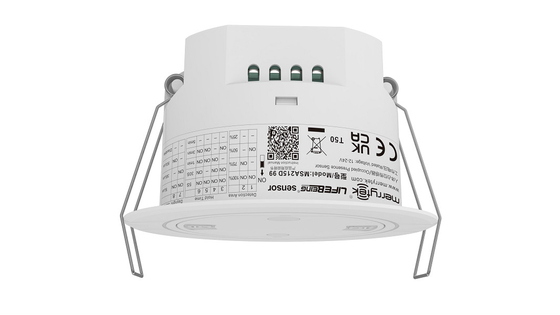

Small Detection range 24GHz Presence Radar sensor with DC to DC dry contact output
1. Feature
MSA215D 99 is a 24GHz radar sensor based on Merrytek's patented multi-array antenna. Thanks to its high gain, concentrated detection range, and Merrytek’s unique software algorithm, it can accurately detect human presence information within a small range with clear boundaries like workplace and toilet cubicles. Thus it can provide fast and accurate human presence/absence information for smart office work stations ,small meeting cubicles and smart toilet solutions.
2. Parameters
| Input/Output | Input voltage | 12-24V DC |
| Rated voltage | 12V/24V DC | |
| Working Current | 125mA max | |
| Working Power | ≤1W 24V DC | |
| Output signal | NO/NC dry contact (Factory setting is NO dry contact) | |
| Sensor Parameter | Radar frequency | 24.125GHz±125MHz ISM band |
| Transmitting Power | 5mW Max | |
| Detection Area | MH10 remote or DIP setting: 25%-100% | |
| Hold Time | MH10 remote or DIP setting: 5s-30min | |
| Daylight sensor threshold | Motion/presence(3m height): 0.5-1.5m | |
| Radius detection range(based on QS1 mode 100% sensitivity) | 5-150lux/Disable | |
| Remote control | Available | |
| Mounting height | 2-4m | |
| 3dB beam angle | 30°(horizontal) | |
| 30°(vertical) | ||
| Application Environment | Drill hole | Φ65-70mm |
| Working temperature | 0℃...+50℃ | |
| Storage temperature | -25℃~+80℃ | |
| Certificate Standard | Certificate | CE/FCC/RED |
| Environmental requirements | Compliant to RoHS | |
| IP rating | IP20 | |
| Note: "N/A" means not available. | ||
3. Dimension ( mm)
4. Wiring
5. Detection area
6. Factory default setting
Detection Area :100% Hold Time :1min Daylight Sensor: Disable Indicator light :open
7. Detection signal
The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in non-sleep state. The following is a description of the moving, minor moving and presence signals:
*Moving signal: detect the human significant moving (walking) in the detection area.
*Minor moving signal: detect the human slight moving in the detection area, such as leaning forward, leaning forwarder and back, swinging limbs, shaking head, typing, playing with mobile phones and so on.
*Presence signal: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect moving signal and minor moving signal.
7. DIP setting
Detection Area
| 1 | 2 | ||
| Ⅰ | ON | ON | 100% |
| Ⅱ | - | ON | 75% |
| Ⅲ | ON | - | 50% |
| Ⅳ | - | - | 25% |
Hold Time
| 3 | 4 | 5 | 6 | ||
| Ⅰ | ON | ON | ON | ON | 5S |
| Ⅱ | ON | ON | - | ON | 30S |
| Ⅲ | - | ON | ON | ON | 1min |
| Ⅳ | ON | - | ON | ON | 3min |
| Ⅴ | - | - | - | - | 5min |
Daylight sensor
| 7 | 8 | ||
| Ⅰ | ON | ON | 5Lux |
| Ⅱ | ON | - | 30Lux |
| Ⅲ | - | ON | 50Lux |
| Ⅳ | - | - | Disable |
