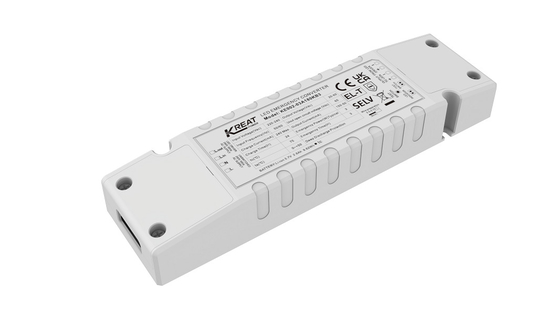

3.7V 2600mAh manual test constant Power 3W Emergency Drivers with built-in battery
Place of Origin | China |
---|---|
Brand Name | Kreatpower |
Certification | CE |
Model Number | KE002-03M180KB3 |
Minimum Order Quantity | 100 |
Price | Negotiation |
Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
Payment Terms | T/T or Western Union |
Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Input Voltage | 220-240Vac 50Hz /60Hz | Emergency Power | 3W(Can Be Customized) |
---|---|---|---|
Emergency Time | 180min (Can Be Customized) | Warranty | 5 Year @Ta ( Battery Not Included ) |
Load Output Voltage | 20-60Vdc | Working Temprature | 0℃~50℃ |
IP Rating | IP20 | Battery Type | Li-ion |
3.7V 2600mAh manual test constant Power 3W Emergency Drivers with built-in battery
1. Description
1) Wide Output Voltage Range: Our emergency power supply offers a wide output voltage range, allowing seamless compatibility with various LED lighting fixtures. Experience uninterrupted illumination regardless of voltage fluctuations or variations in your lighting setup.
2) Input/Output Relay Switching: With intelligent input and output relay switching, our power supply seamlessly transitions between normal and emergency modes. This ensures a smooth and automatic switch to emergency power during unexpected power outages, providing uninterrupted lighting when it's needed the most.
3) Compact and Easy to Install: Designed with convenience in mind, our power supply features a built-in battery and boasts a compact form factor. Its small size makes installation hassle-free, allowing for flexible placement within your lighting system.
4) Multiple Protection Functions: Rest easy knowing that our power supply is equipped with a range of protection features. It includes battery overcharge protection, preventing damage due to excessive charging, as well as over-discharge protection to prolong battery life. Additionally, the output short circuit protection ensures the safety of your lighting fixtures.
2. Parameters
Charge Part | KE002 | 01M / 01A180KB1 | 02M / 02A180KB | 03M / 03A180KB3 |
Rated input voltage | 220-240Vac 50Hz /60Hz | |||
Rated input current | 0.06A Max. @230Vac | |||
Input inrush current | 15A(twidth=100uS 50% Ipeak )@230Vac(Cold start at full load ) | |||
Power factor | ≥0.5@230Vac | |||
Input power | <3W@230Vac | |||
Battery charging current (Max) | 240mA | |||
Battery charging time | 24 hours MAx | |||
Emergency Part | Operating mode | Emergency mode | ||
Load type | LED | |||
Emergency power | 1W | 2W | 3W | |
Emergency time | 3hours | |||
Load output current | 50-15mA | 100-30mA | 150-50mA | |
Load output voltage | 20-60VDC | |||
Battery | Li-ion (The battery capacity meets the emergency time at 25℃) | 3.7V 2000mAh | 3.7V 2600mAh | |
Battery warranty | Warranty 1 year, Design Life 2 years. | |||
Exception Driver Requirements | Surge current | 8A | ||
Input current | 1A Max. | |||
Output current | 8A | |||
LED Indication | Charging | Greenlight | ||
Fault | Red light | |||
Emergency Function Test | Manual test | Yes | ||
Autotest | KE002-01A180KB1 / KE002-02A180KB / KE002-03A180KB3 |
Auto Testing | Fault / test / Status | Reason | Charge Indicator Status |
Battery fully charged and operational | Standard daily use | solid green | |
Battery Charging | Initial Charge/Battery Top Up |
Flashing green 1 sec on 1 sec off |
|
Auto Test 1 Hours (every 12 months) | Periodic self test | Flashing Green 3 sec on 1 sec off | |
Auto Test 5 Min (every 30 days) | Periodic self test | Flashing Green 3 sec on 3 sec off | |
Duration test fault | Failed the 1 hour annual test | Flashing Red 0.5 sec on 0.5 sec off | |
LED fault | Not plugged in or damaged/faulty | Flashing Red 2 sec on – 2 sec off | |
Battery Disconnected/Faulty | Not plugged in or damaged/faulty | solid red | |
Emergency protection | Battery over-charge/deep discharge protection | Yes | |
Output over-voltage protection | Yes | ||
Output overload protection | Yes | ||
Output short circuit protection | Yes | ||
Operating Environment |
Operating temperature/humidity | 0℃…+50℃humidity:20%-75%(without condensation) | |
Storage temperature/humidity | -5℃-35℃ | ||
Case Max. Temp(Tc) | 75℃ | ||
Safety & EMC |
Withstand voltage | 3000Vac 5mA 60S (Input “L N” – output “SEC+ SEC-) | |
Safety standard | EN61347-1, EN61347-2-7 | ||
EMC standard | EN55015, EN61000-3-2, EN61000-3-3 | ||
Battery standard | UN38.3 | ||
Environmental protection requirements | Compliant to RoHS | ||
Certification | CE | ||
Others | Input/output(terminal/wiring) specification | Press terminal, wire diameter:0.5-0.75mm2 | |
IP rating | IP20 | ||
Type of protection | Class 2 | ||
Installation type | Built-in installation | ||
Installation dimension | 137*42*22mm | ||
Packaging requirement | White box+Instruction manual+clapboard+outer carton(K=A) | ||
Others | Weight :Emergency Power Supply | 105g | |
Lifespan | 5 Year @Ta ( Battery not included ) | ||
Notes:All parameters are tested on the input voltage 230Vac,environment temperature 25℃,unless otherwise specified. |
3. Dimension (Unit:mm)
4. Wiring Diagram
5. Wiring
6 . Manual Test & Operation Instructions
1). Connect the wire according to the wiring diagram.
2). L, N power on, Switch on S1. then the load lamp turns on, The emergency driver indicator light turns green, emergency power supply normally charging. Turn off Switch S1, and the load lamp turns off.
3). Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, and the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, the indicator light will turn on.
4). Power failure and call again, the phenomenon should be the same as a simulated emergency.
5). Automatic monthly test: When the emergency power supply is connected to the mains for one month if no human emergency or emergency is caused by the mains cut off, the emergency power supply will automatically carry out an emergency for 5 minutes every month (green light blinking at short intervals). After the end of the month test, the normal charging will be carried out (the indicator light will be long). In the event of a human emergency or an emergency due to a mains cut-off, the timer will start from zero until it enters the monthly test cycle.
6). Automatic annual test (1 year/time): When the emergency power supply is connected to the mains for 12 months and there is no human emergency or emergency due to the mains cut off, the emergency power supply will automatically carry out emergency deep discharge once every 12 months (green light blinking slowly). After the annual test, the normal charge will be carried out (the indicator light will be long on). In the event of a human emergency or an emergency due to a mains cut-off, the timer will start from zero until it enters the annual test cycle.
7. Battery Application Notice
1). The battery should be recharged and discharged semiannually in normal use conditions.
2). Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board.
3). Please keep the battery from the heat source when installing and using it, and only be allowed to use it in a certain working temperature range.
4). The battery should be stored in a cool and dry environment.
5). After a long time of storage, the battery is cycled every 6 months as required.
