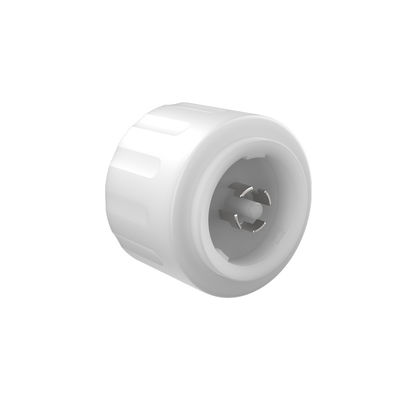

Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor

  • Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor
  • Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor
  • Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor
  • Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC079D IR ZB1
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Clapboard + Carton
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12±1V DC Working Current 35±5mA
Ripple Voltage <100mVp-p Output Signal 0 -10VDC Dimming Signal
Working Frequency 2.402-2.480GHz BLE Module Casambi Bluetooth Module CBM-003B
Highlight

0-10V Wireless PIR Motion Sensor

,

Mini size MW motion detection sensor

,

High Bay PIR Motion Sensor
Leave a Message
Product Description

Casambi App Setting 0-10V Wireless PIR Motion Sensor for High Bay



【Product Feature】

  • 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output.
  • 0--10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
  • Mini size MW motion detection sensor
  • Indoor maximum mounting height is 15m
  • All sensor parameters can be set by Casambi App setting



【Parameters】



Input
Rated voltage 12±1V DC
Working current 35±5mA
Ripple voltage <100mVp-p
Output
Output signal 0 -10VDC dimming signal
Sensor parameters
Detection way PIR
Sensor sensitivity Casambi App setting
Daylight Priority Casambi App setting
Stand-by dim level Casambi App setting
Detection Area (Radius) Ceiling installation 12m high: r≥4m@0.3m/s; r≥3m@1m/s
Installation height 10m (12m Max )
Wireless parameters
BLE Module Casambi Bluetooth module
Working frequency 2.402-2.480GHz
Transmitting power +7dBm(max)
Transmission distance Point to point transmit 20m Max
Fixture ID 32022
Environment
Working temperature -25~55℃
Storage temperature -40℃~80℃, humidity ≤85% (non-condensing)
Certification standards
Certification CE
Environmental requirements Comply with RoHS 2.0 , Reach requirements
IP Rating IP65
Other
Wiring Zhaga Book 18 interface
Installation requirements External
Packaging requirements Clapboard + Carton(K=A)
Net weight N/A
Lifetime 5 years warranty @Ta



【Function Description】



√ ON-OFF function Casambi App setting
√ 2-step dimming Casambi App setting
√ 3-step dimming Casambi App setting
√ Daylight priority Casambi App setting
√ Daylight harvesting N/A
√ Network function Casambi App setting



【Product Information】

  • Dimension (Unit:mm)

​

Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor 0

  • Function



Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor 1





【Installation Instruction】





Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor 2





【Detection Range】



Casambi App Setting 0-10V Wireless PIR Motion Sensor For High Bay Mini Size MW Motion Detection Sensor 3



【Initialization】



  • After switch on power, sensor will be warmed 45-60s then start to work. During initialization, the sensor is not able to detect movement.



【Default setting】



Sensitivity: 100%, Hold time: 10s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%



【Application Notice】



  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can’t penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment etc.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 100mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
