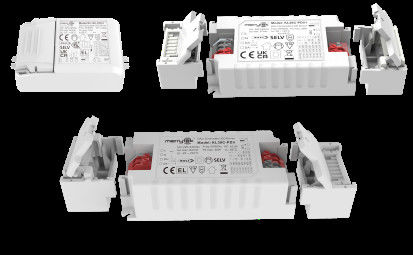

30W DALI DT6 and pushDIM dimmable constant current led driver for LED downlight
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | CE |
Model Number | KL30C-PDii |
Minimum Order Quantity | 100 |
Price | Negotiation |
Packaging Details | White box + Carton, 50pcs/CTN |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
Payment Terms | T/T or PayPal |
Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xRated Input Voltage | 220-240Vac 50Hz /60Hz | DC Input Voltage Range | 200-240Vdc |
---|---|---|---|
Operating Mode | Constant Current | Control Method | DALI DT6 And PushDIM |
Power Factor | ≥0.95 | Efficiency | 88% |
Current | 500/550/600/650/700/900/1000mA | Dimension | 136x42.5x24mm |
IP Rating | IP20 | Warranty | 5 Years |
30W DALI DT6 and pushDIM dimmable constant current led driver for LED downlight
1. Description
-Centrally-supplied DC emergency operation DT19
-Flicker-free for the whole dimming range
-Stand-by power below 0.5W
-Primary dimming with push button
-Built-in DALI interface DT6
-Protection: short circuit / over temperature/ over voltage
-Derating current for over high ambient temperature
-pushDIM with the memory function
-5 year warranty
2. Parameters
Micro series |
KL30C-PDii KL30C-PDii |
||||||
Input | Operating Voltage | 198-264Vac 50Hz/60Hz | |||||
Rated Input Voltage | 220-240Vac 50Hz/60Hz | ||||||
DC Input Voltage range | 200-240Vdc | ||||||
Input Current |
0.16A Max. 0.11A Max. 0.16A Max. |
||||||
Input Inrush Current | <15A (Half current pulse width100μs) @230Vac | ||||||
Power factor(@230V100% load) |
≥ 0.95 ≥ 0.95 ≥ 0.95 |
||||||
Total harmonic distortion (@230Vac, 100% load) |
Typical:20% | ||||||
Stand-by power | ≤0.5W (@230Vac when PUSH or DALI turn off) | ||||||
Efficiency(@230Vac,100% load) |
88% 88% 88% |
||||||
Wiring Method | 0.75-1.5mm2 | ||||||
Automatic circuit breaker
|
KL30C-PDii (Calculate current in the wire) | ||||||
type | C10 | C13 | C16 | C20 | C25 | ||
Number | 40 | 55 | 65 | 85 | 100 | ||
type | B10 | B13 | B16 | B20 | B25 | ||
Number | 25 | 30 | 40 | 50 | 60 |
Output | Operating mode | Constant Current |
Load type | LED | |
Ripple requirement (Flickering or Flickering-Free) | Flicker value: less than 5% for whole dimming range | |
Start up time | <1s (@230Vac) | |
No-load output voltage | 59V DC Max. | |
Load output voltagerange | 12-40V DC | |
Full load output power | 30W | |
Load output current: For details<Current gear setting> | 500-1000mA | |
Constant current/voltage Precision | Constant Current Precision ±5% | |
Wiring method | Push terminal, wire cross section:0.75-1.5mm2 | |
Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length:20M) |
DALI Dimming | DALI dimming (Max.lead length:300M) | |
Exception Protection Requirements | Output over temperature protection |
Yes, without self recovery function(Can be inquired) |
Output short circuitprotection | Yes, without self recovery function(Can be inquired) | |
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) |
Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |
Max. case temp(Tc) | 85℃ | |
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 |
DALI protocol standard | IEC62386-102, IEC62386-207 DT6 251 252 253 DT19 | |
Safety standard | EN61347-1 EN61347-2-13 | |
Certification | CE | |
Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |
Others | Degrees of protection | IP20 |
Type of protection | Class II | |
Installation type | Independent installation | |
With crimping | 136*42.5*24mm | |
Without crimping | 96*42.5*24mm | |
Blackout memory function | Yes, PUSH blackout memory | |
PUSH dimming synchronization | 15 units Max. | |
Packaging requirement | PE bag+Instruction+clapboard+outer carton(K=A) | |
Weight | 103.9g | |
Life | 5 year @Ta full load | |
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. |
3. Dimension (Unit:mm)
4. Wiring Diagram
Fig. A DALI Dimming
Fig.B Push Dimming
5. Derating
6. Dimming curve
7.Current gear setting
●:ON ○:OFF (SEC1 SEC2)
KL30C-PDii Current gear setting |
1 | 2 | 3 |
500mA(12-40V) | - | - | - |
550mA(12-40V) | ON | - | - |
600mA(12-40V) | - | ON | - |
650mA(12-40V) | ON | ON | - |
700mA(12-40V) | - | ON | ON |
900mA(12-33V) | ON | - | ON |
1000mA(12-30V) | ON | ON | ON |
8. ON/OFF & Description of Dimming Operation
A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
C. Memory: PUSH dimming has dimming memory function.
D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
9. matters needing Attention
1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
