12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight

  • 12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL12C-PDii1
Minimum Order Quantity 100
Price Negotiation
Packaging Details Carton, 100pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode Constant Current Control Method DALI DT6 And PushDIM
Power Factor ≥0.9 Efficiency 83%
Current 150/200/250/300/350/400/450/500 Dimension L88mm*W52mm*H25mm
IP Rating IP20 Warranty 5 Years
Leave a Message
Product Description

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight



1. Description

-Centrally-supplied DC emergency operation DT19

-Flicker-free for the whole dimming range

-Stand-by power below 0.5W

-Primary dimming with push button

-Built-in DALI interface DT6

-Protection: short circuit / over temperature/ over voltage

-Derating current for over high ambient temperature

-pushDIM with the memory function

-5 year warranty

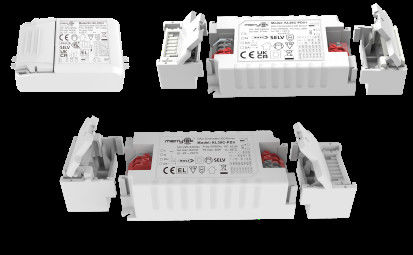

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 0



2. Parameters

  Micro Series

KL12C-PDii1
Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current

0.07A Max.

0.11A Max.

0.16A Max.
Input Inrush Current <15A (Half current pulse width100μs) @230Vac
Power factor(@230V100% load)

≥ 0.90

≥ 0.95

≥ 0.95

Total harmonic distortion

(@230Vac, 100% load)

 Typical:15%
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency(@230Vac,100% load)

83%

88%

88%
Wiring Method 0.75-1.5mm2

Automatic circuit breaker



 KL12C-PDii1 (Calculate current in the wire)
type C10 C13 C16 C20 C25
Number 70 80 105 130 160
type B10 B13 B16 B20 B25
Number 40 50 65 85 100
Number 25 30 40 50 60
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or Flickering-Free) Flicker value: less than 5% for whole dimming range
Start up time <1s (@230Vac)
No-load output voltage 55V DC Max.
Load output voltagerange 3-40V DC
Full load output power 12W
Load output current: For details<Current gear setting> 150-500mA
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuitprotection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6 251 252 253 DT19
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
With crimping 88*52*25.5mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement PE bag+Instruction+clapboard+outer carton(K=A)
Weight 69.8g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

3. Dimension (Unit:mm)

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 1

4. Wiring Diagram



Fig. A DALI Dimming

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 2

Fig.B Push Dimming

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 3

5. Derating

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 4

6. Dimming curve

12W DALI DT6 and pushDIM dimming led driver constant current for LED downlight 5

7.Current gear setting

●:ON ○:OFF (SEC1 SEC2)

KL12C-PDii1

Current gear setting

 1 2 3
150mA(3-40V) - - -
200mA(3-40V) ON - -
250mA(3-40V) - ON -
300mA(3-40V) - - ON
350mA(3-36V) ON ON -
400mA(3-30V) ON - ON
450mA(3-27V) - ON ON
500mA(3-24V) ON ON ON



8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
