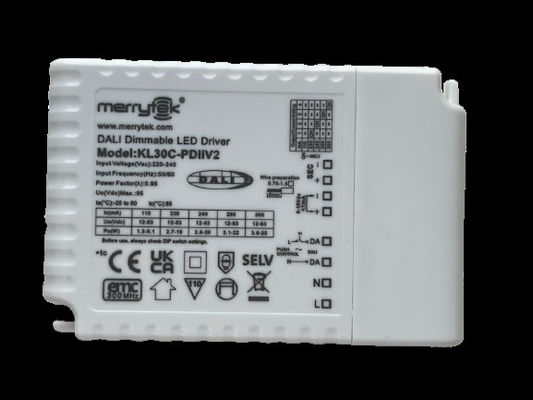

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel

  • 12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL30C-PDiiV2
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode Constant Current Control Method DALI DT6 And PushDIM And 1 10v Dimmable Led Driver
Power Factor ≥0.95 Efficiency 86%
Current 110/230/240/260/300mA Dimension 103x67x22mm
IP Rating IP20 Warranty 5 Years
Highlight

30 watt Constant Current LED driver

,

LED Panel DALI Dimmable LED Driver

,

12-83Vdc High Voltage LED Driver
Leave a Message
Product Description

12-83Vdc high voltage led driver constant current output 30 watt DALI dimmable LED driver for LED panel



1. Description

-Flicker-free for the whole dimming range

-Stand-by power below 0.5W

-Primary dimming with push button

-Secondary dimming with 1-10V dimmer and potentiometer

-Built-in DALI interface DT6

-Supports 10V PWM dimming (3KHz-8KHz)

-Protection: short circuit / over temperature/ over voltage

-Derating current for over high ambient temperature

-pushDIM with the memory function

-5 year warranty



2. Parameters

Input Operating Voltage 198-264Vac 50Hz/60Hz
Rated Input Voltage 220-240Vac 50Hz/60Hz
DC Input Voltage range 200-240Vdc
Input Current 0.16A Max.
Input Inrush Current <8A (Half current pulse twidth 50μs) @230Vac
Power factor ≥ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 13% (@230Vac, 100% load)
Stand-by power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency 86%Max (@230Vac,100% load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type B10 B13 B16 B20 B25 /
Number 25 30 40 50 60 /
type C10 C13 C16 C20 C25 C32
Number 45 60 70 95 120 150
Output Operating mode Constant Current
Load type LED
Flickering / Flickering-Free Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac,)
No-load output voltage 95V DC Max.
Load output voltagerange 12-83V DC
Full load output power 30W Max
Load output current 110~300mA: For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section: 0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V(0-10V)Dimming 1-10V dimming(Port current＜1MA) no turn off function
(Max.lead length: 20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming: 2%-100%
Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuitprotection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity: 85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity: 10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102, IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC, SEMKO. CB. CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 103*67*22mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement Instruction+clapboard+outer carton(K=A)
Weight 139g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.

3. Dimension (Unit:mm)

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 012-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 1

4. Wiring Diagram



Fig. A DALI Dimming

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 2

Fig.B Push Dimming

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 3

Fig.C 1-10V Dimming

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 4



5. Derating

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 5

6. Dimming curve

12-83Vdc High Voltage LED Driver Constant Current Output 30 Watt DALI Dimmable LED Driver For LED Panel 6

7. Current gear setting



Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4
110mA - - - - 9.1 12～ 83
230mA ON - - - 19.1 12～ 83
240mA - ON - - 19.9 12～ 83
260mA - - ON - 21.6 12～ 83
300mA - - - ON 22.8 12～ 83



8. ON/OFF & Description of Dimming Operation

A. Short press the PUSH switch (short press time 0.1S-1S), and the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has a dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds

E. DALI dimming mode: Connect the power supply to the DALI system, and the DALI host can dim it. The dimming range is 0-100%.



9. matters needing Attention

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
