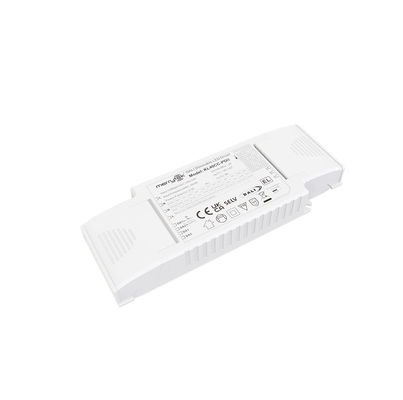

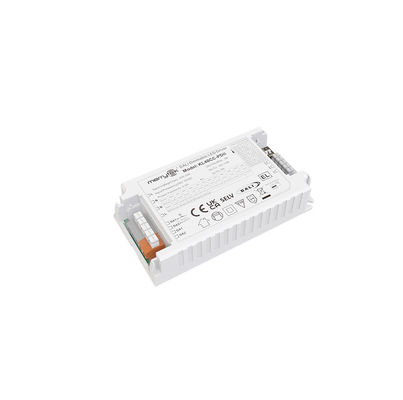

40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches

  • 40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches
  • 40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number KL40CC-PDii
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details white box+ Instructions Clapboard Outer Carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 220-240VAC 50Hz /60Hz Power Factor ≥0.95 @230VAC （Full Load）
Stand-by Power ≤0.5W（@230Vac） Efficiency 86%Max. @230VAC （Full Load）
Operating Mode DALI DT8, Emergency Operation DT19 Installation Dimension 180*67*24mm
Housing Material Plastic Lifetime 50000h @Ta Full Load
Leave a Message
Product Description

40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches





【Product Feature】

  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Built-in DALI interface DT8
  • Centrally-supplied DC emergency operation DT19
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for a high ambient temperature
  • Push dim with memory function
  • 5-year warranty



  • Parameters
Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Current 0.21A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total harmonic distortion Typical: 13% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac)
Efficiency 86%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section: 0.75- 1.5 mm2
Loop-in&Loop-out quantity 22PCS(@230Vac)

Automatic circuit breaker

(Calculate the current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 45 50 /
type C10 C13 C16 C20 C25 C32
Number 35 48 55 70 90 110
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or flicker-free) Flicker value: less than 2% for the whole dimming range
Start-up time <0.7s (@230Vac) <0.5s (@ DC Input)
No-load output voltage 68VDC Max.
Load output voltage range 12-50VDC
Full load output power 40W Max.
Load output current 500~1050mA : For details<Current gear setting>
Output Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section: 0.75- 1.5 mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max..lead length: 20 M)
1-10V Dimming NO
Dimming Range Primary PUSH & DALI dimming: 0%-100%
Potentiometer NO
DALI Dimming DALI dimming (Max..lead length: 300 M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self-recovery function(Can be inquired)
Output short circuit protection Yes, without self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 / 209 DT8 / 220 DT19
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Built-in installation 120*64.8*24mm
Independent installation 179.6*66.9*24mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 150g
Life 5 year @Ta full load
Note: All parameters are tested at the input voltage of 230VAC and a 25 °C environment unless other specified.
  • Dimension (Unit: mm)

40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 040W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 1





  • Wiring Diagram

 40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 240W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 3



                            Fig. A DALI Dimming                                                                                     Fig.B Push Dimming



  • Derating

40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 4



  • Dimming curve & range

 40W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 540W DALI2 DT8 dimmable LED driver constnat current 500mA to 1050mA while DIP switches 6



  • Current gear setting:
Current (mA) DIP Pomax(W) Uout(V)
1 2 3 4
500 - - - - 25.0 12～ 50
550 ON - - - 27.5 12～ 50
600 - ON - - 30.0 12～ 50
650 ON ON - - 32.5 12～ 50
700 - - ON - 35.0 12～ 50
750 ON - ON - 37.5 12～ 50
800 - ON ON - 40.0 12～ 50
850 - ON ON - 40.0 12～ 47
900 - - ON ON 39.6 12～ 44
950 ON - ON ON 39.9 12～ 42
1000 - ON ON ON 40.0 12～ 40
1050 ON ON ON ON 39.9 12～ 38
  • ON/OFF & Description of Dimming Operation

A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15 seconds

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



  • Attentions

1) The driver must be connected to the fixtures before turning on the input power, otherwise the fixtures may be damaged.
