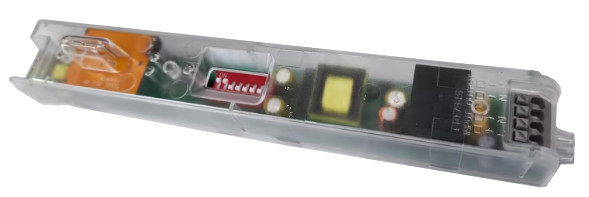

SYNC function dimmable motion sensor for LED Batten

  • SYNC function dimmable motion sensor for LED Batten
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, RED, UKCA, SAA
Model Number MC188V 99
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble bag + Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 120/277V AC 50/60Hz (US)；220-240VAC 50/60Hz (Europe) Stand-by Power ≤0.5W
Output Signal ON-OFF/ 0-10VDC Dimming Signal Mounting Height 3m ( 6m Max )
Operating Temperature Built-in: -20~60°C Certificate CE, RED, UKCA, SAA
Lifetime 5 Years Warranty @Ta Full Load
Leave a Message
Product Description

【Product Features】


  •    Patented coupling dipole antenna design, suitable to built-in metal LED tray without false trigger.
  •    Transparent shell, not effect light distribution
  •    Low sidelobe, no false trigger in metal reflection space.
  •    Low transmitting power, no harm to human.
  •    Sensor data can be set by DIP switch & remote control.
  •    Not affected by temperature, humidity, noise, dust etc..
  •    With 1-10V dimming signal, SYNC function


【Parameters】


Input

Rated Voltage

120/277V AC  50/60Hz(US)；220-240VAC  50/60Hz(Europe)

Stand-by Power

≤0.5W

Surge Test

1kV(L/N,EN61000-4-5)

Output

Output Control

ON-OFF

0-10VDC Dimming Signal

Load Capacity

2A @120Vac                           2A @277Vac

Load Capacity

200W@110VAC(Inductive/LED),400W @110VAC(Resistive).

400W@230VAC(Inductive/LED),800W @230VAC(Resistive).

Max. Surge Capacity

30A (50% Ipeak,  twidth =200us, 230Vac full load, cold start);

0-10VDimming

< 50mA (Non-constant current source)

10%(1.4-1.6V)   20%(1.9-2.1V)   30%(2.9-3.1V) 50% (4.9-5.1V)

Sensor Parameter

Operating Frequency

5.8 GHz ±75MHz, ISM wave band.

Transmitting power

1mW Max.

Hold time

5S/1min/5min/10min(setting by DIP)

5s/30s/1min/3min/5min/10min/20min/30min (setting by remote)

Stand-by dim Level

10%(1.4-1.6V)//30%(2.9-3.1V)(setting by DIP)

10%(1.4-1.6V)/20%(1.9-2.1V)/30%(2.9-3.1V)/50%(4.9-5.1V)(setting by remote)

Hold time

5S/1min/5min/10min(setting by DIP)

5s/30s/1min/3min/5min/10min/20min/30min (setting by remote)

Stand-by Period

0S/1min/10min/+∞(setting by DIP)

0s/10s/1min/3min/5min/10min/30min/+∞  ( setting by remote)

Detection

100%/75%/50%/25%(setting by DIP)

100%/75%/50%/25%   (setting by remote)

Daylight Sensor

Daylight threshold

5lux/30lux/100lux/Disable (setting by DIP)

5lux/15lux/30lux/50lux/100lux/150lux/Disable (setting by remote)

Daylight priority

ON

Off

5lux/15lux/

30lux/50lux

Turn on Value+(50-150Lux)

100lux

Turn on Value+(50-150Lux)

150lux

Turn on Value+(50-150Lux)

Detecting Radius

Ceiling mounting 3m r≥3m@1m/s,

Wall mounting 2m r≥3.5m@1m/s

Motion speed: 100% sensitivity,  open 60㎡ indoor area.

Mounting Height

3m(6m Max )

Environment

Operating Temperature

-20~60°C

Storage Temperature

-40℃~80℃, Humidity: ≤85%(Non-condensing)

Certificate Standard

Certificate

CE, RED, UKCA, SAA

Environmental Requirement

Compliant to RoHS 2.0, Reach

Safety Standards

EN61058-1,UL60703-1

EMC Standards

EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479

IP Rating

IP20

Product Class

Class Ⅱ

Other

Wiring

Press-in type terminal block, wiring 0.5-0.75mm2

Installation

Built-in

Package

Bubble bag + Clapboard + Carton(K=A)

Net Weight

71.5±2g

Lifetime

5 years warranty @Ta full load


【Function description】

RON-OFF function

Stand-by Period be set “0s”



R2-step dimming

Stand-by Period be set “+∞”



R3-step dimming

Stand-by Period be set “10s/1min/3min/5min/10min/30min”；“1min/10min“(DIP by setting)



□Daylight harvesting

N/A



RDaylight priority

Stand-by Period be set “+∞”


【Product Information】


SYNC function dimmable motion sensor for LED Batten 0


【Wiring Diagram】


    SYNC function dimmable motion sensor for LED Batten 1

SYNC function dimmable motion sensor for LED Batten 2

Note:The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.

           SYNC:When one of the sensors detects movement, the sensor's SYNC port outputs a high level and transmits

   To other machines in the same group, other machines receive this synchronization signal, which is equivalent to induction triggering into full light, and then set the gear according to each extrinsic code for operation


【Installation Instruction】

  • Screw installation

SYNC function dimmable motion sensor for LED Batten 3 SYNC function dimmable motion sensor for LED Batten 4

  • Cut Size

SYNC function dimmable motion sensor for LED Batten 5


【DIP Switch Setting】


Function

Detection Area

Hold Time



Daylight Sensor



DIP

1

2



3

4



5



Ⅰ

ON

ON

100%

ON

ON

5s

ON

30lux

Ⅱ

ON

-

75%

ON

-

1min

-

disable

Ⅲ

-

ON

50%

-

ON

5min





Ⅳ

-

-

25%

-

-

10min





Function

Stand-by period



Stand-by dim Level



DIP

6

7



8



Ⅰ

ON

ON

0s

ON

10%

Ⅱ

ON

-

1min

-

30%

Ⅲ

-

ON

10min





Ⅳ

-

-

+∞





【Detection Range】


SYNC function dimmable motion sensor for LED Batten 6


【Remote Controller】

SYNC function dimmable motion sensor for LED Batten 7


【Initialization】


After power on, the sensor automatically turns on light to 100% brightness and turns off light in 10seconds. During initialization, sensor is not able to detect movement.


【Default setting】


Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by Period: 0s, Stand-by DIM Level:10%


【Application Notice】


l The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

l Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.

l The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.

l Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.

l Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.

l The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.

l When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.

l Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.

l Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.

l For the new installation environment, it is recommended to test 5pcs samples before installation.
