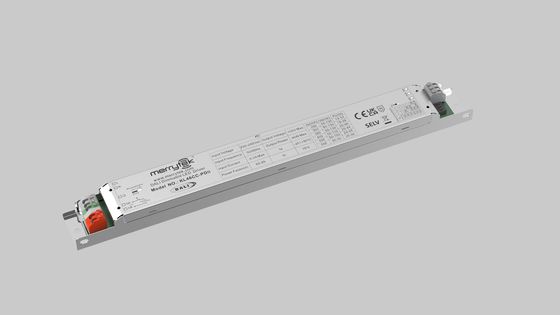

46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty

  • 46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number KL46CC-PDii1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details white box+ Instructions Clapboard Outer Carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 220-240VAC 50Hz /60Hz Power Factor ≥0.95 @230VAC （Full Load）
Stand-by Power ≤0.5W（@230Vac） Efficiency 85%Max. @230VAC （Full Load）
Operating Mode DALI2 Dimming &color Temperature Changing & PUSH Dimming Installation Dimension 284*30*20.5mm
Warranty 5 Years Output Constant Current 250-500mA
Leave a Message
Product Description

46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty





     【Product Feature】

  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Built-in DALI interface DT8
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for a high ambient temperature
  • Push dim with memory function
  • 5-year warranty

【Parameters】

Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Cuttent 0.25A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥0.95 @230VAC (Full load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W(@230Vac)
Efficiency 85%Max. @230VAC (Full load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate the current in the wire)

 type B10 B13 B16 B20 B25 /
Number 20 25 30 40 50 /
type C10 C13 C16 C20 C25 C32
Number 30 43 50 60 80 100
Output Operating mode Constant Current
Load type LED
Ripple requirement (Flickering or flicker-free) Flicker value: less than 2% for the whole dimming range
Start-up time <1s (@230Vac)
No-load output voltage 150VDC Max.
Load output voltage range 50-130VDC
Full load output power 46W Max.
Load output current 250~500mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 2%-100%
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self-recovery function(Can be inquired)
Output short circuit protection Yes, without self-recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety

& EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-101 / 102 / 207 DT6 / 209 DT8
Safety standard EN61347-1 EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class I
Built-in installation 284*30*20.5mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 15 units Max.
Packaging requirement PE bag+white box+Instructions+Clapboard+Outer Carton(K=A)
Weight 200g
Life 5 year @Ta full load
Note: All parameters are tested at an input voltage of 230VAC and a 25 °C environment, unless specified.

【Dimension】



                          46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 0

【Wiring Diagram】



 46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 146W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 2



                            Fig. A DALI Dimming                                                                    Fig.B Push Dimming



【Derating】

46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 3

【Dimming Curve】

46W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 446W DALI DT8 dimmable led power supply with 50-130Vdc output and multiple output current 250-500mA and 5 years warranty 5



【Current Corresponding Voltage】



Current (mA) DIP Pomax(W) Uout(V)
1 2 3
250 - - - 33 50～ 130
300 ON - - 39 50～ 130
350 - ON - 46 50～ 130
400 ON ON - 44 50～ 110
450 ON - ON 45 50～ 100
500 ON ON ON 46 50～ 92



【ON/OFF & Description of Dimming Operation】

A. Short-press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening, or dimming, the dimming range is 2-100%.

C. Color temperature adj:

Step 1, PUSH turns off the lights; Step 2, press and hold PUSH to adjust the color temperature starting from the current brightness; Release PUSH, press and hold PUSH again, and adjust the color temperature in the opposite direction; No operation for 5 seconds, exit color adjustment mode.

D. Memory: PUSH dimming has a dimming memory function.

E. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

F. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



【 Matters Needing Attention】

1) The LED string must be connected to the load before turning on the input power; otherwise, the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
