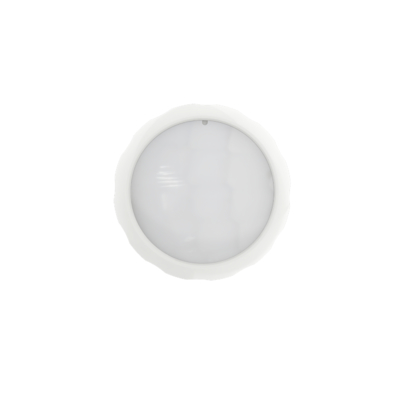

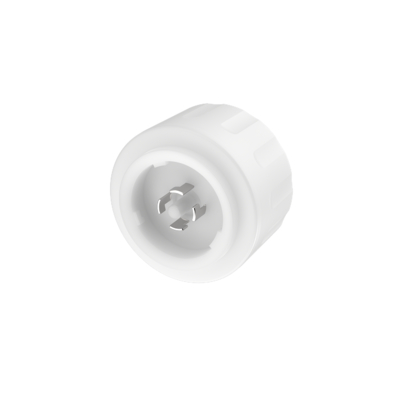

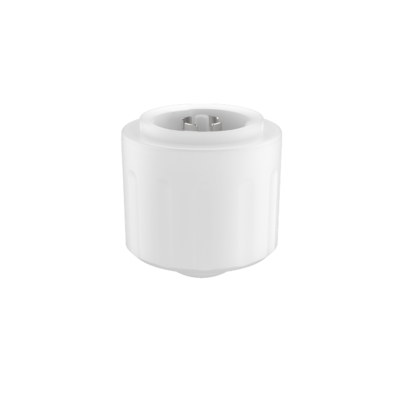

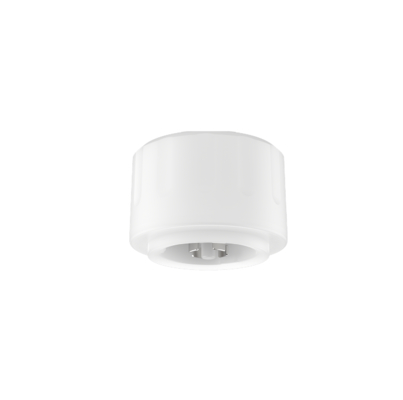

Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use

  • Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use
  • Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use
  • Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use
  • Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MDA079D IR ZB1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Clapboard+box (K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12-24V DC Ripple Voltage <100mVp-p
Output Signal DALI Dimming Signal Mounting Height 10m ( 12m Max )
Working Temperature(Ta) -25~55℃ Certificate CE
Lifetime 5 Years Warranty@Ta(indoor)
Highlight

Casambi DALI motion sensor for warehouse

,

high bay motion sensor 12m range

,

DALI motion sensor with Casambi compatibility
Leave a Message
Product Description
Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use
Product Attributes
Attribute Value
Rated voltage 12-24V DC
Ripple voltage <100mVp-p
Output signal DALI dimming signal
Mounting Height 10m (12m Max)
Working Temperature(Ta) -25~55℃
Certificate CE
Lifetime 5 years warranty@Ta(indoor)
Product Features
  • DALI bus power supply DC12-24V
  • DALI dimming terminal, 3-step or 2-step is optional, detection area adjustable
  • Mini size PIR detection sensor
  • Indoor maximum mounting height is 12m
  • All sensor parameters can be set by Casambi App setting
Technical Parameters
Input
Rated Voltage 12-24V DC
Working Current 35±5mA
Ripple Voltage <100mVp-p
Output
Output Signal DALI dimming signal
Sensor parameters
Detection way PIR
Sensor sensitivity Casambi App setting
Daylight Priority Casambi App setting
Stand-by dim level Casambi App setting
Detection Area(Radius) Ceiling mounting height 12m: r≥4m@0.3m/s, r≥3m@1m/s
Mounting Height 10m (12m Max), see note 1 & 2
Wireless parameters
BLE Module Casambi Bluetooth
Working Frequency 2.402-2.480GHz
Transmitting Power +7dBm(max)
Transmitting Distance Point to point transmit 25m Max
Fixture ID 32022
Environment
Working Temperature(Ta) -25~55℃
Storage Temperature -40℃~80℃, humidity≤85% (Non-condensing)
Certification Standards
Certified CE
Environmental requirements Comply with RoHS 2.0, Reach requirement
IP Rating IP65
Other
Wiring Standard Zhaga Book 18 connector
Installation External
Package Clapboard+box (K=A)
Net Weight 38±3g
Lifetime 5 years warranty@Ta(indoor)
Note 1: When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive.
Note 2: When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
Function Description
Function Setting
ON/OFF function Casambi App setting
2-step dimming function Casambi App setting
3-step dimming function Casambi App setting
Daylight harvesting Casambi App setting
Daylight priority Casambi App setting
Network function Casambi App setting
Product Information
Dimension
Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use 0
Function
Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use 1
Installation
Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use 2
Detection Range
Casambi Dali Motion Sensor For High Bay, 12m Max Mounting Height, Suitable For Warehouse Use 3
Initialization

After switch on power, sensor will be warmed 45-60s then start to work. During initialization, the sensor is not able to detect movement.

Default Setting

Sensitivity: 100%, Hold time:10s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%

Application Notice
  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc.
Important Notes:
When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.

Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.

This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).

When installing in new environment, please install and test at least 5pcs product firstly before mass installation.

PIR Sensor Behavior Notes

PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Pls pay attention to the following matters during actual use:

Possible False Triggering:
  1. When small animals enter the detection range
  2. When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
  3. When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.
Possible Non-Triggering:
  1. When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
  2. The heat source within the detection range hardly moves or moves at high speed.
