Merrytek 4th Generation Tuya Zigbee Wireless Detector Wireless Presence Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Tuya Zigbee presence detector,wireless presence sensor,4th gen motion detector |
||
|---|---|---|---|
Product Description

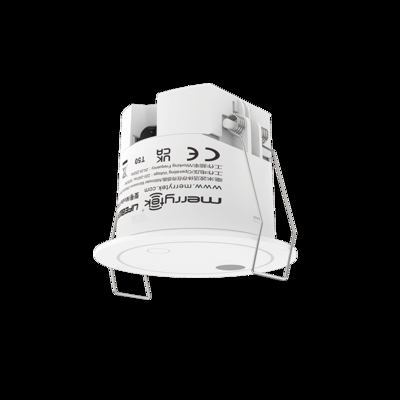

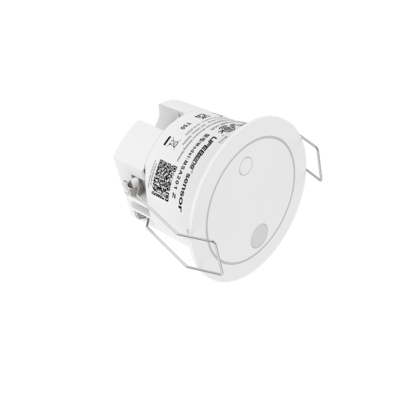

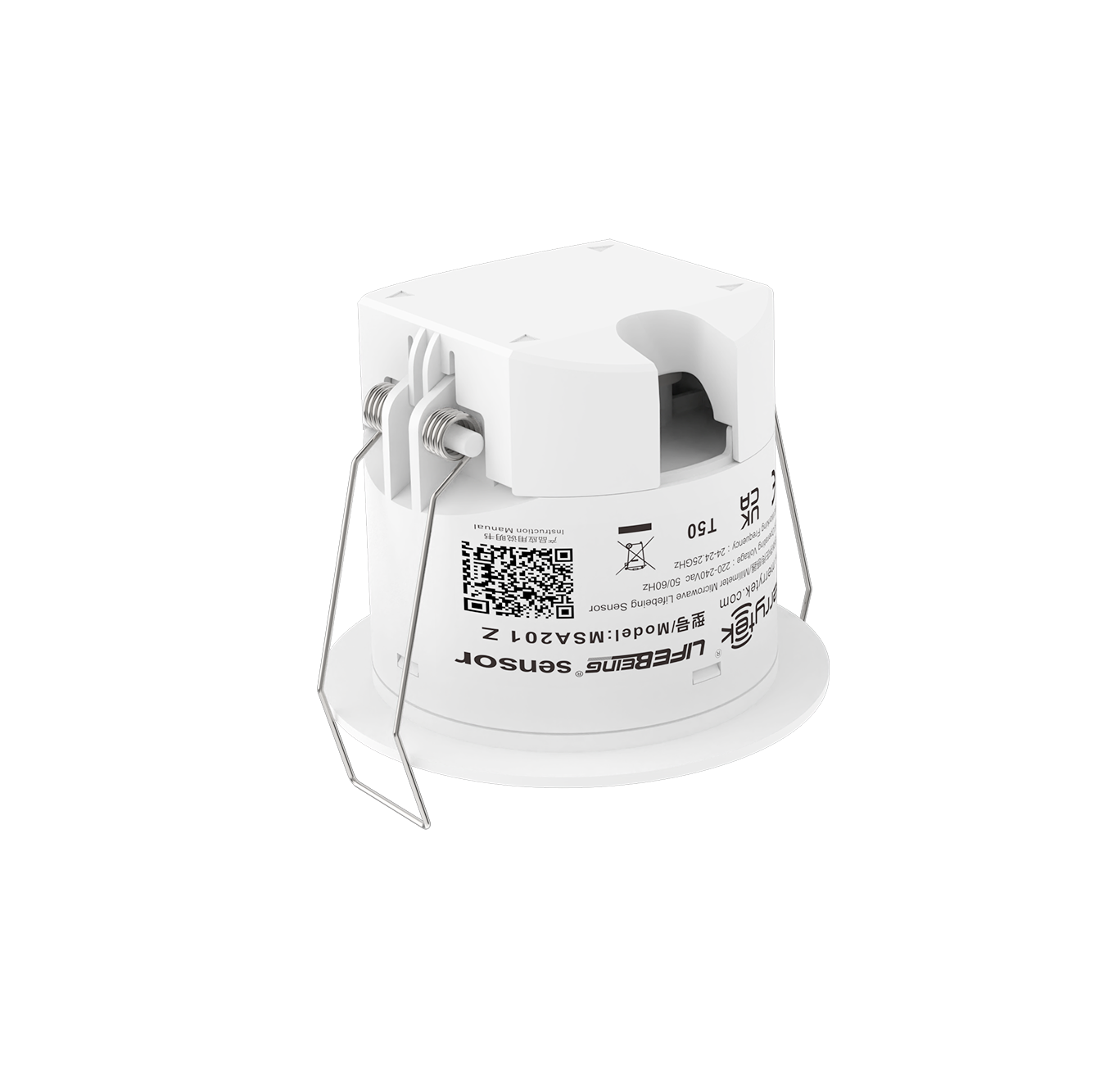

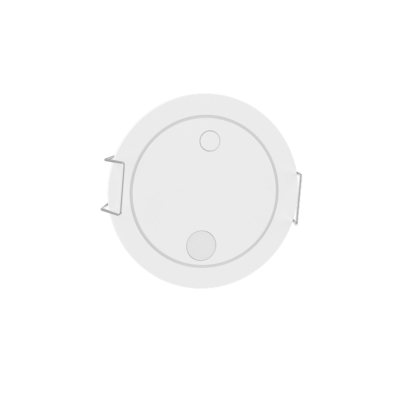

Merrytek 4th Generation Tuya Zigbee Wireless Detector Wireless Presence Detector
MSA201 Z is a 24GHz radar sensor based on Merrytek's patented orthogonal antenna. Its antenna has high gain and a wide detection range. Combined with Merrytek's unique 4th generation human presence detection software algorithm and FMCW modulation, it can accurately detect micro movements brought by humans in almost all indoor spaces and provide fast and accurate front-end sensing input for smart home, smart hotel, smart office, and other scenes.
Technical Parameters
| Input/Output | |
|---|---|
| Input voltage | 220-240Vac 50Hz/60Hz |
| Rated voltage | 220V AC |
| Working Current | 80mA max |
| Working Power | ≤1.5W 230V AC |
| Wireless communication module | |
| Zigbee frequency | 2.4GHz-2.484GHz ZIGBEE Transmitting Frequency: 10dB Receiving Sensitivity: -101±2dBm |
| Sensor Parameter | |
| Radar frequency | 24GHz-24.25GHz ISM band |
| Transmitting Power | 5mW Max. |
| Detection Area | APP setting: 0-4m(0.5m per tapping) |
| Hold Time | APP setting: 3-7200s |
| Daylight change difference | Daylight sensor value will refresh and report when its daylight change reaches what you set. You can set 10-100lux with the TUYA APP |
| Daylight sensor range | 0-1295Lux(our daylight sensor can only report the lighting value near it,this might be different from user's application lighting value) |
| Radius detection range | major/minor/micro movement(3m height installation): 4±0.5m(based on 41㎡ open area test and might change due to different space) |
| Remote control | Available(MH18 remote) |
| Mounting height | 2.5-4.0m typical value: 3m |
| Detecting Angle | 120° |
| Application Environment | |
| Drill hole | Φ55mm |
| Working Temperature | 0℃...+50℃ |
| Storage Temperature | -25℃~+80℃ Humidity:≤85% (non-condensation) |
| Certificate Standard | |
| Certificate | FCC/RED |
| Environmental Requirement | Compliant with RoHS |
| IP Rating | IP20 |
| Guarantee | 5 year(only for product quality problem) |
Note: "N/A" means not available.
Dimension and Function Diagram
Wiring Instruction
Initialization
When powered on, the sensor indicator will turn off after flashing for 10 seconds and will enter a 20-second detection cycle. If presence is detected, then the sensor will report presence and enter hold time calculation; if absence is detected, then the sensor will report absence. During initialization, the sensor will not detect a moving signal, and you can use our MH18 remote or TUYA APP to adjust the detection area, hold time, daylight sensor, etc, parameters.
Factory Setting
Detection Area: 4m; Hold Time: 30s; Indicator light: open; Sensitivity: Medium sensitivity
Detection Radiation
Detection Signal
The product detects human moving, minor moving, and presence signals, and realizes the detection of human-existing/no-human in a non-sleep state. The following is a description of the moving, minor moving, and presence signals:
- Major movement: detect the human significant moving (walking) in the detection area.
- Minor movement: detect the human slight movement in the detection area, such as leaning forward, leaning forwarder and back, swinging limbs, shaking head, typing, playing with mobile phones, and so on.
- Micro movement: detect human abdominal and thoracic expansion behaviors caused by breathing, but not detect the moving signal and minor moving signal.
APP UI Manual
Status:
1. Absence: nobody within the detection area
2. Presence: somebody within the detection area
3. Sensor disable: When the sensor is disabled, it'll report this status
1. Absence: nobody within the detection area
2. Presence: somebody within the detection area
3. Sensor disable: When the sensor is disabled, it'll report this status
Status report logic:
1. Presence info will report to Tuya Cloud when somebody enters the detection area which was absent
2. Absence info will ONLY report to Tuya Cloud when nobody is detected in the detection area AND the hold time runs away
1. Presence info will report to Tuya Cloud when somebody enters the detection area which was absent
2. Absence info will ONLY report to Tuya Cloud when nobody is detected in the detection area AND the hold time runs away
Parameter setting:
It includes all our sensors' parameter settings, you can set your ideal detection area, and eliminate interference by setting proper sensor parameters
It includes all our sensors' parameter settings, you can set your ideal detection area, and eliminate interference by setting proper sensor parameters
Daylight sensor setting:
It includes the daylight sensor's parameter setting
It includes the daylight sensor's parameter setting
Sensor log:
It records the presence/absence history during a day
It records the presence/absence history during a day
Find me
It reports the current environment lux, and the value will only change when the lux difference hits the value you set
It reports the current environment lux, and the value will only change when the lux difference hits the value you set
