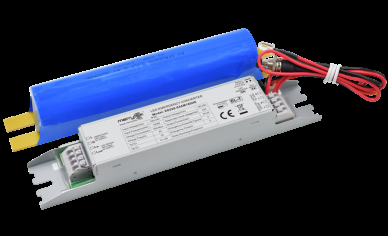

Self-check 2W LED Conversion Kits with 3 Hours Duration Time and 80-200Vdc Output
Description
  • Constant power output LED emergency power supply with a wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • With battery management
  • Manual check and self-check selection
Parameters
Charge Part KE028 02AM180HE 03AM180HE 04AM180HE 05AM180HE
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak )@230Vac(Cold start at full load )
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 200mA 200mA 350mA 350mA
Battery charging time 24 hours Max.
Emergency Part
Operating mode Emergency mode
Load type LED
Emergency power 2W | 2.5W | 4W | 5W
Emergency time 3hours
Load output current 25-10mA | 31-12mA | 50-20mA | 57-23mA
Load output voltage 80-200Vdc
Battery
LifePO4 (The battery capacity meets the emergency time at 25℃) 6.4V 1.8Ah | 6.4V 1.8Ah | 6.4V 3.6Ah | 6.4V 3.6Ah
Battery warranty Warranty 5 years @5~60℃.
Exception Driver Requirements
Surge current 8A
Input current 3A Max.
Output current 2A Max.
LED Indication (Manual test)
Status Indicator
Charging Green light
Fault Green light off
Emergency Function Test
Manual test Default
Auto test Settable
Auto Testing
Fault/test / Status Reason Charge Indicator Status
The battery is fully charged and operational Standard daily use solid green
Battery Charging Initial Charge/Battery Top Up Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off
Duration test fault Automatic test failed Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on - 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty solid red
Emergency protection
Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes
Operating Environment
Operating temperature/humidity 0℃…+50℃, Humidity: 20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃
Safety & EMC
Withstand voltage 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-)
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant with RoHS
Certification CE
Others
Input/output(terminal/wiring) specification Press terminal, wire diameter: 0.5-0.75mm2
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 146*30*22.5mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight 75g (driver)
Lifespan 5 Year @Ta
Notes: All parameters are tested on the input voltage 230Vac, environment temperature 25℃, unless otherwise specified.
Dimension (Unit: mm)
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 0
Battery Dimension (Unit: mm)
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 1
Fig. A
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 2
Fig. B
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 3
Fig. C
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 4
Fig. D
Wiring Diagram
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 5
OR
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 6
Manual and Automatic Test Set Exchange
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 7
Wire Preparation
Self-check 2W LED conversion kits with 3 hours duration time and 80-200Vdc output 8
  1. Solid or Stranded wire type: 0.5 -0.75mm2
  2. To access or remove the wires from the terminals, use a screwdriver to push the buttons down
Manual Test & Operation Instructions
  1. Before installation, set Pin short: Manual Test.
  2. Connect the wire according to the wiring diagram.
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light turns green, emergency power supply is normal charging. Turn off Switch S1, and the load lamp turns off.
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on.
Automatic Test & Operation Instructions
  1. Before installation, set Pin open: Automatic Test.
  2. Connect the wire according to the wiring diagram. Remove the test switch on the LED Emergency Driver.
  3. L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and Re-time.
Battery Application Notice
  1. The battery should be recharged and discharged semiannually in normal use conditions.
  2. Do not connect to the circuit when the battery is not in use to prevent over-discharge of the battery due to self-consumption of the circuit board.
  3. Please keep the battery away from the heat source when installing and using it, and only allow it to be used in a certain working temperature range.
  4. The battery should be stored in a cool and dry environment.
  5. After long-term storage, the battery is cycled every 12 months as required.
  6. AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and Re-time.
