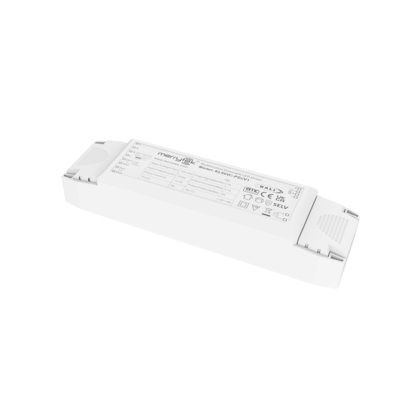

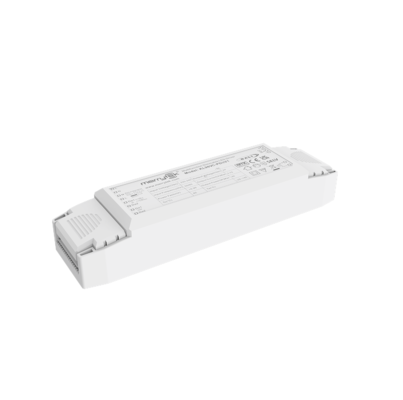

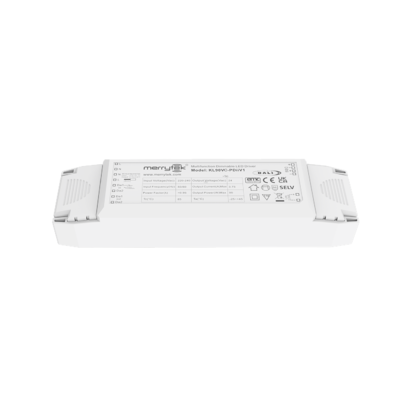

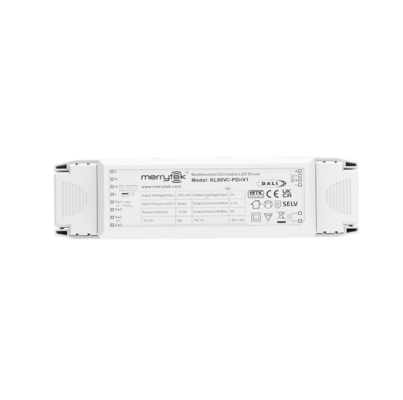

90W constant voltage 12V DALI DT8 dimmable driver for led strip lights

  • 90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
  • 90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
  • 90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
  • 90W constant voltage 12V DALI DT8 dimmable driver for led strip lights
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number KL90VC-PDiiV
Minimum Order Quantity 100
Price Negotiation
Packaging Details White box + Carton, 50pcs/CTN
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Input Voltage 220-240Vac 50Hz /60Hz DC Input Voltage Range 200-240Vdc
Operating Mode Constant Current Control Method Constant Voltage 12V DALI DT8 Dimmable Driver For Led Strip Lights
Power Factor ≥0.99 Efficiency 91%
Constant Voltage 12Vdc Dimension 202x58x30mm
IP Rating IP20 Warranty 5 Years
Highlight

90W DALI DT8 dimmable LED driver

,

12V constant voltage LED strip driver

,

DALI2.0 dimmable power supply
Leave a Message
Product Description
90W Constant Voltage 12V DALI DT8 Dimmable Driver for LED Strip Lights
Product Description
High-performance 90W constant voltage driver with advanced dimming capabilities for LED strip lighting applications.
  • Flicker-free for the whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with a push button
  • Secondary dimming with 0-10V dimmer and potentiometer
  • Built-in DALI interface DT8
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating the current for high ambient temperature
  • Push dim with memory function
  • 5-year warranty
Technical Parameters
Series KL90VC-PDiiV
Input
Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.46A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 91%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm²
Output
Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start-up time <1s (@230Vac)
Forward voltage 12V
Output current 7.5A
Max. output voltage (no-load) 20V
Full load output power 90W Max.
Minimum load 9W
Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm²
Dimensions
90W constant voltage 12V DALI DT8 dimmable driver for led strip lights 0
Wiring Diagrams
90W constant voltage 12V DALI DT8 dimmable driver for led strip lights 1
DALI Dimming
90W constant voltage 12V DALI DT8 dimmable driver for led strip lights 2
Push Dimming
90W constant voltage 12V DALI DT8 dimmable driver for led strip lights 3
Operation Instructions
  • ON/OFF: Short-press the PUSH switch (0.1s-1s) to turn on/off
  • Dimming: Press and hold (1s-8s) to adjust brightness (2-100%)
  • Color temperature adjustment: Turn off lights, then press and hold to adjust color temperature
  • Memory function: Remembers last dimming setting
  • DALI dimming: Connect to DALI system for 0-100% dimming
Note: All parameters are tested at the input voltage of 230VAC and a 25-degree environment unless specified.
