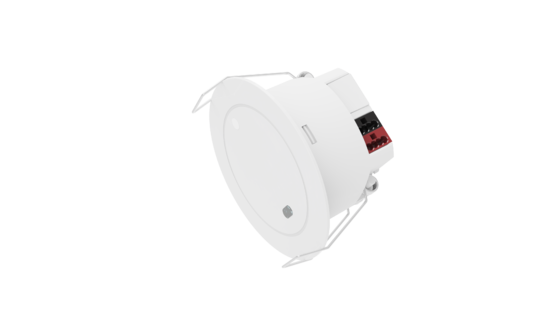

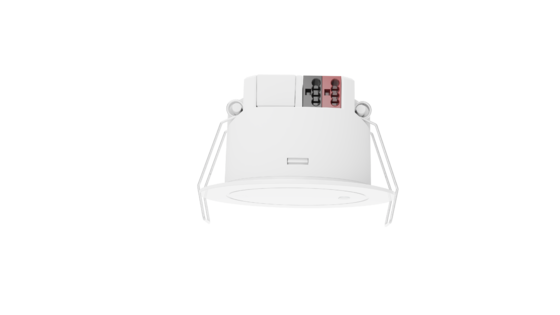

KNX approved 5.8GHz high frequency detector ON/OFF motion detector with 5-year warranty
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MSA237K 99 D |
| Minimum Order Quantity | 100PCS |
| Price | Negotiation |
| Packaging Details | White box+ White box tags+ Clapboard+ Carton(K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Voltage | 21-30Vdc | Working Mode | KNX Intelligent Communication |
|---|---|---|---|
| Mounting Height | 2-4m | Life Time | 5 Years Warranty@Ta 230V Full Load |
| Working Power | ≤1W | Function | High Frequency Detector |
| KNX Certified | Yes | Mounting | Flush Mounting |
| Highlight | KNX approved 5.8GHz motion detector,high frequency presence detector sensor,ON/OFF motion detector with warranty |
||
Product Description
KNX Approved 5.8GHz High Frequency Detector ON/OFF Motion Detector with 5-Year Warranty
Parameters
| Input/Output | |
|---|---|
| KNX bus voltage | 21-30V DC |
| KNX bus current | 8±1mA |
| Sensor Parameter | |
| Working Frequency | 5.8GHz±75MHz |
| Transmitting Power | 5mW Max |
| Detection Area | ETS setting: 1%-100% |
| Hold Time | ETS setting:3S-7200S |
| Detecting Range (100% detection area, radius) | Major movement(3m height installation): 3.5±0.5m(based on 41㎡ open area test and might change due to different space and different people) |
| Remote Control | Support |
| Mounting Height | 2-4m, typical value: 3m |
| 3db Beam Angle | 90°(XZ field) 95° (YZ field) |
| Application environment | |
| Flush-mounted Hole Size | Φ50-55mm |
| Working Temperature | 0℃...+50℃ |
| Storage Temperature | -40℃...80℃, Humidity: ≤85%(non-condensing) |
| Certificate Standard | |
| Certificate | FCC/RED |
| Environmental Requirement | Compliant with RoHS |
| IP Rating | IP20 |
| Guarantee | 3 year(only for product quality problem under indoor application) |
N/A means not available
Product Function
Dimension
Wiring
Wiring layout suggestion:
- KNX bus wiring suggestion hand in hand to the end, star or tree wiring is not recommended to ensure the stability of signal transmission.
- KNX bus wiring recommends KNX standard EIB shielded wire or Category 6 network cable; the length of the bus wiring is recommended not to exceed 400 meters, and the number of sensors connected to a bus is recommended not to exceed 12.
- The number of sensors connected to a bus needs to fully consider the current load capacity of the power supply, which means the sum of the currents of all KNX devices (including sensors) shall not be greater than the load current of the KNX power supply.
Detection Range
Initialization
After routing the physical addresses and setting the channel parameters, follow these steps:
- Connect Bus interface
- Set Bus and auxiliary power on (note: please make sure that the product has an auxiliary power supply, otherwise the device may not work properly)
- Press the programming switch of the product, and the LED light will turn red
- Use the bus interface to download the physical address through the ETS software. The programming LED light is off to indicate that the physical address download is successfully completed
- Download the application after setting the required application parameters
- After downloading the application, the product goes into initialization. During initialization, the detection function is disabled. After 20S, the initialization is completed, and the product works normally
Note: Please use the latest version of ETS 5 or 5.7.2. Please obtain the ETS engineering configuration file of this sensor from our sales staff.
Factory Default Setting
Detection Area: 100% Hold Time: 5S Indicator Light: open
Remote Control MH18
Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference.
We will reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense. At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
