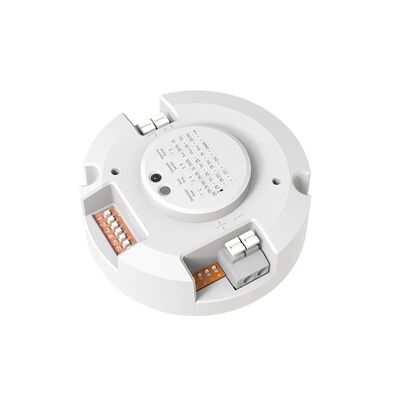

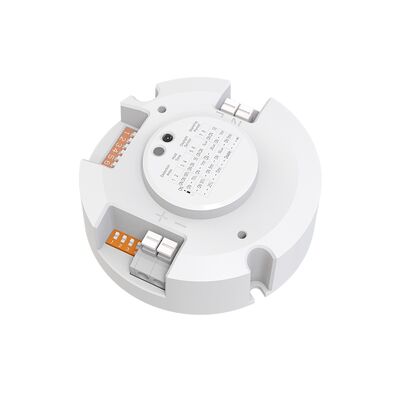

16W Sensor DIM LED Driver With 300-900mA Current Output Daylight Priority Function
Product Features
  • Conforms to ERP standard with micro-power consumption
  • 5.8GHz ISM band, can be batch RED certified
  • Isolated, flicker-free design with driver and sensor integrated
  • Corridor function and light priority function for various applications
  • Compact size for easy installation inside lighting fixtures
  • All parameters adjustable via DIP switch
Technical Specifications
Input Parameters
Voltage range 220-240V AC, 50Hz/60Hz
Input current ≤0.11A @ 230VAC
Inrush current ≤15A (100us half-current) @230V AC
THD ≤20%, 230VAC/Max Load
Power factor ≥0.90, 230VAC/Max Load
Stand-by power ≤0.5W
Working efficiency ≥82%, @ 230V AC Max Load
Lightning surge L/N:1KV
Output Parameters
Working model CC
Type of load LED
Full load power 16W Max
Flicker ripple Less than 2%
No-load output voltage 60VDC Max
Load current 300mA/400mA/500mA/600mA/700mA/800mA/900mA
Load output voltage range 300mA (9-40V), 400mA (9-40V), 500mA (9-32V), 600mA (9-27V), 700mA (9-23V), 800mA (9-20V), 900mA (9-18V)
Constant current accuracy ±5% @230VAC
Sensor Parameters
Operating frequency 5.8GHz ±75MHz, ISM band
Transmitting power 1mW
Detection Area 25%/50%/75%/100%
Hold Time 5S/1min/5min/10min
Stand-by Period 0S/1min/10min/+∞
Daylight Sensor Parameters
Daylight threshold 5Lux/25Lux/50Lux/Disable
Daylight priority open/close Open: 5Lux/25Lux/50Lux | Close: 50Lux/100Lux/150Lux
Stand-by DIM Level 15%
Detecting radius (sensitivity: 100%) Ceiling mounting 3m: 0.3m/S ≥4m, 1m/S ≥2.5m
Wall mounting 2m: 0.3m/S ≥10m, 1m/S ≥5m
Mounting Height 3m Typical Value (6m Max)
3db field angle 90°@Xz flat, 95°@Yz flat
Protection & Environmental Specifications
Over voltage protection Yes, self-recovery
No-load protection Yes, self-recovery
Short-circuit protection Yes, self-recovery
Operating temperature -25…+50℃
Maximum temperature (Tc) 75℃
Storage temperature/humidity -40℃…+80℃ Humidity: 85%
Withstand voltage 3750Vac 5mA 60S (input "L N" to output SEC+ SEC-)
Certifications & Standards
Safety standards (LVD) EN61347-1, EN61347-2-13
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Environmental requirement Compliant to RoHS
Certificate CE RED
IP Rating IP20
Protection class Class II
Physical Specifications
Wiring method Press terminal, wire diameter: 0.5-1.5mm²
Installation Built-in
Installation size Ф73mm × H23mm
Package PE bag clapboard, carton (K=A)
Net weight 78±3g
Lifetime 5 years warranty @Ta 230V full load
The given values of detecting parameter is typical measured by 165cm high testers in an indoor open environment.
Operating Functions

On/OFF Function: Setting "stand-by period" to "0s", with other parameters adjusted according to practical applications.

300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 0

3-step Dimming Function: Setting stand-by period to "30s/10min", with other parameters adjusted according to practical applications.

300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 1

Daylight Priority Function: Setting stand-by period to "+∞", with other parameters adjusted according to practical applications.

300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 2
Dimensions
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 3
Wiring Diagram
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 4
Internal Structure
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 5
Cut-out Dimensions
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 6

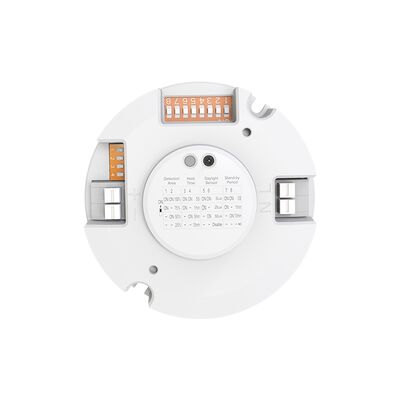

DIP Switch Settings
Detection Area
Switch 1 Switch 2 Area
ON ON 100%
ON - 75%
- ON 50%
- - 25%
Hold Time
Switch 3 Switch 4 Time
ON ON 5S
ON - 1min
- ON 5min
- - 10min
Daylight Sensor
Switch 5 Switch 6 Daylight threshold Open/Close
ON ON 5Lux 5Lux/50Lux
ON - 25Lux 25Lux/100Lux
- ON 50Lux 50Lux/150Lux
- - Disable Disable
Realizing daylight priority function when setting "stand-by period" to "+∞"
Stand-by Period
Switch 7 Switch 8 Period
ON ON 0S
ON - 1min
- ON 10min
- - +∞
Output Current
Output current Output voltage Switch 1 Switch 2 Switch 3 Switch 4
300mA 9-40V - - - -
400mA 9-40V - - - ON
500mA 9-32V - - ON ON
600mA 9-27V - ON - ON
700mA 9-23V - ON ON ON
800mA 9-20V ON ON - ON
900mA 9-18V ON ON ON ON
Radiation Pattern
Ceiling Mounted Height: 3m Sensitivity: 100%/75%/50%/25%
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 7
Normal moving (Speed: 1m/s)
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 8
Slow moving (Speed 0.3m/s) - Note: There is no detection data at 25% sensitivity, 3m mounted height
Ceiling Mounted Height: 6m Sensitivity: 100%/75%
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 9
Normal moving (Speed: 1m/s)
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 10
Slow moving (Speed 0.3m/s) - Note: There is no detection data at 50%/25% sensitivity, 6m mounted height
Wall Mounted Height: 2m Sensitivity: 100%/75%/50%/25%
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 11
Normal moving (Speed: 1m/s)
300-900mA Current Output 16W Sensor DIM LED Driver For Ceiling Light, Daylight Priority Function 12
Slow moving (Speed 0.3m/s)
Initialization

When powered on, the product automatically turns on light at 100% brightness. After 10 seconds, it turns off the light. During initialization, the product is not able to detect moving signals.

Factory Settings

Sensitivity: 100%; Hold Time: 5S; Stand-by period: 0S; Daylight Sensor: Disable.

Application Guidelines
  • Installation should be performed by a professional electrician. Turn off power before installing, wiring, or changing DIP switch settings.
  • Microwave sensors penetrate plastic and wooden objects well, but avoid metal accessories, metal shells, and glass shells near the antenna as they affect transmission and reception.
  • Install microwave sensors at least 2m away from switches, routers, and other wireless devices to avoid radio interference (5G WIFI requires more than 2m distance).
  • Keep the antenna surface away from input AC and output DC to avoid signal interference.
  • Avoid installing near vibration equipment or moving objects, as vibration signals may trigger false detection. Keep away from large metal equipment, ventilation pipes, air conditioning outlets, exhaust vents, and smoke exhaust machines. Pets passing through may trigger the sensor.
  • Suitable for indoor installation. For semi-outdoor or outdoor use, wind and rain may cause false triggers. In metal fixtures or narrow environments, reduce sensitivity or contact manufacturer.
  • Wall mounting significantly increases detection distance - reduce sensitivity or contact manufacturer for support.
  • Product specifications may change without prior notice due to continuous improvements.
  • Sensitivity area depends on object movement speed, object size, mounting height, mounting angle, working environment, and reflecting materials.
  • Daylight sensor values are measured in sunny environments without shadows and with ambient light diffuse reflection. Actual illuminance values may vary by environment, time, season, and climate.
