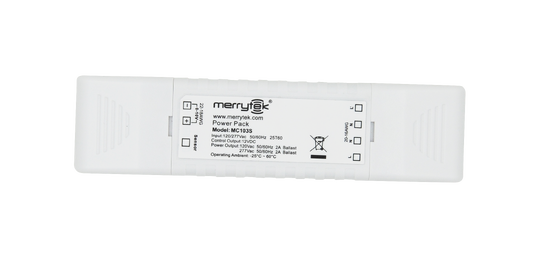

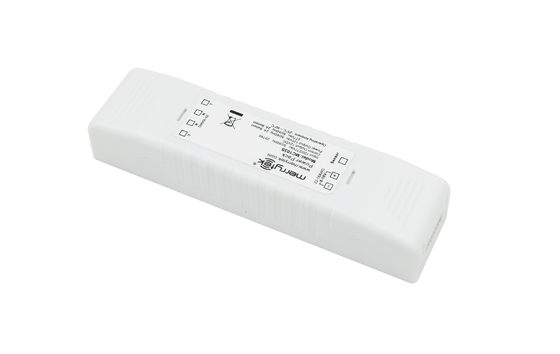

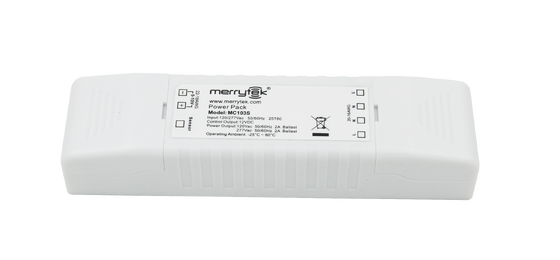

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC103S 1 |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | Bubble bag+Clapboard + Carton(K=A) |
| Delivery Time | 1, Sample and small order: within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 220-240VAC 50/60Hz | Stand-by Power | ≤1W |
|---|---|---|---|
| Auxiliary Output | 12VDC 100mA(Max) | Working Mode | PWM/0-10V/ ON/OFF |
| IP Rating | IP20 | Lifetime | 5 Years Warranty @Ta 230V Full Load |
| Highlight | 0-10V dimmable LED driver,PWM dimmable LED driver 100mA,DC sensor compatible LED driver |
||
Product Description
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Product Overview
This 0-10V/PWM dimmable LED driver provides 12VDC auxiliary power for DC sensors with maximum 100mA current. Designed to work with Merrytek DC sensors, it enables 0/1-10V dimming and ON-OFF functionality.
Key Features
- 12VDC auxiliary power supply for DC sensor, maximum 100mA current
- 220-240VAC input
- Compatible with Merrytek DC sensors for 0/1-10V dimming and ON-OFF functionality
Technical Specifications
| Input | |
|---|---|
| Rated Voltage | 220-240VAC 50/60Hz |
| Stand-by Power | ≤1W |
| Surge Test | 1KV(L/N,EN61000-4-5) |
| Output | |
| AUG Input | 5PWM / 0-10VDC |
| AUG Output | 12VDC 100mA(Max) |
| AC Load Capacity | 400W@230Vac(Inductive Load), 800W @230Vac(Resistive Load) |
| AC Max. Surge Capacity | 30A(@ 50% Ipeak, twidth 500us @230Vac full load & start at cold load.) 60A(@ 50% Ipeak, twidth 200us @230Vac full load & start at cold load.) |
| Interface | |
| Interface | 0/1-10V dimming port |
| Environment | |
| Operating Temperature | -25~60°C |
| Storage Temperature | -40℃~80℃, Humidity: ≤85%(Non-condensing) |
| Certifications & Standards | |
| Certificate | CE |
| Environmental Requirement | Compliant to RoHS 2.0, Reach |
| Safety standards | EN61058-1-2, EN61058-1 |
| EMC standards | EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440 |
| IP Rating | IP20 |
| Protection Class | Class II |
| Other Specifications | |
| Wiring | Press-in Type Terminals, wire diameter:0.75-1.5mm² & 3 pin 2.0mm fast connector |
| Installation | Built-in |
| Package | Bubble bag+Clapboard + Carton(K=A) |
| Net Weight | 65±5g |
| Lifetime | 5 years warranty @Ta 230V full load |
Dimensions
Wiring Example with Merrytek DC Sensor
Note: This product is designed to connect to one load only.
Installation Notice
The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
