1x10w Push 1-10v Led Dimmer Switch ML10C- PV1For 700mA Output 6-14Vdc

  • 1x10w Push 1-10v Led Dimmer Switch ML10C- PV1For 700mA Output 6-14Vdc
Place of Origin China
Brand Name Merrytek
Certification SEMKO / CE/ RoHS
Model Number ML10C-PV1
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union, PayPal
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 10w 1-10V & Push Dimmable Led Driver Input Voltage 220-240Vac
Dimming Mode 1-10V,push Dim Output Current 700mA
Output Voltage 3-15Vdc Dimming Range 2％~100％
Life Time 50,000 Hours IP Rating IP 20
Working Temperature -25℃-50℃ Protection Class IP20
High Light

led light driver

,

700ma dimmable led driver

,

1x10w Push Led Dimmer Switch
Leave a Message
Product Description

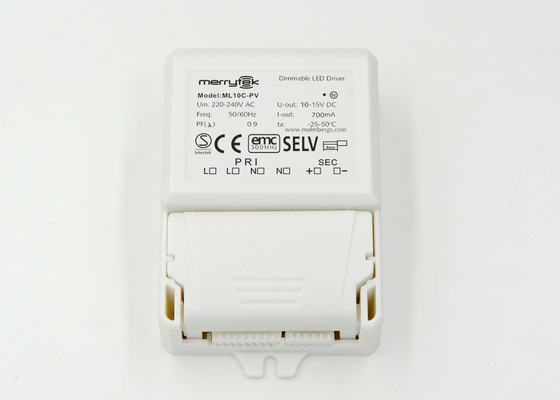

1x10w Push 1-10v led dimmer switch ML10C- PV1For 700mA Output 6-14Vdc





Description



1,  Adapt the Flicker-free programming,flicker rate less than 2% tested by professional equipment

2, Output constant current 700mA,currency rate ±5%

3, Two circuit design AC-DC-DC, no flicckering in dimming 2%-100%

4,  Dimmable LED driver with PUSH DIM, and 1-10V dimming interface.

5,  Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

6,  Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

7,  Maximum length of the cable, from switch to last driver is 20m.

8,  Press-in terminals in primary and secondary side, easy assembly.

9,  Protection: Short circuit / Over voltage / Over temperature.

10,  Long life span 50,000h, 5 years guaranty.

11,  It can matches with Merrytek MS01(daylight sessor) and MC003V( microwave motion sensor ) to achieve auto on-off, dimming and daylight funcion



1x10w Push 1-10v Led Dimmer Switch ML10C- PV1For 700mA Output 6-14Vdc 0






Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.06A max

Power factor

≥0.90

Efficiency(Note1)

≥82%

Stand-by Power (Note2)

≤0.5W







OUTPUT



Output current/voltage

 and load

700mA 3-15Vdc 10.5w max

Output load range

1x10.5W max

Current accuracy

±5%

Dimming mode

1-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~85%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

Protection type; auto rest

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13 EN60598-1 EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE, RoHS

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min

OUT-FG:500VAC/5mA/1min



NOTE

Note:

1, Power factor and efficiency is detected at 230Vac input and full load.

2, Standby power is detected at 230Vac input and switch off led load by push button.



Dimming Operation:

1.Push button switch for dimming (see wiring diagram, Fig A)

  • ON/OFF: Short push (120ms ~ 1sec) on the switch
  • Stepless dimming: Long push (＞1sec) on the switch. With every other long push, the light level goes the opposite direction.
  • Synchronization: No need additional synchrony wire in larger installation, up to 15pcs drivers when connected to the same switch.

2. 1-10V dimming (see wiring diagram, Fig B)

The driver supports any active 1-10V dimmer. When the dimming signal is less than 0.8V ~ 1V or short the dimming wires, the output of LED driver could be completely switch off, see Fig B



Wiring Diagram:







Applications:



For downlights in lobby,corridor
