Product Name 10w 1-10V & Push Dimmable Led Driver Input Voltage 220-240Vac
Dimming Mode 1-10V,push Dim Output Current 350mA
Output Voltage 6-30Vdc Dimming Range 2%~100%
Life Time 50,000 Hours IP Rating IP 20
Working Temperature -25℃-50℃ Isolation Class Class Ⅱ
High Light

1-10v led dimmer

,

700ma dimmable led driver

,

High Efficiency LED Dimmer Switch

Leave a Message
Product Description





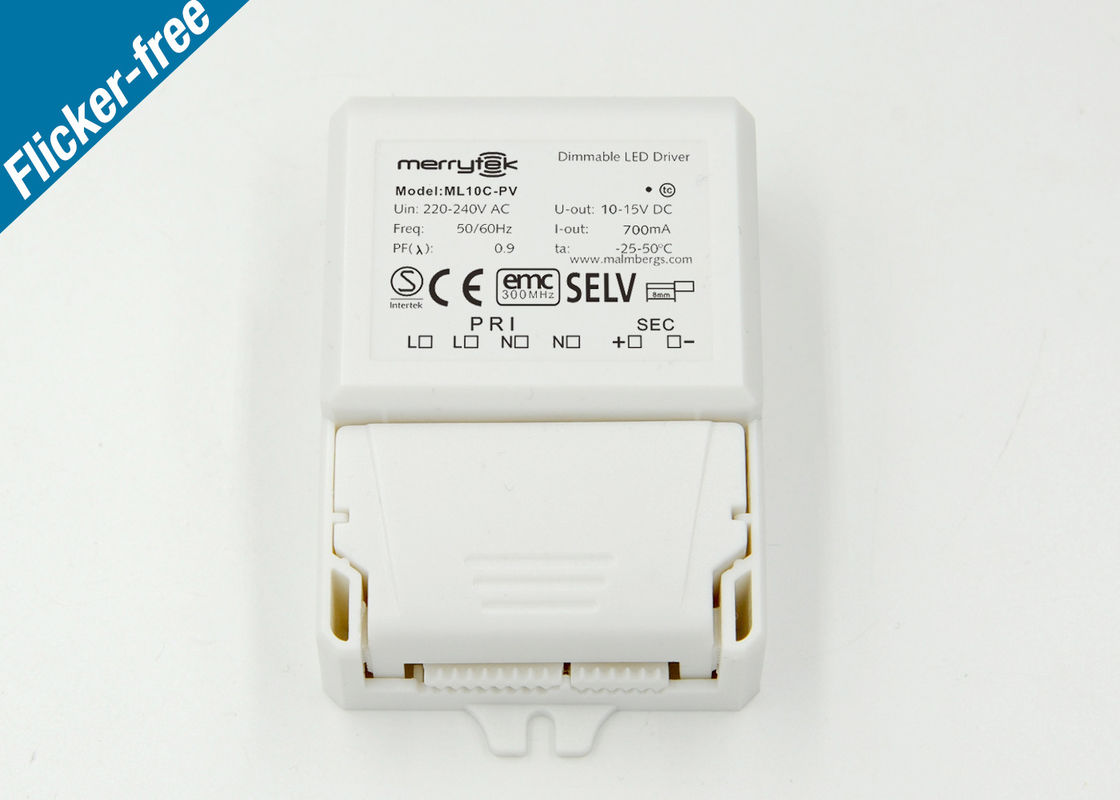

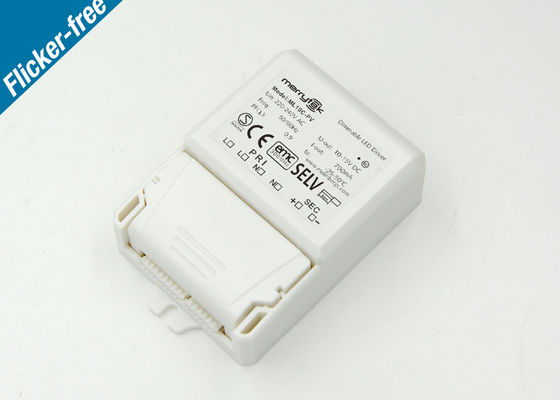

ML10C-PV  1x10w 1-10V and push dimmable led driver 350mA 6-30Vdc flicker-free version



Description



1, Flicker-free version,flicker rate less than 2% tested by professional equipment

2, Two circuit design AC-DC-DC, no flicckering in dimming 2%-100%

3. Output constant current 350mA,currency rate ±5%

4, Dimmable LED driver with PUSH DIM, and 1-10V dimming interface.

5, Memory function: The driver has built-in permanent memory against power failure. Lights can return to previous dimming level when switch off and on again, even at mains restores.

6, Synchronization: thanks to the MCU programme, up to 50pcs drivers should be controlled by the same switch. This means there is no need for any additional synchrony wire in larger installations, where many drivers should be controlled by one switch.

7, Maximum length of the cable, from switch to last driver is 20m.

8, Press-in terminals in primary and secondary side, easy assembly.

9, Protection: Short circuit / Over voltage / Over temperature.

10, Long life span 50,000h, 5 years guaranty.

11. It can matches with Merrytek MS01(daylight sessor) and MC003V( microwave motion sensor ) to achieve auto on-off, dimming and daylight funcion



1x10w Push / 1-10v LED Dimmer Switch / High Efficiency LED Driver 0-10V 0






Specifications







INPUT



Input voltage

220-240Vac

Input frequency

50-60Hz

Input current

0.06A max

Power factor

≥0.90

Efficiency(Note1)

≥76%

Stand-by power (Note 2)

≤0.5W







OUTPUT



Output current/voltage

 and load

350mA 6-30Vdc 10.5w max

Output load range

1x10.5W max

Current accuracy

±5%

Dimming mode

0-10V, PUSH





ENVIRONMENT



Working temp.(Ta)

-20~50℃

Surface temp.(Tc)

85℃max

Working humidity

20~85%RH non-condensing

Storage temp.

-40~80℃

Life time

≥50000hours



PROTECTION



Isolation class

Class II, SELV

Protection class

IP20

Short circuit

Protection type; auto rest

Over voltage

300Vac, 2H

Over temperature

Protection type; auto rest





SAFETY&EMC



Safety

EN61347-1 EN61347-2-13 EN60598-1 EN60598-2-6

EMC

EN55015, EN61000-3-2ClassC

EN61000-3-3, EN61547

Approvals

SEMKO, CE, RoHS

Withstand voltage

IN-OUT:3.75KVAC/5mA/1min



NOTE

1, Power factor and efficiency is detected at 230Vac input and full load.

2, Stand-by power is detected at 230Vac input and switch off LED load by push button.

Dimming Operation:

1.Push button switch for dimming (see wiring diagram, Fig A)

  • ON/OFF: Short push (120ms ~ 1sec) on the switch
  • Stepless dimming: Long push (>1sec) on the switch. With every other long push, the light level goes the opposite direction.
  • Synchronization: No need additional synchrony wire in larger installation, up to 15pcs drivers when connected to the same switch.



2.1-10V dimming (see wiring diagram, Fig B)

The driver supports any active 1-10V dimmer. When the dimming signal is less than 0.8V ~ 1V or short the dimming wires, the output of LED driver could be completely switch off, see Fig B





Wiring Scheme:



Applications:



For downlights in lobby,corridor
