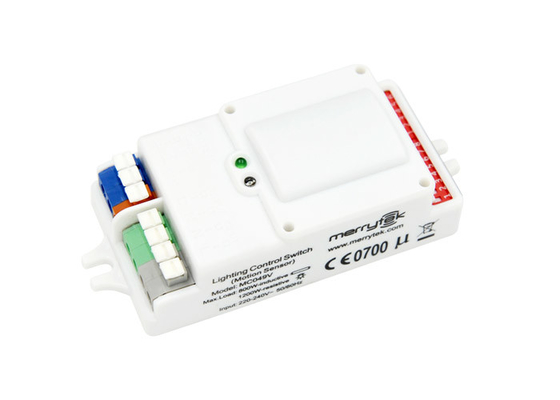

Enhanced Detection Zone Microwave Light Sensor With Corridor Dimming Function
| Place of Origin | China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE & R&TTE |
| Model Number | MC049V |
| Minimum Order Quantity | 300pcs |
| Price | Negotiation |
| Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T or western Union |
| Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | 220-240Vac, 50/60Hz | Product Name | Clustor Control Motion Sensor |
|---|---|---|---|
| Detection Zone | Max(D×H):16m×15m | Function | 2 Step /3 Step Dimming/on Off Function |
| IP Rating | IP20 | Rated Load | 800w(Inductive) 1200w(Resistive) |
| HF System | 5.8GHz ±75MHz, ISM Wave Band | Size | 93.5x45x 28.5mm |
| Highlight | indoor light motion sensor,high frequency sensor,Enhanced Detection Zone Microwave Light Sensor |
||
Product Description
MC049V Enhanced Detection Zone Microwave Motion 800w 1-10v Corridor Dimming Function with CE Approval
Description:
MC049V is enhanced detection zone sensor, As it uses the third generation Merrytek technology, normal 5.8GHz microwave module can easily reach high mounting high up to 15m and long detection area 10m in radius. And there are two different installation way, surface mounting and based on mounting,
The MC049V innovative and active motion detectors with HF system 5.8GHz. Motion can be detected through plastic, glass and thin non-metal materials.
The sensors allow energy saving without compromising comfort. When used in combination with 1-10V dimmable LED drivers or ballasts, they can achieve 3-step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
Also, the 1-10V interface in the sensors can match up with Merrytek stand-alone daylight sensor MS01, and implement daylight harvesting, means the lighting system has automated controls that either turn off or dim artificial light in response to the available daylight in the space.
Feature:
1. Automatic dimming when used in combination with 1-10V dimmable LED drivers or ballasts.
2. Built-in adjustable daylight sensor.
3. 1-10V interface can match up with Merrytek standalone daylight sensor MS01 and achieve daylight harvesting.
5. Support higher mounting height 15m Max.
6. Compact size makes it suitable to fix within most luminaries
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. Wide detection area, range up to 16m in diameter.
9. on off funciton/ clustor control funciton/ dimming funciton
Product information
Function:
3 -step dimming function/Clustor control function
Wiring:
On off function:
Wiring:
Daylight Harvesting:
Wiring:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
|
Rated load |
800W(inductive), 1200W (resistive) |
|
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
|
Transmitting power |
<0.5mW |
|
|
Detection zone Max.(D x H) |
16m x 15m |
|
|
Motion detection |
0.5~3m/s |
|
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
|
IP rating |
IP20 |
|
|
Operation Temperature |
-35℃~70℃ |
|
|
Hold time |
5s/30s/90s/3min/20min/﹢∞ |
|
|
Detection sensitivity |
10% / 50% / 75% / 100% |
|
|
Daylight sensor |
2lux/5lux / 10lux / 25lux /50lux / 100lux / Disable |
|
|
Stand-by period |
0s/ 5s / 5min / 10min / 30min / 1h / Disable |
|
|
Stand-by dimming level |
10% / 20% / 30% / 50% |
|
| Mounting height | 15m Max. | |
| Life time | 50,000 hours | |
| Guaranty | 5 years | |
Detection Pattern:
Applications:
Stairwell, corridor, balcony, pathway, washroom, kitchen, gas stations, parking lot , warehouse ,etc
