| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | CE , R&TTE |
| Model Number: | MC040S |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiation |
| Packaging Details: | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 20,000pcs per month |
| Product Name: | Microwave Motion Sensor | Rated Load: | 400w(Inductive) 800w(Resistive) |
|---|---|---|---|
| Operating Voltage: | 220~240Vac,50HZ | Detection: | Max(D×H):16m×6m |
| HF System: | 5.8GHz ±75MHz, ISM Wave Band | Approval: | CE & R&TTE |
| Operation Temperature: | -35℃~70℃ | Function: | ON-OFF Control |
| IP Rating: | IP20 | ||
| High Light: | microwave sensors for lighting,floodlight motion sensor,Downlight Microwave Motion Sensor |
||

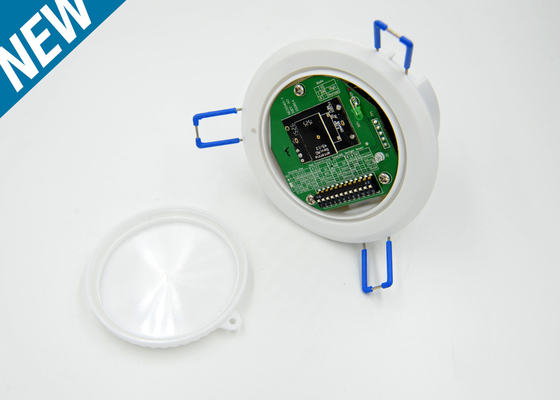

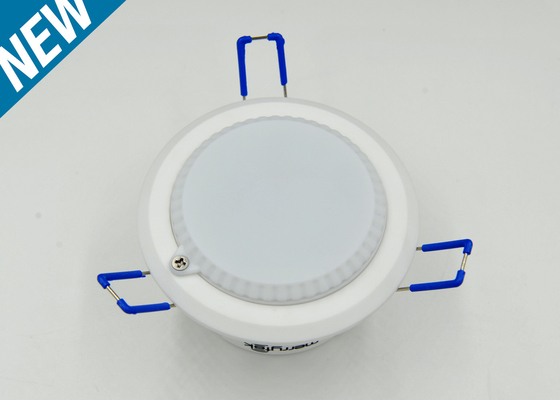

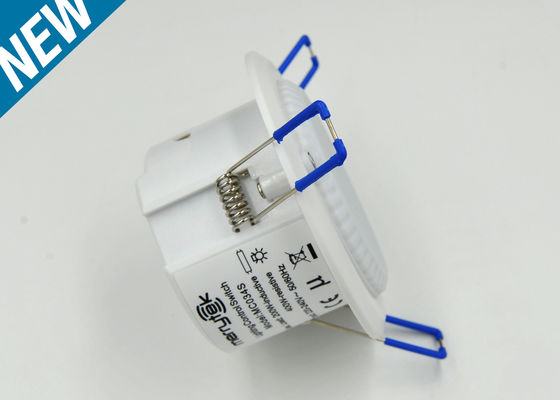

Flush Mounted Microwave Motion Sensor MC040S 220-240vAC Operated for On-off Function 400w Inductive
Description:
MC040S is an innovative motion sensor, special for stand-alone installation .can share the same cutiing hole of downlight .intelligent control .only light when there need light .which adopt the latest radar technolog to detect movement .with wide detection range to 16m max in diameter .
switch on the light on detection of movement, and switch
off a hold time when there is no motion detected. As built-in daylight sensor can read brightness value, the sensor
does not switch on the light if with sufficient in natural light.
Features:
1. Support for stand alone installation
2. Flush mounted desgin .
3. Buitl-in daylight sensor and motion sensor
4. Zero-crossing point operation helps protect the sensor against in-rush current.
5. 5.8GHz high frequency microwave(C-Band license-free operation)
6. 4-pole press-in terminal (L, N,N,L′),easy assembly.
7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
8. MC040S is an innovative motion sensor, switch on the light on detection of movement, and switch
off a hold time when there is no motion detected. As built-in daylight sensor can read brightness
value, the sensor does not switch on the light if with sufficient in natural light.
Function:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
400W(inductive), 800W (resistive) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-35℃~700℃ |
|
Hold time |
10s/30s/90s/3min/20min/30min |
|
Detec Range |
10%/25%/50%/75%/100% |
|
Daylight sensor |
2lux / 15lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Applications:
MC040S is special for application such as corridor ,pathway
