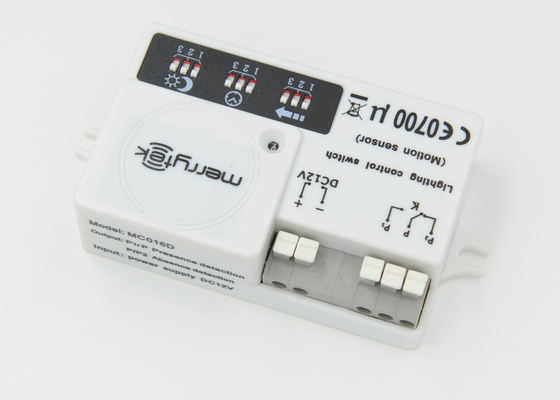

Dry Contact 12V Infrared DC Low Voltage Motion Sensor Wall Installation

  • Dry Contact 12V Infrared DC Low Voltage Motion Sensor Wall Installation
Place of Origin China
Brand Name Merrytek
Certification CE , R&TTE
Model Number MC016D
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton or outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Load Power Free Sensor(sensor And Load Are In Different Power Supply System)
Operating Voltage 12Vd Detection Max(D×H):16m×6m
HF System 5.8GHz ±75MHz, ISM Wave Band Size (L×W×H) 92x52x 25.5
Approval CE & R&TTE Operation Temperature -20℃~50℃
Function Dry Contact IP Rating IP20
High Light

indoor light motion sensor

,

motion detection sensor

,

Infrared DC Low Voltage Motion Sensor
Leave a Message
Product Description

Dry Contact 12V Infrared DC Motion Sensor Voltage Free Wall Installation





Description

​

  •   Dry contact design
  •   Voltage free sensor, sensor and load are in different power supply system
  •   Esp. for solar energy garden lamp and industrial application
  •   Dry contact works in normally closed mode and normally open mode
  •   ISM Band 5.8GHz
  •   Automatic switching based on motion and ambient light level
  •   3 pole relay design, user can choose normally open mode or normally closed mode according to different application
  •   Sensor data can be simply set via DIP switch.
  •   Wide detection area, range up to 16m in diameter.
  •   The sensor can be detected through plastic, glass and thin non-metal materials. It supplies dry contacts in normally closed mode and normally open mode. Dry contact means open or close relay without any current or voltage. It is perfect for the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supply

On-off function







Specifications:



Operating voltage

12Vdc

Rated load

Power free

HF system

5.8GHz±75MHz, ISM wave band

Power consumption

≤0.5W(standby), <1W(operation)

Transmitting power

<0.5mW

Detection zone Max.(D x H)

16m x 6m

Motion detection

0.5~3m/s

Detection angle

150°(wall installation) 360°(ceiling installation)

IP rating

IP20

Operation Temperature

-20℃~50℃

Hold time

10s/ 30s/ 90s /3min/20min / 30min

Detection sensitivity

10% / 25% / 50% / 75% / 100%

Daylight Sensor

5lux / 10lux / 30lux / 50lux /Disable

Life time

50000 hours

Guaranty

5 years


Wiring:



Applications:



Stairwell, Corridor, Balcony, Pathway, etc.
