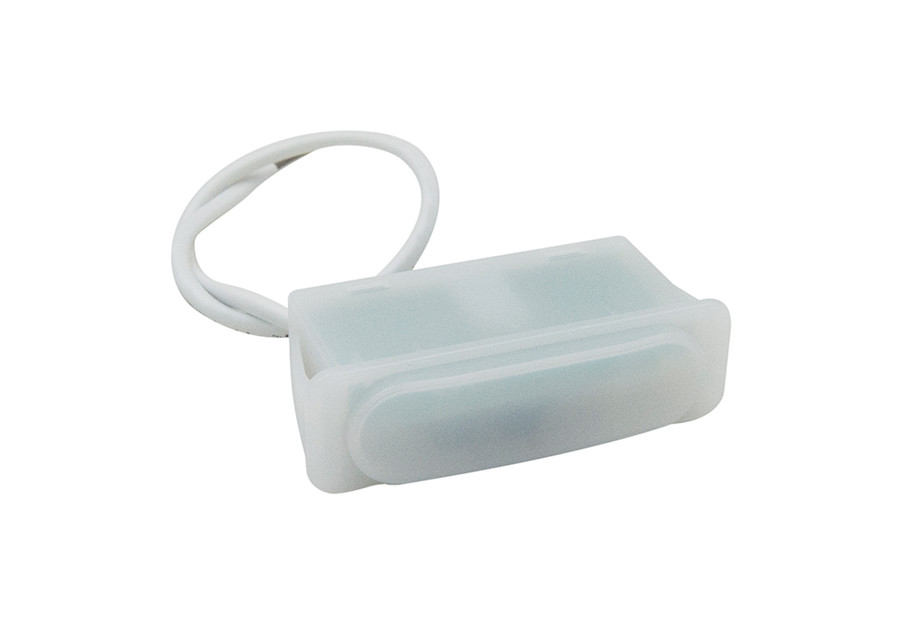

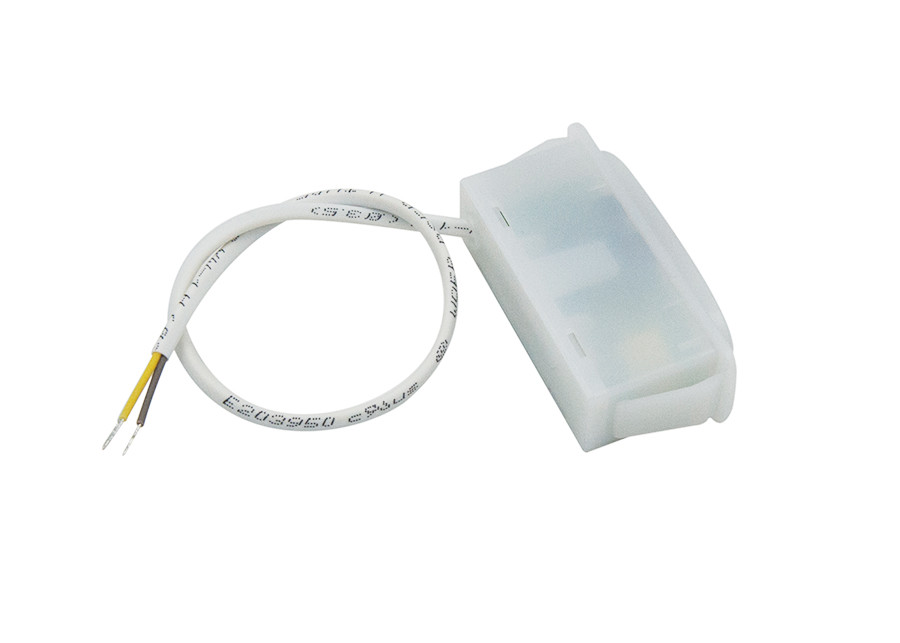

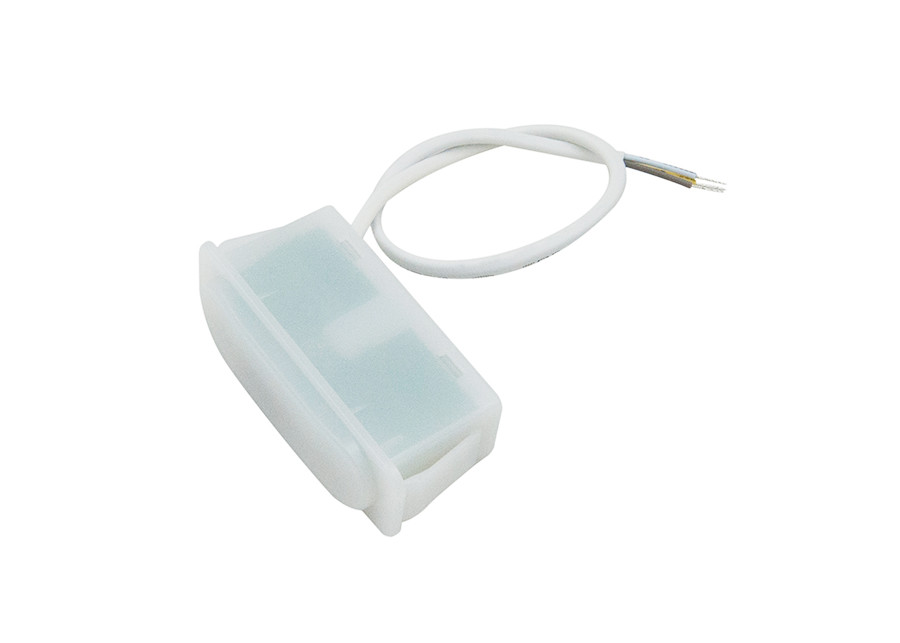

Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11

  • Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11
  • Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11
  • Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MS11
Minimum Order Quantity 500pcs
Price Negotiation
Packaging Details Packed in the white box with instruction, clapboard and carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3 weeks after receiving deposit.
Payment Terms T/T, Western Union, L/C
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Daylight Sensor Input Voltage 12VdC
Working Current <20mA Working Mode 0-10VDC
Installation Height 2-5m Dim Interface 0-10V Dimming
Working Temperature -25℃~60℃
High Light

led dimmer driver

,

dimming motion sensor

,

Builtin Installation Daylight Harvesting Sensor
Leave a Message
Product Description

Daylight Harvesting Sensor with Built-in Installation & 12VDC Input MS11

1. Featueres


  • Daylight harvesting function, realizes automatic brightness adjustment through 0-10V dimming power supply.
  • 12VDC input, suitable for LED power supply with 12VDC auxiliary power output.
  • 2.0-5.0 meters installation height, suitable for linear lights, tri-proof lights and panel lights.
  • All brightness parameters are set via the remote control.


2. Parameter


InputOperating Voltage Range12VDC±3V
Rated Voltage12VDC
Working Current< 20mA
Wiringelectrical wire: 3 pin AWG24, length 250MM
OutputWorking Mode0-10VDC
Load Typelinear lights, tri-proof lights and panel lights with 0-10V port
Wiringelectrical wire: 3 pin AWG24, length 250MM
Dim Interface0-10V dimming< 50mA (non-constant current source)
Sensor ParametersDim Leveldimming through DIM+, DIM- buttons of the remote, stepless dimming
Daylight Harvesting

200Lux±50Lux;300Lux±50Lux;400Lux±50Lux;500Lux±50Lux;
600Lux±50Lux

Installation Height2.0-5.0m 5m Max.

Operating

Environment

Operating Temperature-25℃…+60℃
Storage Temperature-40℃…+80℃, humidity:10%-95%, non condensing
Certificate StandardsEnvironmental RequirementCompliant with RoHS
CertificateCE
OthersIP RatingIP20
Protection ClassClass 2
InstallationBuilt-in installation
Dimension62*30*18mm
PackageWhite bag+Clapboard + Carton(K=A)
Lifetime5 years warranty@Ta 0-10V power supply full load



3. Daylight Harvesting Function( with 0-10V dimming power supply)
Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11 0

4.Dimension (mm)
Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11 1
5. Wiring
Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11 2
6. Remote control
Daylight Harvesting Sensor With Built-In Installation & 12VDC Input MS11 3
