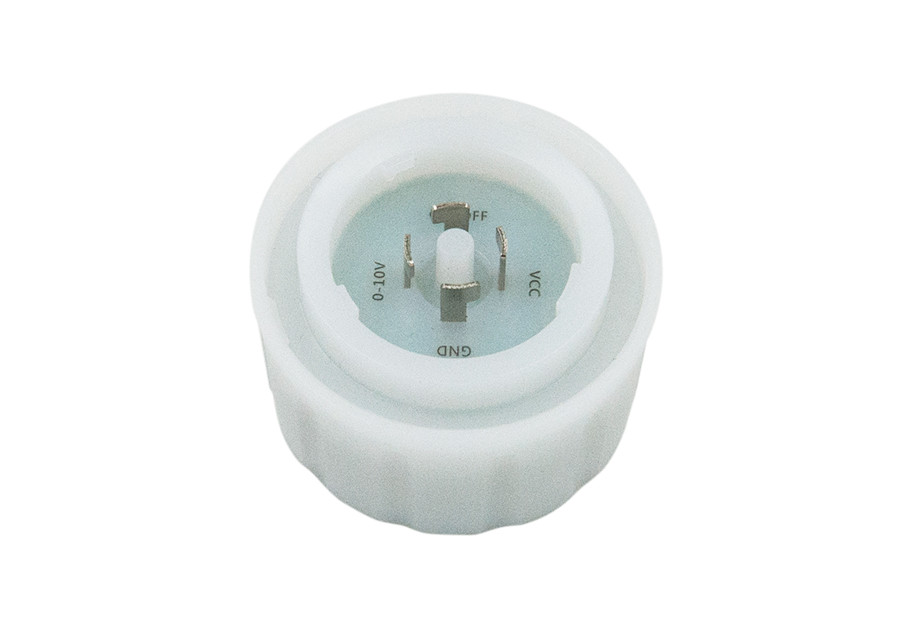

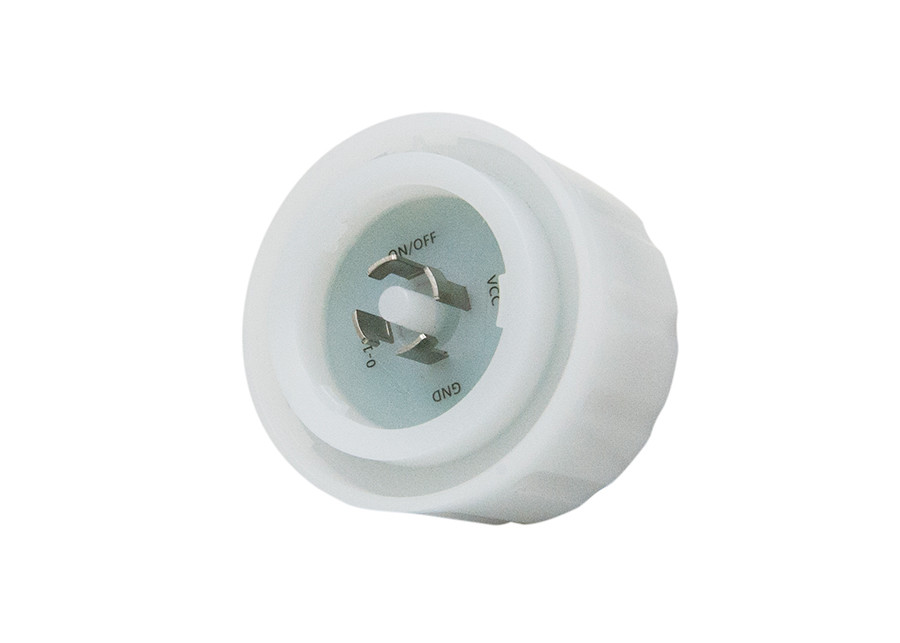

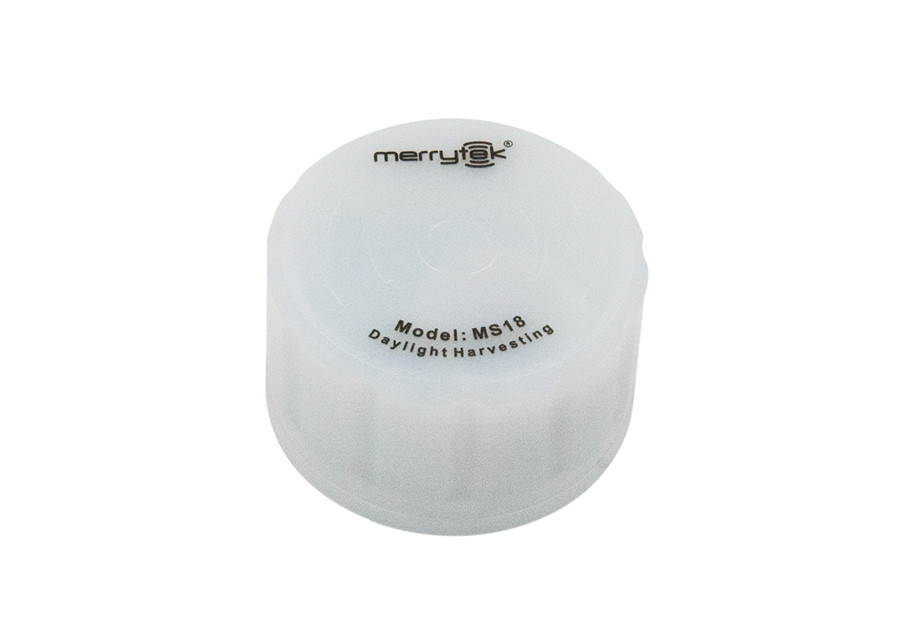

Zhaga-Book-18 Daylight-harvesting Sensor with 12VDC Input MS18
Place of Origin | China |
---|---|
Brand Name | Merrytek |
Certification | CE |
Model Number | MS18 |
Minimum Order Quantity | 500pcs |
Price | Negotiation |
Packaging Details | Packed in bubble bag firstly, and then reinforced with carton for outer packing |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit |
Payment Terms | T/T, Western Union |
Supply Ability | 10,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Input Voltage | 12VdC | Working Current | < 20mA |
---|---|---|---|
Working Mode | 0-10VDC | Installation Height | 2-5m |
Dim Interface | 0-10V Dimming | Operating Temperature | -25℃~60℃ |
Wiring | Zhaga Book 18 Interface | ||
High Light | indoor light motion sensor,high frequency sensor |
Product Description
Zhaga-Book-18 Daylight-harvesting Sensor with 12VDC Input MS18
1. Feature
- Daylight harvesting function, realizes automatic brightness adjustment through 0-10V dimming power supply.
- 12VDC input, suitable for LED power supply with 12VDC auxiliary power output.
- Zhaga Book 18 interface.
- All brightness parameters are set via the remote control.
2. Parameter
Input | Operating Voltage Range | 12VDC±3V |
Rated Voltage | 12VDC | |
Working Current | < 20mA | |
Wiring | Zhaga Book 18 interface | |
Output | Working Mode | 0-10VDC |
Load Type | linear lights, tri-proof lights and panel lights with 0-10V port | |
Wiring | Zhaga Book 18 interface | |
Dim Interface | 0-10V dimming | < 50mA (non-constant current source) |
Sensor Parameters | Dim Level | dimming through DIM+, DIM- buttons of the remote,stepless dimming |
Daylight Harvesting | 200Lux;300Lux;400Lux;500Lux;600Lux;700Lux;800Lux;900Lux | |
Installation Height | 2.0-8.0m 8m Max. | |
Detection Angle | 150°(wall mount), 360°(ceiling mount) | |
Operating Environment |
Operating Temperature | -25℃…+60℃ |
Storage Temperature | -40℃…+80℃, humidity:10%-95%, non condensing | |
Certificate Standards | Environmental Requirement | Compliant with RoHS |
Certificate | CE | |
Others | IP Rating | IP20 |
Protection Class | Class 2 | |
Installation | wall mount or ceiling mount | |
Installation Size | Ø 48mm diameter | |
Package | White bag+Clapboard + Carton(K=A) | |
Lifetime | 5 years warranty@Ta 0-10V power supply full load |
3. Daylight Harvesting Function( with 0-10V dimming power supply)
4.Dimension (mm)
5. Wiring
6. Remote control
