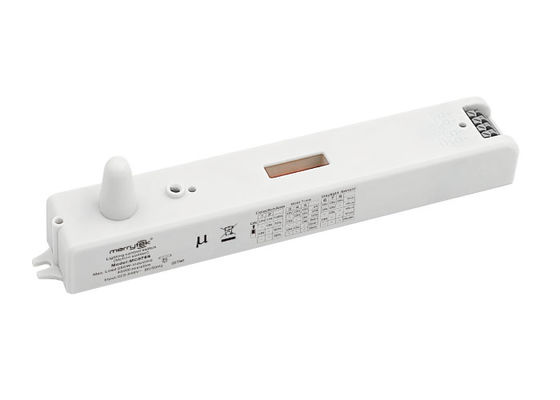

MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light

  • MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC076S
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Input Voltage 220-240VAC
Stand-by Power ≤0.5W Load Power 250W (Inductive) 400W（Resistive）
Operating Frequency 5.8 GHz ±75 MHz Control 0N/0FF
Operating Temperature -25℃ ~ +60℃ IP Rating IP20(Built-in)
High Light

IP20 Occupancy Detection Sensor

,

Linear Light Microwave Motion Sensor

,

Batten Light Microwave Motion Sensor
Leave a Message
Product Description

MC076S Motion Sensors On-off Control with Needle Antenna for LED Linear Batten Light

  • On-Off function for tri-proof light
  • Stand-by power ≤ 0.5W
  • detection area, hold time and daylight sensor could be set via DIP
  • 5 Years Guarantee



Input Input Voltage 198-264V AC 50Hz
Rated Input Voltage 220-240V AC 50Hz
Stand-by Power ≤ 0.5W
Output Load Power 250W (Inductive) 400W(Resistive)
Sensor Parameters Hold Time

5s/30s/90s/3min/20min/30min
Sensing Range

100%/75%/50%/25%
Daylight Sensor

Disable/50Lux/30Lux/10Lux/2Lux
Mounting Height Ceiling Mounting:2.5-4m
Detection Area Walking 0.5-1m/S keep walking≥2mwalk & stop≥5m
Wireless Parameters Operating frequency 5.8 GHz ±75 MHz
control 0N/0FF

Operating

Environment

 Operating temperature -25℃ - +60℃
Storage temperature -35℃~+80℃ Humidity : 85% (Non-condensing)

Safety

& EMC



 Isolation pressurization N/A
EMC EN55015
Certificate requirement CE
Others Wiring method Press fit terminal (4)
IP rating IP20(Built-in)
Protection Class Class II
Installation Size 169*26*40mm
Packaging requirement Clapboard +Outer Carton (K=A)
Life 50000h


Dimension (Unit:mm)

MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light 0


Wiring Diagram

MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light 1

Function

MC076S Microwave Motion Sensor On Off Control For LED Linear Batten Light 2
