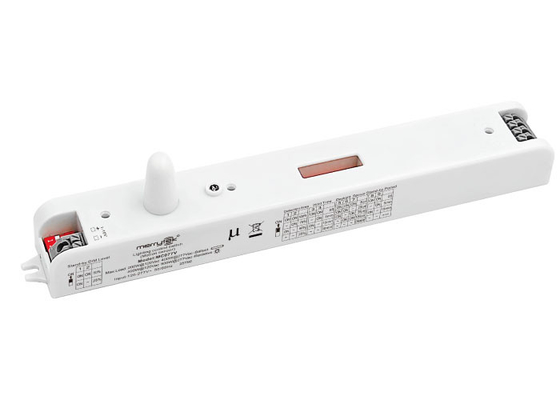

120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna

  • 120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna
Place of Origin China
Brand Name Merrytek
Certification CE,SAA,UL
Model Number MC077V
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T or Western Union or PayPal
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Rated Input Voltage 120-277VAC
Stand-by Power ≤0.5W Load Power AC120V 100W (Inductive), AC220V-277V 200W (Inductive) AC120V 200W（Resistive）,AC220V-277V 400W（Resistive）
Operating Frequency 5.8 GHz ±75 MHz Control 2 Step /3 Step Dimming/ On Off Function
Operating Temperature -25℃ ~ +60℃ Certificate Requirement CE,SAA,UL
IP Rating IP20(Built-in)
High Light

IP20 Smart Control Microwave Sensors

,

Needle Antenna Dimmable Microwave Sensor

,

277VAC Dimmable Microwave Sensor
Leave a Message
Product Description

MC077V Dimmable Motion Sensors with Needle Antenna for LED Linear Batten Light

  • Dimmable function for tri-proof light
  • Stand-by power ≤ 0.5W
  • detection area, hold time and daylight sensor could be set via DIP
  • 5 Years Guarantee



Input Input Voltage 108-306V AC 50Hz
Rated Input Voltage 120-277V AC 50Hz
Stand-by Power ≤ 0.5W
Output Load Power AC120V 100W (Inductive), AC220V-277V 200W (Inductive)
AC120V 200W(Resistive),AC220V-277V 400W(Resistive)
Sensor Parameters Hold Time

5s/5min/10min/30min
Sensing Range

50%/25%/10%
Daylight Sensor

Disable/100Lux/50Lux/25Lux/5Lux
Mounting Height Ceiling Mounting:3-4m
Detection Area Walking 0.5-1m/S keep walking≥2mwalk & stop≥5m
Wireless Parameters Operating frequency 5.8 GHz ±75 MHz
control 2 step /3 step dimming/ on off function

Operating

Environment

 Operating temperature -25℃ - +60℃
Storage temperature -35℃~+80℃ Humidity : 85% (Non-condensing)

Safety

& EMC



 Isolation pressurization N/A
EMC EN55015
Certificate requirement CE
Others Wiring method Press fit terminal (4)
IP rating IP20(Built-in)
Protection Class Class II
Installation Size 169*26*40mm
Packaging requirement Clapboard +Outer Carton (K=A)
Life 50000h


Dimension (Unit:mm)

120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna 0


Wiring Diagram

120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna 1

Function

120-277VAC Dimmable Microwave Sensor MC077V With Needle Antenna 2
