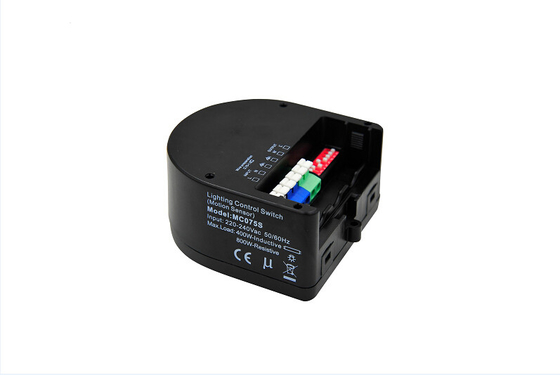

15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller

  • 15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller
Place of Origin China
Brand Name Merrytek
Certification TUV
Model Number MC075S
Minimum Order Quantity Stop production, not available.
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit
Payment Terms T/T, Western Union
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Range 220-240V AC 50/60Hz Operating Mode ON/OFF
Load Type 400W (Inductive), 800W（Resistive） Operating Frequency 5.8 GHz ±75 MHz，ISM Wave Band
Daylight Mode Daylight Threshold /Daylight Harvesting （Operate Together With MS07） Operating Temperature -25℃~55℃
IP Rating IP20 Mounting Height 15 Meter Max
High Light

Remote Controller Microwave Motion Sensor

,

IP20 Floodlight Motion Sensor

,

High Mounted Microwave Motion Sensor
Leave a Message
Product Description

Stop production, not available.



MC075S Microwave Motion Sensor 5.8G Hz Doppler Movement Detecting



1) Lighting Control , Switch ON or OFF

2) 15m High mounted, for LED High Bay

3) With Remote controller





Parameter

Input Operating Voltage 198-264V AC 50Hz/60Hz
Direct Voltage N/A
Rated Voltage 220-240V AC 50Hz/60Hz
Idle Power N/A
Stand-by Power ≤0.5W
Lightning Surge 1KV between L and N
Output Working Model ON/OFF
Type of Load Inductive or Resistive
Power of Load Inductive (400W) ; Resistive (800W)
Current of Load N/A
Surge Current of Load
Connection 1-10Vdimmable N/A
Synchronous control N/A
High low-level N/A
PWM Control N/A
Type of wiring N/A
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 0.5mW Max.
Hold time 5S/30S/1min/3min/20min/30min(Remote control:5S/30S/1min/3min/5min/10min/20min/30min)
Dim down N/A
Stand-by N/A
Sensitivity 100%/75%/50%/25%(Remote control:25%/50%/75%/100%)
Daylight Sensor 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux Disable(Remote control:5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/ Disable)
Daylight on/off N/A
Detecting Radius N/A
Mounting Height Suggested 15M Max, ceiling mounting
Detecting Angle N/A
Wireless Module Operating Frequency N/A
Transmitting power N/A
Transmitting distance N/A
Modulation mode N/A
Number of coding N/A

Operating

Environment

 Operating Temperature, -35℃…+55℃, Humidity:85% Non-condensing)
Storage Temperature -40℃…+80℃ Humidity: 10%-95%
Certificate Standards Safety standards N/A
EMC standards N/A
Environmental protection Compliant to RoHS
Certificates Compliant to CE SAA
Others Wiring Press Terminal, wire diameter:0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Interior installed
Mounting size 62*36*25mm
Package PE bag+ White box+ Instruction+ Clapboard + Carton(K=A)
Net Weight N/A
Lifespan 50000h @ Ta Full load
Remark:1. “N/A”means not available 2. Each data is tested under certain condition




Function



On/OFF Function



15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller 0



Remote control



15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller 1



Dimension



15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller 2



Wiring



15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller 3





Structure



15m High Mounted Microwave Motion Sensor Switch IP20 With Remote Controller 4



DIP Setting





Sensitivity



1 2
ON ON 100%
- ON 75%
ON - 50%
- - 25%




Hold Time



3 4 5
ON ON ON 5S
- ON ON 30S
ON - ON 1min
- - ON 3 min
ON ON - 20min
- - - 30min






Daylight Threshold



6 7 8 9
ON ON ON ON 5Lux
- ON ON ON 15Lux
ON - ON ON 30Lux
- - ON ON 50Lux
ON ON - ON 100Lux
ON ON ON - 150Lux
- - - - Disable
