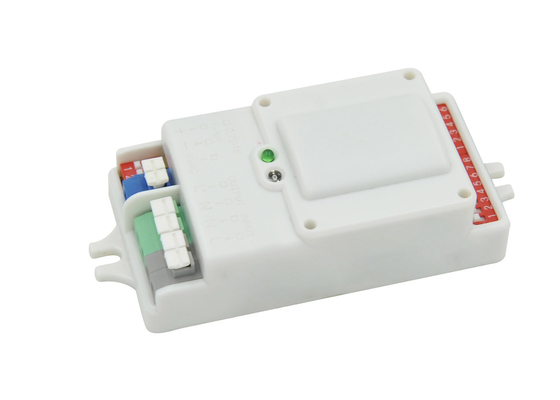

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V

  • High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V
Place of Origin China
Brand Name Merrytek
Certification CE & RED
Model Number MC083V
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time 1, Sample ans small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Microwave Motion Sensor Operating Voltage 198-264V AC 50/60Hz
Transmitting Power 1mW Max. Rated Load 800W@230Vac (Inductive),1000W@230Vac(Resistive)
HF System 5.8GHz ±75MHz, ISM Wave Band Approval CE, RED
Operation Temperature -25℃…+60℃ Function ON/OFF Function, 2-step Dimming Function, 3-step Dimming Function
IP Rating IP20 Detecting Radius 4-7m(mounting Height 8m)
High Light

1mW Microwave Motion Sensor

,

264V Lights Dimmable Motion Sensor

,

High Frequency Dimmable Motion Sensor
Leave a Message
Product Description

European Style Dimmable Motion Sensor, Microwave Motion Sensor for Lights MC083V





Description

  • High installation for car parks, etc.
  • Work with 1-10V dimmable LED driver, easy to achieve 2-step or 3-step dimming function.
  • 5.8GHz high frequency microwave(C-Band license-free operation)
  • DIP setting allows the user easy to adjust sensor parameters.



Function:

ON-OFF function

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 0

2-step dimming function

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 1

3-step dimming function

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 2



Detection Patter:

Ceiling mounting

Ceiling mounted height: 3m

Sensitivity: 100%/75%/50%/10%

Ceiling mounted height: 9m

Sensitivity: 100%/75%/50%/10%

Ceiling mounted height: 15m(*)

Sensitivity: 100%/75%/50%

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 3

Normal moving (Speed:1m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 4

Normal moving (Speed:1m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 5

Normal moving (Speed:1m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 6

Slow moving (Speed 0.3m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 7

Slow moving (Speed 0.3m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 8

Slow moving (Speed 0.3m/s)

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 10% sensitivity is not able to detect motion signal.



Wall mounting

Horizon mounted height: 2m

Sensitivity: 100%/75%/50%/10%

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 9

Normal moving (Speed:1m/s)

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V 10

Slow moving (Speed 0.3m/s)



Specifications:

Operating voltage

198-264V AC 50/60Hz
Rated load

800W (Inductive), 1000W (Resistive) @230V AC
HF system 5.8GHz±75MHz, ISM wave band

Stand-by Power

≤0.5W
Transmitting power

0.5mW Max.
Detection zone Max.(D x H) 6m x 15m
Motion detection 0.3~3m/s
Detection angle 150°(wall installation) 360°(ceiling installation)
IP rating IP20
Operation temperature

-25℃…+60℃
Hold time

5S/30S/90S/3min/20min/30min

Detection Area

100%/75%/50%/10%
Daylight sensor

2Lux/5Lux/10Lux/25Lux/50Lux/100Lux/Disable

Stand-by DIM Level

25%(2.2-2.5V)/35%(3.0-3.5V)/50%(5.0-5.5V)
Life time 50,000 hours
Guaranty 5 years





DIP Switch Setting

Detection Area

  1 2
Ⅰ ON ON 100%
Ⅱ ON - 75%
Ⅲ - ON 50%
Ⅳ - - 10%



Hold Time

  3 4 5
Ⅰ ON ON ON 5s
Ⅱ - ON ON 30s
Ⅲ ON - ON 90s
Ⅳ - - ON 3min
Ⅴ ON ON - 20min
VI - - - 30min





Stand-by Period

  6 7 8
Ⅰ ON ON ON 0s
Ⅱ - ON ON 5s
Ⅲ ON - ON 5min
Ⅳ - - ON 10min
Ⅴ ON ON - 30min
VI - ON - 60min
VII - - - +∞





Stand-by Dim Level

  1 2
Ⅰ ON ON 50%
Ⅱ ON - 35%
Ⅲ - - 25%



Daylight Sensor

  1 2 3 4 5 6
Ⅰ ON ON ON ON ON ON 2lux
Ⅱ - ON ON ON ON ON 5lux
Ⅲ ON - ON ON ON ON 15lux
Ⅳ ON ON - ON ON ON 25lux
Ⅴ ON ON ON - ON ON 50lux
VI ON ON ON ON - ON 100lux
VII ON ON ON ON ON - Disable*

*Disable means the daylight sensor does not work. The sensor will turn on light once motion is detected regardless of ambient light level.



Applications:

Car park, etc
