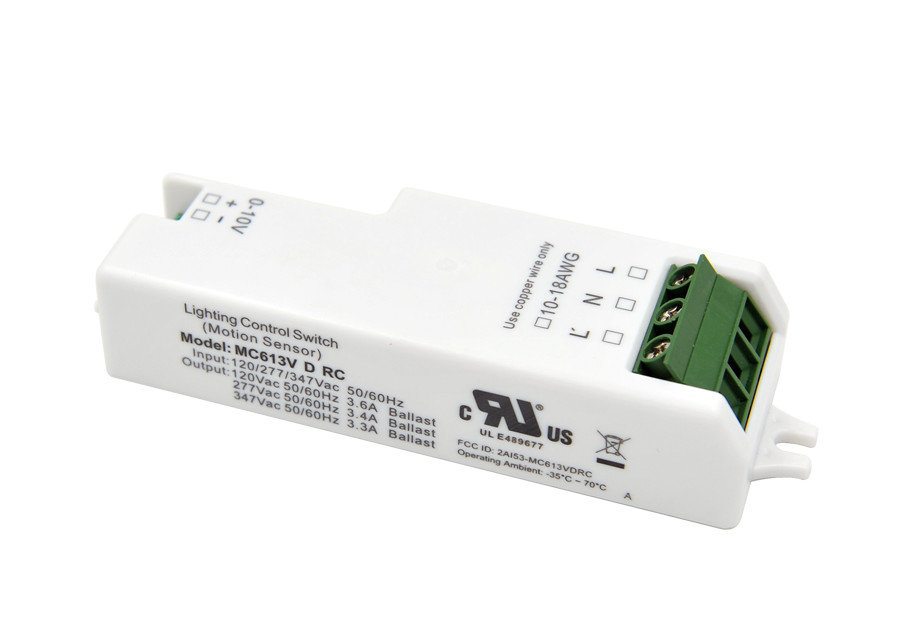

MC613V D RC UL Motion Sensor Dimming Function With Detachable Sensor

MC613V D RC, UL Motion Sensor, 108-382Vac, Dimming Function with Detachable Sensor

For more details, pls refer to as follows:

MC613V D RC spec 2022.06.24.pdf

1. Features

• Built-in motion sensor and daylight sensor for intelligent control
• 120/277/347Vac Input Voltage;
• Stand-by Power: <1.0W;
• On/Off, 3-step dimming function with detachable sensor;
• North American version for linear & batten lights;
• Detection Distance:(Diameter*Height: 4m*6m Max.)
• Functions can be set via DIP Switches or infrared remote control MH02, such as detection area, hold time, stand-by level, stand-by dim level etc..
• 5-year warranty

2. Parameter

3. Function

1) ON/OFF function (stand-by period be set to “0”s)

2) 2-step dimming function (stand-by period be set to “+∞”)

3) 3-step dimming function (stand-by period be set to “10s/1min/3min/5min/10min/30min”)

4. Dimension (mm)

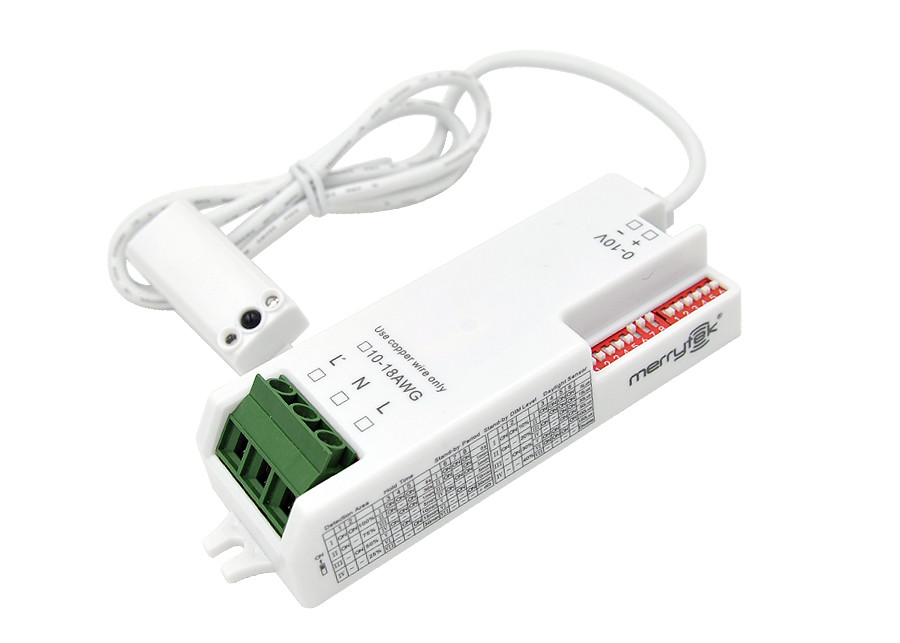

Detachable Sensor as below:

5. Wiring

6.Structure

7. Detection Pattern

Ceiling mounting

Ceiling mounted height: 3m	Ceiling mounted height: 6m
Sensitivity: 100%/75%/50%/25%	Sensitivity: 100%
Normal moving (Speed:1m/s)	Normal moving (Speed:1m/s)
Slow moving (Speed 0.3m/s)	Slow moving (Speed 0.3m/s)
*Only 100% detection sensitivity is workable when installed at 6m mounting height. able to detect motion signal.

8. Remote Control

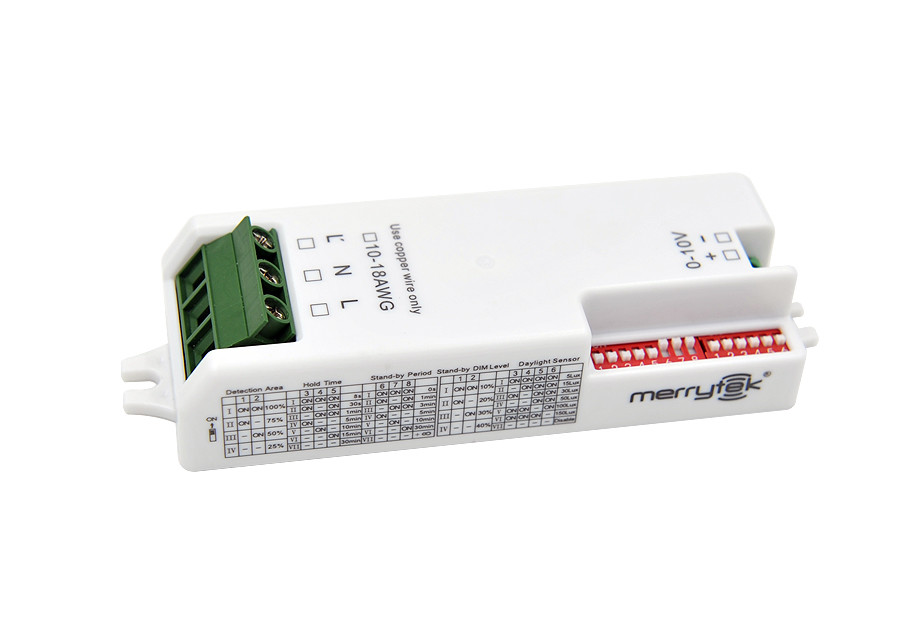

9. DIP Switch Setting

Detection Area

Hold Time

Stand-by Period

Stand-by DIM Level

Daylight Sensor

10. Initialization

1) On/Off function /3-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.

2) 2-step dimming function:

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it dims the light to a low light level (set by stand-by dim level). During the initialization, the sensor is not able to detect movement.

11.Factory settings

Detection area: 100%, Hold time: 8s, Stand-by Period: 0s, Stand-by dim level: 10%, Daylight Sensor: Disable

12. Application Notice

(1) Sensor should be installed by a professional electrician. Please turn off power before installing, wiring, or setting the DIP switches.

(2) Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product. If antenna needs to pass through the metal plate, please ensure that the top of sensor is close to the metal plate.

(3) The distance among sensors should be greater than 3 meters. Keep sensor away from switches, routers and other wireless devices to avoid radio interference, more than 2 meters. The antenna surface of microwave module should be away from input AC and output DC to avoid low or high frequency signals affecting the normal operation of microwave sensor’s antenna.

(4) Vibration signals will be regarded as moving signals to trigger sensor. Installing sensor should be away from the object that vibrates for a long time, such as large metal equipment, pipes, air conditioning outlets, exhaust vents, smoke exhaust machine ports, shaking fans, etc. Pets in detecting area may trigger sensing.

(5) Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering. When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow enclosed device, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity of sensor or contact manufacturer for technical support.

(6)This model is suitable for ceiling mounting. If wall mounting, the detecting area will enlarge which makes microwave penetrate wall or light not turn off, and please change sensitivity to 25%. If 25% is useless, please avoid wall mounting or contact the manufacturer for technical support.

(7) Due to continuous improvement, the contents of this instruction will be changed without prior notice.

(8) The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.

(9) Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.

(10) Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.

(11) The sensor is installed in the plastic, the glass lampshade will reduce the sensitivity of the sensor. For every 3mm increase in thickness, the sensitivity will be reduced by 20%.

(12)Do not place the sensor close to high-density objects such as metal, glass, mixed-use walls, etc. The sensor may be triggered by mistake.

(13)The parameters of the sensor may be reconfigured in different installation environments. Please refer to the above instructions or contact the manufacturer.
