Product Details
DC Input Voltage 12 DC ±1V Stand-by Power <0.3W
Wiring By Zhaga Book 18 Connector Mounting Height 15m Max
IP Rating IP65
High Light

MC079D RC Z DC Motion Sensor

,

Daylight Priority 12v Dc Motion Sensor

,

IP65 12 Volt Dc Motion Sensor
Leave a Message
Product Description

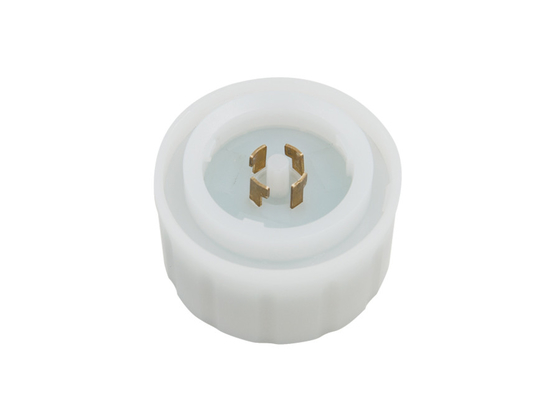

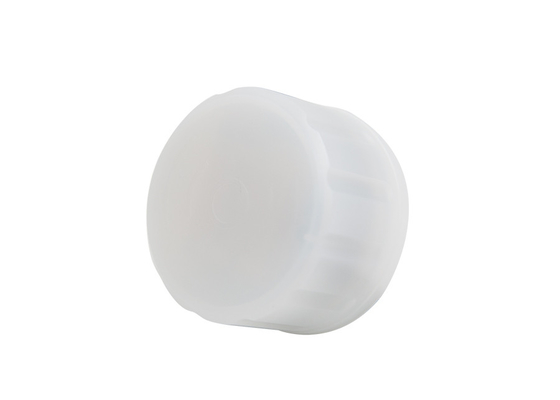

DC Motion Sensor with UL/FCC Cerfiticate for North America MC079D RC Z



1. Features



  • Zhaga Book 18 interface
  • 12VDC input, 0-10VDC output(dimming port)
  • Motion detecting with 3 or 2 step dimming function
  • Up to 15m mounting high through Merrytek patented high-gain antenna
  • Daylight priority function
  • Parameters are setting by Remote control
  • Light level can be adjusted through Dim+/Dim- buttons on the remote

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 0

Compatible with the easy change covers of different function:

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 1





2. Parameter





Input DC Input Voltage 12 DC ±1V
Rated Voltage 12V DC
Stand-by Power <0.3W
Wiring By Zhaga Book 18 connctor
Output Working Mode 0-10V DC
Wiring By Zhaga Book 18 connector
Dim Interface 0-10V Dimming < 50mA (Non-constant source)
Sensor Parameters Operating Frequency 5.8 GHz ±75 MHz,ISM Band.
Transmitting power 1mW Max.
Hold time 5S/30S/1min/3min/5min/10min/20min/30min
Stand-by DIM Level 10%(1.4-1.6V), 20%(1.9-2.1V), 30%(2.9-3.1V), 50% (4.9-5.1V)
Stand-by Period 0s/10S/1min/3min/5min/10min/30min/+∞
Detection Area 25%/50%/75%/100%
Daylight Sensor

Daylight threshold:

5lux/15Lux/30Lux/50Lux/100lux/150lux/Disable

Daylight priority: ON/OFF value

(5lux/15Lux/30Lux/50Lux)/150Lux

100Lux/200Lux

150Lux/300Lux
Detecting Radius See detection pattern
Mounting Height 15m Max
Detecting Angle 150°(wall mounting) 360°(ceiling mounting)

Operating

Environment

 Operating Temperature -35℃…+70℃
Storage Temperature Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing)
Certificate Standards Safety standards EN60669-2-1, EN60669-1
EMC standards EN55015, EN61000-3-2, EN61000-3-3, EN61547
Environmental Requirement Compliant to RoHS
IP Rating IP65 when mount with Zhaga Block 18 connector
Protection Class Class II
Installation External mounting,integrated mounting
Dimension See dimension
Package White paper box
Net Weight 55g
Lifetime 5 years warranty@Ta 230V full load

Note

1. “N/A”means not available.

2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.3m/s.


3. Function



1) On/OFF Function (stand-by period be set to “0”s)

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 2

2) 2-step dimming function (stand-by period be set to “+∞”)



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 3

3) 3-step dimming function (stand-by period be set to “10S/1min/3min/5min/10min/30min”)



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 4

4) Daylight priority(stand-by period set to +∞)



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 5

4. Dimension (mm)



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 6

5.Wiring



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 7

*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.



6.Structure

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 8



7. Installation(Match Zhaga Book 18 connector)

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 9



8. Radiation Pattern (Typical data)



Ceiling mounting

UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 10

*Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 25% sensitivity is not able to detect motion signal.



Wall mounting



UL / FCC Cerfiticate DC Motion Sensor for North America MC079D RC Z 11
