Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights

Place of Origin Shenzhen
Brand Name merrytek
Certification CE RED
Model Number MC095S
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage Range 220-240VAC Stand-by Power <0.5W
Operating Frequency 5.8 GHz ±75 MHz. ISM Wave Band Hold Time 5S/30S/1min/3min/5min/10min
Detection Area 25%/50%/75%/100% Daylight Sensor 2Lux/10Lux/30Lux/50Lux/Disable (Diffusion State)
Highlight

MC095S Microwave Motion Sensor

,

merrytek motion sensor

,

merrytek daylight sensor

Leave a Message
Product Description

Microwave Motion Sensor Designed for Slim Lights with Large Detecting Area MC095S

for slim lamps like ceiling lights, tri-proof lights, linear lights and batten, etc

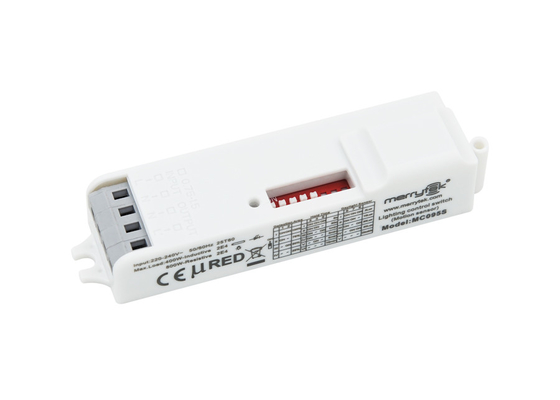

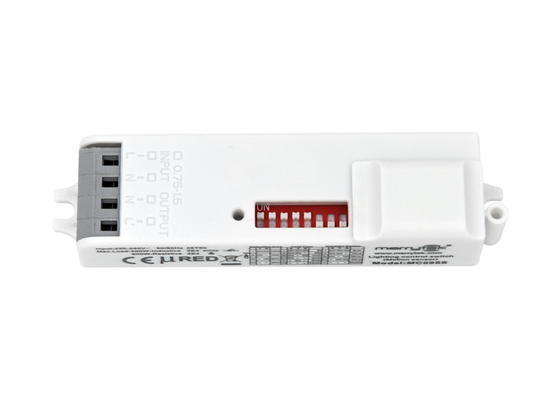

Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 0

1. Features



  • Ultra-thin design, body thickness is only 16mm, suitable for ultra-thin ceiling light and tri-proof light.
  • Patented low-impendence microwave antenna, make sure the batch product complies with RED directive.
  • 5.8GHz license-free ISM wave band, active detection, stable and reliable.
  • Multiple DIP switches design brings easy sensor settings.


2. Parameter


Input Operating Voltage Range 198-264VAC 50/60Hz
Rated Voltage 220-240VAC 50/60Hz
Stand-by Power ≤0.5W
Surge Test Between L and N: 1KV
Output Working Mode ON/OFF
Type of Load Resistive or Capacitive
Load Capacity 400W@230VAC(Capacitive), 800W @230VAC(Resistive)
Load surge current 30A relay - 30A (test twidth 500us @230Vac at 50% Ipeak, cold start at full load) or 60A (test twidth 200us @230Vac at 50% Ipeak, cold start at full load)
Sensor HF system 5.8 GHz ±75 MHz, ISM wave band
Transmitting power 0.5mW Max.
Hold time 5S/30S/1min/3min/5min/10min
Detection area 100%/75%/50%/25%
Daylight sensor 2Lux/10Lux/30Lux/50Lux/Disable (Diffusion state)
Detecting Radius Motion detection:>4m@0.3m/S, >2.5m@1m/S (Installed at 3m high )
Mounting Height 1-5m
Detecting Angle 150°

Operating

Environment

Operating temperature -20℃…+50℃ Humidity: 85% (non-condensing)
Storage temperature -40℃…+80℃
Certificate Standards Safety standards EN61058-1, EN61058-1-2
EMC standards EN55015, EN61547, EN61000-3-2, EN61000-3-3
Environmental Requirement RoHS
Certificate CE RED
Others Input/output terminal specifications 0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Built-in installation
Dimension 100L*26W*21H(mm)
Package Bubble bag + partition + outer box (K=A)
Net Weight 36g
Lifetime 5 years warranty @Ta 230V full load






3. Function




On/OFF Function

Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 1







4. Dimension (mm)


Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 2

5.Wiring
Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 3
*The sensor is designed for connect one load only. Connect more than one loads may damage the sensor.


6.Structure
Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 4

7. Radiation Pattern


Ceiling mounting:

Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 5
Notice:
*50%, 75%, 100% detection sensitivity is workable when installed at 6m mounting height. Only 25% sensitivity is not able to detect motion signal.

Wall mounting:

Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 6



Notice:

The data on detection pattern is typical value tested without any lighting fixture in Merrytek factory, the detection range could be affected by moving speed, installation height, motion object and different environment.



8. Function Dialing Settings

Large Detecting Area MC095S Microwave Motion Sensor Designed For Slim Lights 7

*When set to Disable gear, the sensor will turn on the light as long as the motion of the object is detected, regardless of whether the illumination is adequate or not.


9. Initialization
After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.



10.Factory settings
Detection Area: 100%, Hold Time: 5S, Daylight Sensor: Disable


11.Application Notice
1) This product is only used indoors and supports built-in (lamp) installation.
2) When installing multiple products, it is recommended that the distance between each product is> 2m.
3) The microwave will penetrate the wooden wall when used in a wooden room, and cause false trigger when a human body moves in the next room. If this happens, please lower the detection area sensitivity.
4) Microwave cannot penetrate metal. Avoid installing the product in a closed or semi-enclosed metal lamp, and the product antenna cannot be covered by metal plates, glass and other objects with high dielectric density; the obstruction (non-metal /glass) should keep a distance of 15mm or more.
