DALI Daylight Harvesting Bus Powered Surface Mounted Daylight Sensor MS13

  • DALI Daylight Harvesting Bus Powered Surface Mounted Daylight Sensor MS13
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MS13
Minimum Order Quantity 500pcs
Price Negotiation
Packaging Details Packed in bubble bags firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T, Western Union
Supply Ability 20,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage DC 9.5-24V (DALI Bus Powered） Working Current < 15mA
Control Method Dimming/switching Instructions In DALI Protocol Daylight Detection Range 5-1200 Lux
Installation Height 2.5-4m Operating Temperature -25℃~50℃
Wiring Screw Terminal, Diameter: 0.75-1.5mm2
High Light

CE DALI Protocol Daylight Sensor

,

MS13 Surface Mounted Daylight Sensor

,

Bus Powered Daylight Sensor
Leave a Message
Product Description

DALI Daylight-harvesting Bus-powered Surface-mounted Daylight Sensor MS13





​

1. Feature



1) Optical lens and photoelectric sensor are used to collect light illuminance, high accuracy and fast response.

2) Compatible with remote control and digital encoder for daylight harvesting setting.

3) Grouped broadcast and grouped settings are supported with BCD encoder.

4) Independent surface mounting for convenient installation.

5) One sensor can control 64 DALI drives divided into maximum 15 groups.

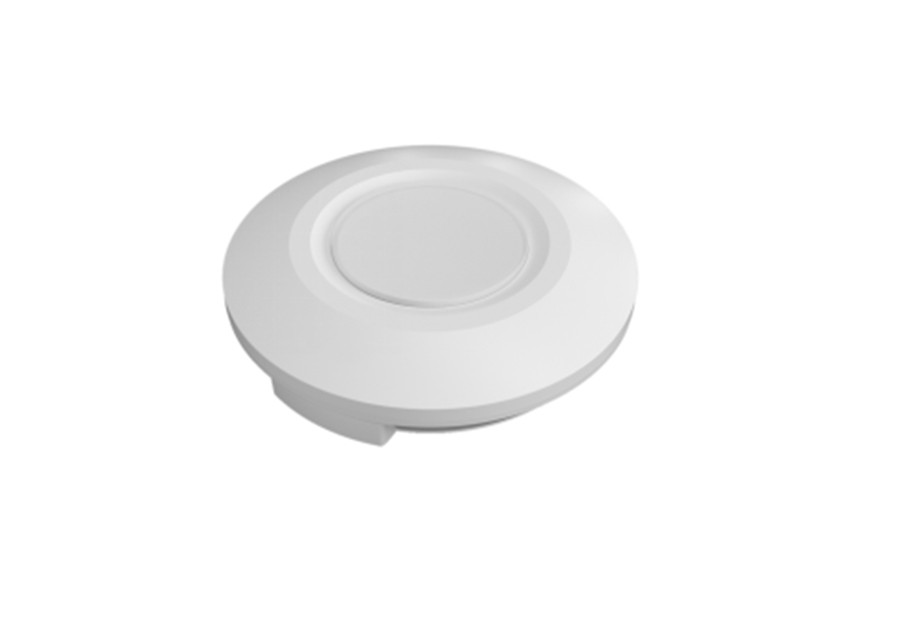

DALI Daylight Harvesting Bus Powered Surface Mounted Daylight Sensor MS13 0

2. Parameter



Operating Voltage Range DC 9.5-24V (DALI bus powered)
Working Current ≤15mA
Control Method dimming/switching instructions in DALI protocol
Daylight Harvesting Setting digital encoder and remote control
Daylight Detection Range 5-1200 Lux (collect the illuminance value of the ground directly below the product at a height of 3m)
Installation Height 2.5-4.0m
Installation surface-mounted
Wiring screw terminal, diameter: 0.75-1.5mm2
Operating Temperature -25℃...+50℃
Storage Temperature -25℃...+80℃






























3. Function

1) Along with DALI driver and lamps, MS13 realizes the self-adjusting daylight harvesting function.



2) After the successful setting with remote control or digital encoder, when the external light illuminance becomes bright, the daylight sensor will lower the brightness of the lamp.When the external light illuminance becomes dark, accordingly the light sensor will reduce the brightness of the lamp. The brightness is adjusted to make the light illuminance value of the environment in a relatively constant state.



3) Daylight harvesting function setting method and steps with remote control: after the 5S product initialization, DALI dimming is 100%, press DH MODE button of the remote control or long press the digital encoder 3S to enter the daylight harvesting mode. The light illuminance of the mode can be adjusted to an appropriate brightness, otherwise, it will automatically learn the current brightness as constant brightness after 3S.



4) Daylight harvesting function setting method and steps with digital encoder (DH/dimming)



rotate one grid right rotate one grid left long press 3S(switchable) short press(switchable)
DIM+ DIM- DH Mode Override DH Light On Light Off




For more please check the data sheet MS13 DALI Daylight-harvesting Bus-powered Spec.pdf...
