| Place of Origin: | China |
|---|---|
| Brand Name: | Merrytek |
| Certification: | CE |
| Model Number: | MSA001 S1 |
| Minimum Order Quantity: | 500pcs |
| Price: | Negotiation |
| Packaging Details: | Color box + flat card + outer box (K=A) |
| Delivery Time: | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms: | T/T or Western Union or PayPal |
| Supply Ability: | 10,000pcs per month |
| Rated Voltage: | 220-240VAC | Working Mode: | ON-OFF Function |
|---|---|---|---|
| Load Capacity: | 800W (Resistive), 400w(Inductive) | Detecting Area (radius): | ≥3m |
| Frequency: | 5.8 GHz ±75 MHz, ISM Band | Mounting Height: | 2.5-4m |
| Cut Size: | Φ55mm-Φ60mm | ||
| High Light: | 5.8G Microwave Motion Sensor,Stand Alone Compact Microwave Motion Sensor,Smart Home MSA001 S1 Microwave Motion Sensor |
||

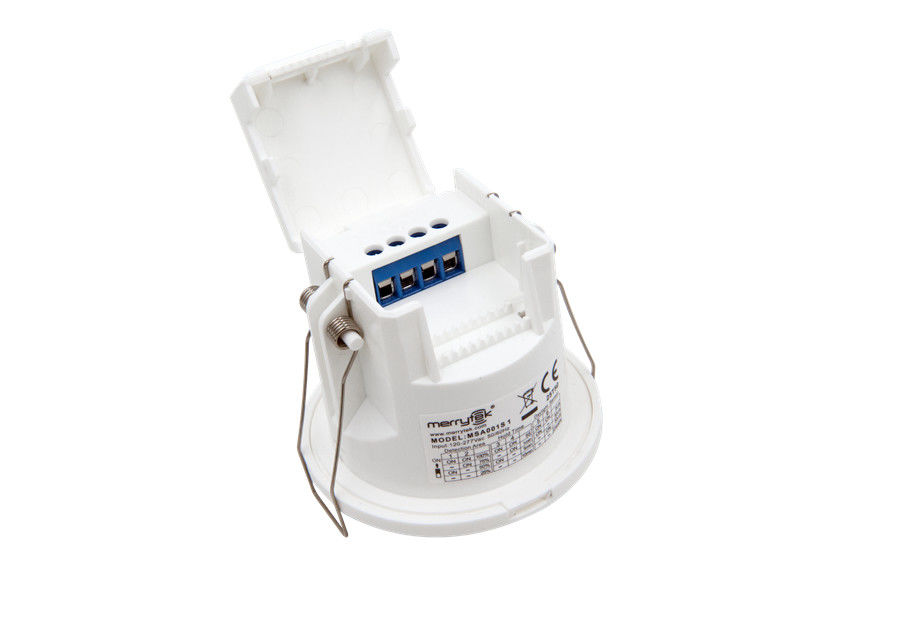

Stand Alone Compact 5.8G Microwave Motion Sensor 55mm Cut Size For smart home applciation MSA001S 1
1. Feature
1) Low impedance sensor antenna patent helps anti-interference of kinds wireless signal like 5G, Wi-Fi, Bluetooth, etc.
2) Parameters can be set by DIP switch.
3) Compact size for Independent flush mounting.
4) Switching power supply design, complys with ERP directive.
2. Parameter
| Input | Operating Voltage Rage | 1220-240v AC |
| Stand-by Power | ≤0.5W | |
| Surge Test | L--N: 1kV | |
| Output | Working Mode | Dry contact (P1-P2 is a normally open relay) |
| Type of Load | Inductive or Resistive Load | |
| Load Capacity | Resistive | |
| Sensor Parameters | Operating Frequency | 5.8 GHz ±75 MHz,ISM Band. |
| Transmitting Power | 0.5mW Max. | |
| Hold Time | 5S/1Min/5Min/10Min | |
| Detection Area | 100%/75%/50%/25% | |
| Daylight Sensor | 5lux/30lux/50lux/Disable (diffuse state) | |
| Detecting Area (radius) | ≥3m | |
| Mounting Height | 2.5-4m | |
| Detecting Angle | 120° | |
|
Operating Environment |
Operating Temperature | -25℃…+50℃ |
| Storage Temperature |
Temperature: -40℃…+80℃; Humidity: 10%-95% (non-condensing) |
|
| Certificate Standards | Safety Standards | EN61058-1 |
| EMC Standards | EN300440 EN301489-1 EN55015 EN61547 EN62479 | |
| Environmental Requirement | Compliant to RoHS | |
| Certificate | Compliant to CE, RED | |
| Others | Wiring | screw type terminals, wire diameter: 0.75-1.5mm2 |
| IP Rating | IP20 | |
| Protection Class | Class II | |
| Installation | Flush-mounted | |
| Cut size | Φ55mm-Φ60m | |
| Package | White box+ White box tags+ Clapboard+ Carton(K=A) | |
| Lifetime | 5 years warranty @Ta 230V full load | |
|
Note 1. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 165cm height person and walking speed is 0.5m/s. |
||
3. Function
