| Product Name: | Microwave Motion Sensor | Operating Voltage: | 198-264V AC 50/60Hz |
|---|---|---|---|
| Transmitting Power: | 1mW Max. | Rated Load: | 800W@230Vac (Inductive),1000W@230Vac(Resistive) |
| HF System: | 5.8GHz ±75MHz, ISM Wave Band | Approval: | CE, RED |
| Operation Temperature: | -25℃…+60℃ | Function: | ON/OFF Function, 2-step Dimming Function, 3-step Dimming Function |
| IP Rating: | IP20 | Detecting Radius: | 4-7m(mounting Height 8m) |
| High Light: | Dimmable Microwave Motion Sensor,5.8GHz High Frequency Microwave Motion Sensor,5.8GHz High Frequency Dimmable Motion Sensor |
||

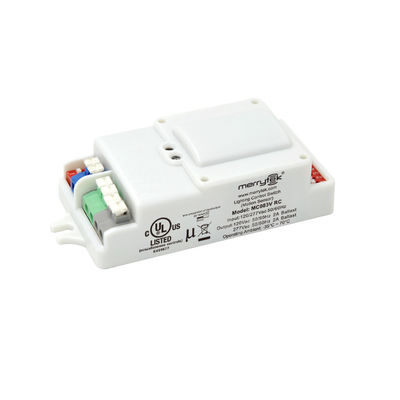

High Frequency Microwave Motion Sensor Dimmable Motion Sensor MC083V
Description
Function:
1- ON-OFF function
2- step dimming function
3- step dimming function
Detection Patter:
Ceiling mounting
|
Ceiling mounted height: 3m Sensitivity: 100%/75%/50%/10% |
Ceiling mounted height: 9m Sensitivity: 100%/75%/50%/10% |
Ceiling mounted height: 15m(*) Sensitivity: 100%/75%/50% |
|
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
Normal moving (Speed:1m/s) |
|
Slow moving (Speed 0.3m/s) |
Slow moving (Speed 0.3m/s) |
Slow moving (Speed 0.3m/s) |
* Only 100%/75%/50% detection sensitivity is workable when installed at 15m mounting height. 10% sensitivity is not able to detect motion signal.
Wall mounting
|
Horizon mounted height: 2m Sensitivity: 100%/75%/50%/10% |
|
|
Normal moving (Speed:1m/s) |
Slow moving (Speed 0.3m/s) |
Specifications:
| Operating voltage |
198-264V AC 50/60Hz |
| Rated load |
800W (Inductive), 1000W (Resistive) @230V AC |
| HF system | 5.8GHz±75MHz, ISM wave band |
|
Stand-by Power |
≤0.5W |
| Transmitting power |
0.5mW Max. |
| Detection zone Max.(D x H) | 6m x 15m |
| Motion detection | 0.3~3m/s |
| Detection angle | 150°(wall installation) 360°(ceiling installation) |
| IP rating | IP20 |
| Operation temperature |
-25℃…+60℃ |
| Hold time |
5S/30S/90S/3min/20min/30min |
|
Detection Area |
100%/75%/50%/10% |
| Daylight sensor |
2Lux/5Lux/10Lux/25Lux/50Lux/100Lux/Disable |
|
Stand-by DIM Level |
25%(2.2-2.5V)/35%(3.0-3.5V)/50%(5.0-5.5V) |
| Life time | 50,000 hours |
| Guaranty | 5 years |
DIP Switch Setting
Detection Area
| 1 | 2 | ||
| Ⅰ | ON | ON | 100% |
| Ⅱ | ON | - | 75% |
| Ⅲ | - | ON | 50% |
| Ⅳ | - | - | 10% |
Hold Time
| 3 | 4 | 5 | ||
| Ⅰ | ON | ON | ON | 5s |
| Ⅱ | - | ON | ON | 30s |
| Ⅲ | ON | - | ON | 90s |
| Ⅳ | - | - | ON | 3min |
| Ⅴ | ON | ON | - | 20min |
| VI | - | - | - | 30min |
Stand-by Period
| 6 | 7 | 8 | ||
| Ⅰ | ON | ON | ON | 0s |
| Ⅱ | - | ON | ON | 5s |
| Ⅲ | ON | - | ON | 5min |
| Ⅳ | - | - | ON | 10min |
| Ⅴ | ON | ON | - | 30min |
| VI | - | ON | - | 60min |
| VII | - | - | - | +∞ |
Stand-by Dim Level
| 1 | 2 | ||
| Ⅰ | ON | ON | 50% |
| Ⅱ | ON | - | 35% |
| Ⅲ | - | - | 25% |
Daylight Sensor
| 1 | 2 | 3 | 4 | 5 | 6 | ||
| Ⅰ | ON | ON | ON | ON | ON | ON | 2lux |
| Ⅱ | - | ON | ON | ON | ON | ON | 5lux |
| Ⅲ | ON | - | ON | ON | ON | ON | 15lux |
| Ⅳ | ON | ON | - | ON | ON | ON | 25lux |
| Ⅴ | ON | ON | ON | - | ON | ON | 50lux |
| VI | ON | ON | ON | ON | - | ON | 100lux |
| VII | ON | ON | ON | ON | ON | - | Disable* |
* Disable means the daylight sensor does not work. The sensor will turn on light once motion is detected regardless of ambient light level.
Applications:
Car park, etc
