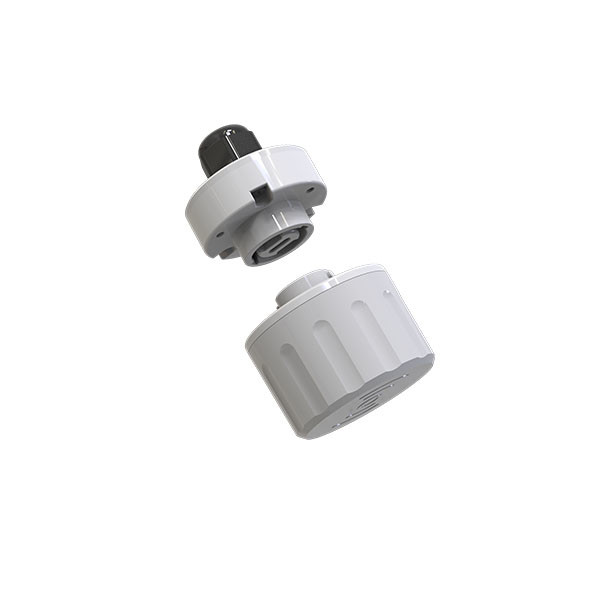

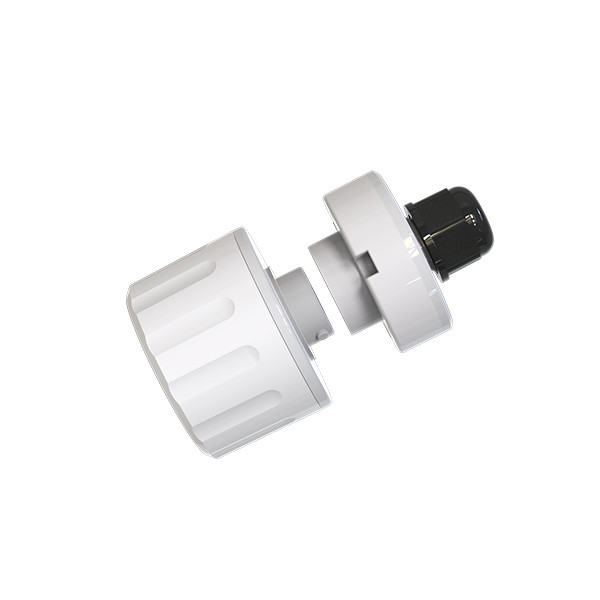

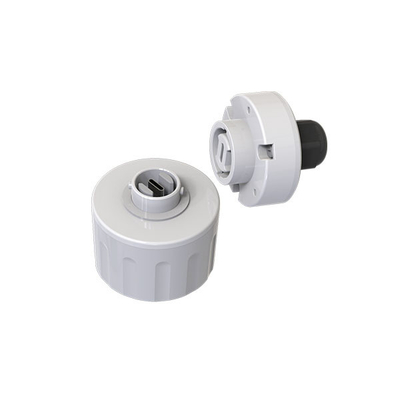

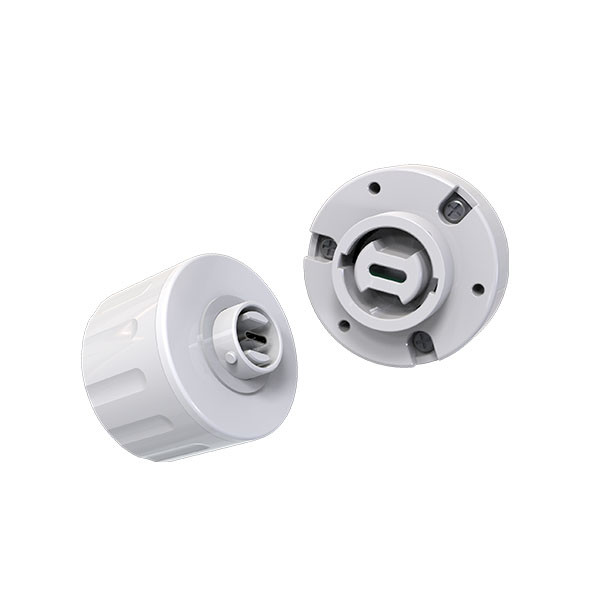

MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses

  • MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
  • MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
  • MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
  • MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC079D 99C
Minimum Order Quantity 100PCS
Packaging Details Packed in bubble bags firstly, amd then reinforced with carton for outer packing
Delivery Time 1, Sample ans small order: Within 5 working days 2, Bulk order: within 3-4 weeks
Payment Terms T/T
Supply Ability 10,000pcs per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

DC Controller Microwave Motion Sensor

,

IP65 Waterproof DC Controller

,

Microwave Motion Sensor For Warehouses
Leave a Message
Product Description

【Product Feature】

  • Low impedance planar antenna; High-gain
  • International general Type -C interface
  • 15 meters maximum installation height, suitable for most warehouses
  • Mini Microwave motion detector for High Bay Lights.
  • Junction box free design, IP65 waterproof
  • Ultra-low RF power output, harmless to human health
  • Sensor parameters can be adjusted by remote
  • The sensing range is adjustable (high sense/low sense) , suitable for different installation environments
  • Not affected by temperature, humidity, noise, airflow, dust, light etc.
  • Automatic swing structure , easy to plug and play.

MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 0MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 1MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 2MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 3
Input
Rated voltage 11-13VDC
Working current <30mA
Ripple voltage <100mVp-p
output
Output signal 10 -10VDC dimming signal
Sensor parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmitting power 3mW Max.
Daylight priority Switch ON 5Lux/15Lux/30Lux/50Lux 100Lux 150Lux
Switch OFF 150Lux 200Lux 300Lux
Dimming level 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)
Detection range (radius) Ceiling installation 12m high: 0.3m/s≥4m, 1m/s≥3m;
Installation height 12m (15m Max )
3db beam angle 82°@XZ plane
95°@YZ plane
Environment
Working temperature -35~60℃
Storage temperature -40℃~80℃, humidity ≤85% (non-condensing)
Certification standards
Certified CE
Environmental requirements Comply with RoHS 2.0 , Reach requirements
IP Rating IP65
Input
Rated voltage 11-13VDC
Working current <30mA
Ripple voltage <100mVp-p
output
Output signal 10 -10VDC dimming signal
Sensor parameters
Working frequency 5.8GHz ±75MHz, ISM band
Transmitting power 3mW Max.
Daylight priority Switch ON 5Lux/15Lux/30Lux/50Lux 100Lux 150Lux
Switch OFF 150Lux 200Lux 300Lux
Dimming level 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V)
Detection range (radius) Ceiling installation 12m high: 0.3m/s≥4m, 1m/s≥3m;
Installation height 12m (15m Max )
3db beam angle 82°@XZ plane
95°@YZ plane
Environment
Working temperature -35~60℃
Storage temperature -40℃~80℃, humidity ≤85% (non-condensing)
Certification standards
Certified CE
Environmental requirements Comply with RoHS 2.0 , Reach requirements
IP Rating IP65
Other
Wiring Tpye C
Installation requirements built-in installation
Packaging requirements Clapboard + Carton(K=A)
Net weight Body: 40.6±3g Base: 26.6±3g
Lifetime 5 years warranty @Ta

【Function description】

  1ON-OFF function Stand-by Period be set to “0s”
  12-step dimming Stand-by Period be set to “+∞”
  13-step dimming Stand-by Period be set to “10s/1min/3min/5min/10min/30min”
  1Daylight priority Remote press DH Mode and Daylight Sensor be set to “5Lux/15Lux/30Lux/50Lux/100Lux/150Lux”
  ○Daylight harvesting N/A

MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 4MC079D 99C DC Controller Microwave Motion Sensor IP65 Waterproof For Warehouses 5
