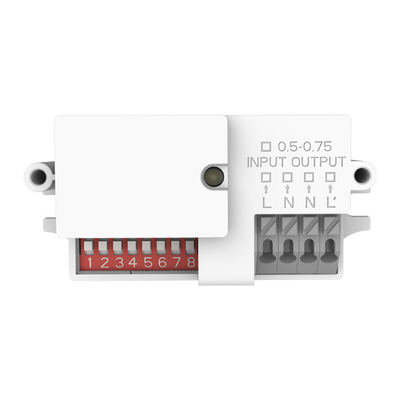

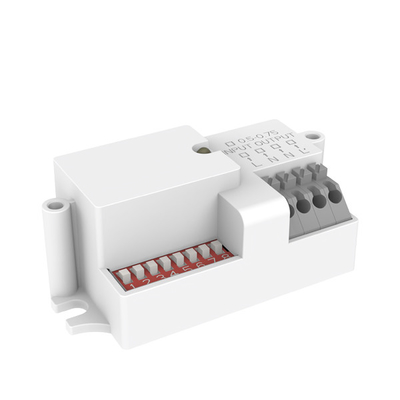

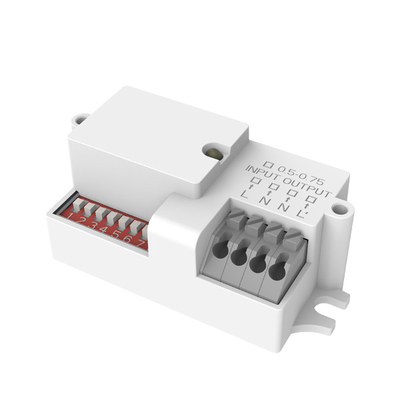

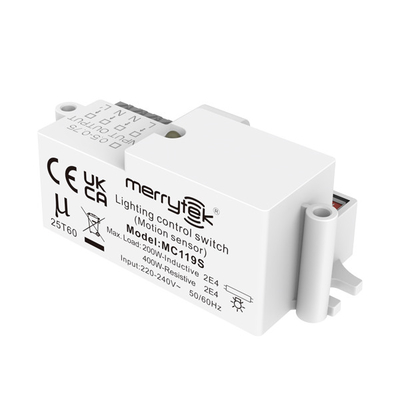

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light

  • MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
  • MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
  • MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
  • MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light
Place of Origin Shenzhen
Brand Name merrytek
Certification CE,UKCA
Model Number NC119S
Minimum Order Quantity 100
Price Negotiation
Packaging Details Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage Range 220-240Vac Stand-by Power <0.1W
Surge Test 1KV(L/N，EN61000-4-5) Working Mode On/off
Load Capacity 200w LEDs Max Surge Capacity 20A (50% Ipeak, Twidth =500uS, 230Vac Full Load, Coldstart); 40A (50% Ipeak, Twidth =200uS, 230Vac, Full Load, Coldstart）
Operation Frequency 5.8GHz±75MHz Transmitting Power 1mW Max
Hold Time 5S/30S/1min/3min/5min/10min/20min/30min Detection Area 100%/75%/50%/25%
Daylight Threshold 2Lux/10Lux/25Lux/50Lux/Disable(Ambient Diffusion Status) Detection Radius (100% Detection Area) Ceiling Mounting At 3m Height: 0.3m/S ≥3.5m，1m/S≥2.5mWall Mounting At 2m Height: 0.3m/S ≥8m，1m/S ≥4m
Mounting Height Typical Value: 3m（4m Max) Detecting Angle Ceiling Mount 150°
Operating Temperature -25℃~60℃ TC 80℃
IP Rating IP20 Protection Class Class II
Installation Built-in Dimension 61.0*29.0*23.0mm
Life Time 50,000hours @Ta 230V Full Load
High Light

on/off function motion sensor

,

Mini motion sensor For Triproof Light

,

DIP switches Mini motion sensor
Leave a Message
Product Description

MC119S on/off function motion sensor mini size for wall lamp and tri-proof light for euro market



Features



1. Conform to new ERP standards; low stand-by power.

2. 5.8GHz microwave license-free ISM wave band; bulk order arecompliant with RED approval.

3. Compact size design, can be built-in most of light fixtures.

4. Simple to operate: adjusting DIP switches to change detectionarea, hold time, daylight sensor and other parameters.

5. Input and output terminals are convenient for connecting



Please download the spec.sheet:

MC119S spec. 2023.05.06.pdf



Function



On/OFF Function

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 0

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 1

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 2



MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 3

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 4

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 5

MC119S On/Off Function Motion Sensor Mini Size For Wall Lamp / Triproof Light 6
