IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay

  • IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay
  • IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay
  • IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification UL 8750(Pending)
Model Number MC079D IR Z
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Voltage 12±1VDC Output Signal 0 -10VDC Dimming Signal
Detection Mode PIR Detection Detection Range (radius) 2-4m (indoor,sensitivity 100%,no Direct Sunlight To Sensor)
Installation Height Typical 10m (12m Max ) Working Temperature 0~35℃
IP Rating IP65 Lifetime 3 Years Warranty @Ta
Highlight

12m PIR Motion Detector

,

PIR Motion Detector for UFO highbay

,

UFO highbay ip65 pir sensor
Leave a Message
Product Description

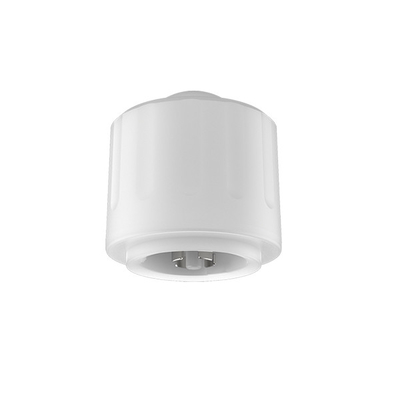

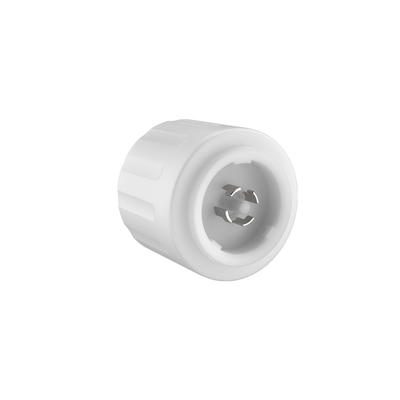

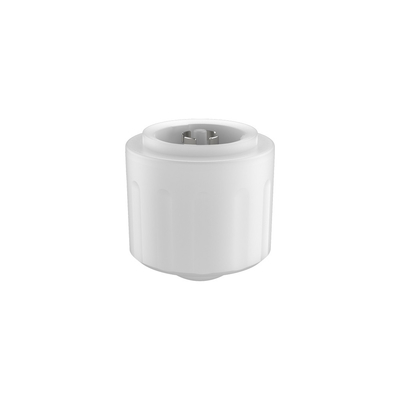

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay


Product Feature】



  • Thimble interface;Earphone interface; Zhaga interface
  • 12 meters maximum installation height, suitable for most warehouses
  • Mini Microwave motion detector for High Bay Lights.
  • IP65 design
  • Sensor parameters can be adjusted by remote
  • High mounting PIR sensor

       IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 0     IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 1IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 2


【Parameters】



Input
Rated voltage 12±1VDC
Operating Voltage 12V DC
Ripple voltage <100mVp-p
output
Output signal √0 -10VDC dimming signal
Sensor parameters
Detection mode PIR detection
Daylight priority Switch ON 5Lux/15Lux/30Lux/50Lux 100Lux 150Lux
Switch OFF 150Lux 200Lux 300Lux
Dimming level 10%, 20%, 30%, 50%
Detection range (radius) 2-4m (indoor,sensitivity 100%,no direct sunlight to sensor)
Installation height Typical 10m (12m Max )
Environment
Working temperature 0~35℃
Storage temperature -20℃~+80℃ Humidity: 10%-95% (non-condensing)
Certification standards
Certified UL 8750(Pending)
Environmental requirements Comply with RoHS 2.0 , Reach requirements
IP Rating IP65
Other
Wiring Thimble interface
Installation requirements Mount center or side of highbay
Packaging requirements Clapboard + Carton(K=A)
Net weight 80g
Lifetime 3 years warranty @Ta


【Function description】



ON-OFF function Stand-by Period be set to “0s”
2-step dimming Stand-by Period be set to “+∞”
3-step dimming Stand-by Period be set to “10s/1min/3min/5min/10min/30min”
Daylight priority Remote press DH Mode and Daylight Sensor be set to “5Lux/15Lux/30Lux/50Lux/100Lux/150Lux”
Daylight harvesting N/A




【Product Information】

  • Dimension (Unit:mm)

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 3


  • Function

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 4


  • Wiring

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 5



MC079D IR A                MC079D IR DI                MC079D IR Z



  • Installation Instruction




IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 6



【Detection Range】


IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 7



【Remote】



  • MH12

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 8


  • MH10

IP65 Rated PIR Motion Detector with 12m mounting height for UFO highbay 9



【Initialization】



After switch on power,sensor will be warmed 45-60s then start to work.



【Default setting】



Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s


【Application Notice】

  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
  • PIR sensor can’t penetrate any materials, please make sure no obstacle between sensor and moving people/object.
  • Sensor may hard to detect people if wear thick clothes in cold winter.
  • Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
  • Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
  • The dimming performance could be different when work with different 0-10V drivers.
  • The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
  • Detection distance is related to height of people, mounting height, mounting angle, working environment,and etc.
  • Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
  • This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
  • When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
