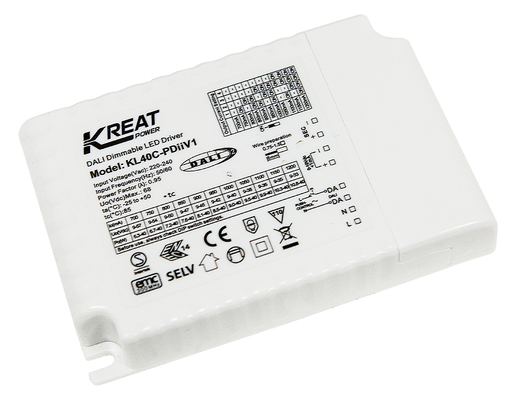

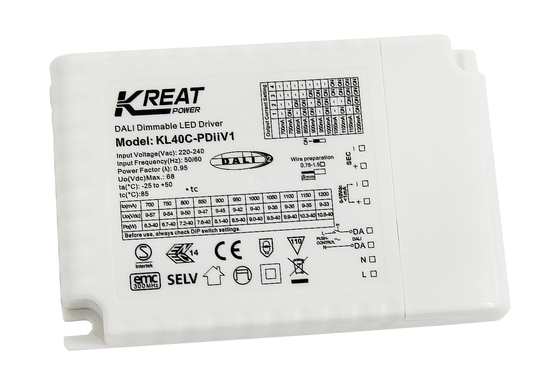

All In One Including DALI2 1/10V PUSH Dimming With Adjustable Current 700ma -1200ma 40W Constant Dimmable Driver
Place of Origin | Shenzhen, China |
---|---|
Brand Name | KREATPOWER |
Certification | ENEC, SEMKO, CB, CE |
Model Number | KL40C-PDiiV1 |
Minimum Order Quantity | 100pcs |
Price | Negotiable |
Packaging Details | white box+ Instructions Clapboard Outer Carton(K=A) |
Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit. |
Payment Terms | T/T |
Supply Ability | 20,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOperating Voltage | 198-264VAC 50Hz /60Hz | Power Factor | ≥0.95 @230VAC (Full Load) |
---|---|---|---|
Stand-by Power | ≤0.5W(@230Vac When PUSH Or DALI Turn Off) | Operating Mode | Constant Current |
Load Type | LED | Operating Temperature | -25℃~50℃ Humidity:85% (Non-condensing) |
IP Rating | IP20 | Life | 50000h @Ta Full Load |
Highlight | All in one constant dimmable driver,Adjustable Current DALI2 Dimmable LED Driver,40W Constant Dimmable Driver |
All in one including DALI2 , 1/10V , PUSH dimming with adjustable current 700ma -1200ma 40W constant dimmable driver
【Product Feature】
- Flicker-free for whole dimming range
- Stand-by power below 0.5W
- Primary dimming with push button
- Secondary dimming with 1-10V dimmer and potentiometer
- Built-in DALI interface DT6
- Supports 10V PWM dimming (3KHz-8KHz)
- Protection: short circuit / over temperature/ over voltage
- Derating current for over high ambient temperature
- Push dim with memory function
- 5 year warranty
【Parameter】
Input | Operating Voltage | 198-264VAC 50Hz /60Hz | |||||
Rated Input Voltage | 220-240VAC 50Hz /60Hz | ||||||
DC Input Voltage range | 200-240VDC | ||||||
Input Current | 0.22A Max. | ||||||
Input Inrush Current | <15A (Half current pulse width 100US) @230VAC | ||||||
Power Factor | ≥0.95 @230VAC (Full load) | ||||||
Total harmonic distortion | Typical: 13% (@230Vac, 100% load) | ||||||
Stand-by Power | ≤0.5W(@230Vac when PUSH or DALI turn off) | ||||||
Efficiency | 86%Max. @230VAC (Full load) | ||||||
Wiring Method | Push terminal, wire cross section:0.75-1.5mm2 | ||||||
Automatic circuit breaker (Calculate current in the wire) |
type | C10 | C13 | C16 | C20 | C25 | |
Number | 30 | 40 | 50 | 70 | 80 | ||
type | B10 | B13 | B16 | B20 | B25 | ||
Number | 20 | 25 | 30 | 45 | 50 | ||
Output | Operating mode | Constant Current | |||||
Load type | LED | ||||||
Flickering / Flickering-Free | Flicker value: less than 2% for whole dimming range | ||||||
Start up time | <1s (@230Vac) | ||||||
No-load output voltage | 68VDC Max. | ||||||
Load output voltage range | 6-58VDC | ||||||
Full load output power | 40W Max. | ||||||
Load output current | 600~1200mA : For details<Current gear setting> | ||||||
Constant current/voltage Precision | Constant Current Precision ±5% | ||||||
Wiring method | Push terminal, wire cross section:0.75-1.5mm2 | ||||||
Control Method | Primary PUSH Dimming | Primary PUSH dimming (Max.lead length:20M) | |||||
1-10V Dimming | 1-10V dimming(Port current<1MA) (Max.lead length:20M) |
||||||
Dimming Range | Primary PUSH & DALI dimming: 0%-100% 1-10V dimming:2%-100% |
||||||
Primary PWM Dimming | 1-10V port PWM dimming (3KHZ-8KHZ) | ||||||
Potentiometer | Yes, 100kΩ | ||||||
DALI Dimming | DALI dimming (Max.lead length:300M) | ||||||
Exception Protection Requirements | Output over temperature protection |
Yes, without self recovery function(Can be inquired) | |||||
Output short circuit protection | Yes, without self recovery function(Can be inquired) | ||||||
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | |||||
Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | ||||||
Max. case temp(Tc) | 85℃ | ||||||
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | |||||
DALI protocol standard | IEC62386-102 IEC62386-207 DT6 | ||||||
Safety standard | EN61347-1 EN61347-2-13 | ||||||
Certification | ENEC SEMKO CB CE | ||||||
Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | ||||||
Others | Degrees of protection | IP20 | |||||
Type of protection | Class II | ||||||
Installation type | Independent installation | ||||||
Installation dimension | 123*79*24mm | ||||||
Blackout memory function | Yes, PUSH blackout memory | ||||||
PUSH dimming synchronization | 20 units Max. | ||||||
Packaging requirement | white box+ Instructions Clapboard Outer Carton(K=A) | ||||||
Weight | 162g | ||||||
Life | 50000h @Ta full load | ||||||
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified. |
【Dimension (Unit:mm)】
【Wiring Diagram】
- Fig. A Push Dimming
- Fig.B DALI Dimming
- Fig. C 1-10V Dimming
【Derating】
【Dimming curve】
【Current gear setting】
Current(mA) | DIP | Pomax(W) | Uout(V) | ||||
1 | 2 | 3 | 4 | ||||
700 | - | - | - | - | 39.9 | 9~ | 57 |
750 | ON | - | - | - | 40.5 | 9~ | 54 |
800 | - | ON | - | - | 40.0 | 9~ | 50 |
850 | ON | ON | - | - | 39.9 | 9~ | 47 |
900 | ON | - | ON | - | 40.5 | 9~ | 45 |
950 | - | ON | ON | - | 39.9 | 9~ | 42 |
1000 | ON | ON | ON | - | 40.0 | 9~ | 40 |
1050 | - | - | ON | ON | 39.9 | 9~ | 38 |
1100 | ON | - | ON | ON | 39.6 | 9~ | 36 |
1150 | - | ON | ON | ON | 39.1 | 9~ | 34 |
1200 | ON | ON | ON | ON | 39.6 | 9~ | 33 |
【ON/OFF & Description of Dimming Operation】
A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.
B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.
C. Memory: PUSH dimming has dimming memory function.
D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S
E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
【Attention】
1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
