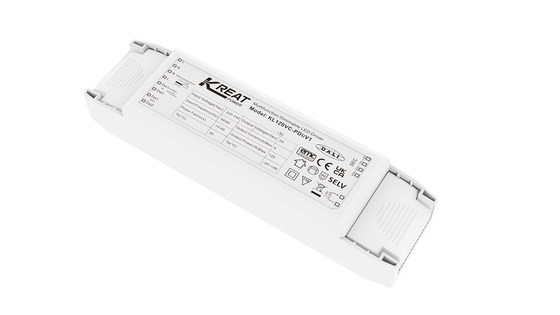

DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection

  • DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection
Place of Origin Shenzhen, China
Brand Name KREATPOWER
Certification CE
Model Number KL120V-PDiiV1
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Instruction+clapboard+outer carton
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Approvals CE Rated Supply Voltage 220~240Vac 50Hz /60Hz
DALI Function DALI Dimming Power Factor ≥ 0.99（@230Vac,100% Load）
Stand-by Power ≤0.3W Wiring Method Push Terminal, Wire Cross Section:0.5-1.5mm2
High Light

KL120V-PDiiV1 DALI Dimmable LED Driver

,

Short Circuit Protection Dimmable LED Driver

,

DALI Interface Dimmable LED Driver
Leave a Message
Product Description

DALI 2 Dimmable LED driver for KL120V-PDiiV1



1. Description:



1) Supports 10V PWM dimming (3KHz-8KHz)

2) Protection: short circuit / over temperature/ over voltage

3) Derating current for over high ambient temperature

4) Push dim with memory function

5) Built-in DALI interface DT6



2. Specifications



Series Name KL90V-PDiiV KL90V-PDiiV1 KL120V-PDiiV1
Input Voltage range 198~264Vac 50Hz /60Hz
Rated supply voltage 220~240Vac 50Hz /60Hz
DC voltage range 200~240Vdc
Input current (@230Vac) 0.46A Max 0.45A Max 0.6A Max
Inrush Current 30A (Half current pulse width 100US) @230VAC
Power factor ≥ 0.99 (@230Vac,100% load)
Total harmonic distortion Typical: 6% (@230Vac, 100% load)
Stand-by power ≤0.3W
Efficiency(230Vac,100% load) 91%Max 92%Max 92%Max
Wiring method Push terminal, wire cross section:0.5-1.5mm2
Loop-in&Loop-out quantity 16PCS(@230Vac) 16PCS(@230Vac) 12PCS(@230Vac)
Automatic circuit breaker type
(Calculate current in the wire)		 B10 13 C10 7 B10 13 C10 7 B10 10 C10 6
B13 16 C13 9 B13 16 C13 9 B13 13 C13 7
B16 20 C16 11 B16 20 C16 11 B16 16 C16 9
B20 25 C20 14 B20 25 C20 14 B20 20 C20 11
B25 32 C25 17 B25 32 C25 17 B25 26 C25 14
Output Operating mode Constant voltage
Load type LED
Flickering / Flickering-Free Flickering-Free
Start up time <1s (@230Vac)
Forward voltage 12V 24V 24V
Output current 7.5A 3.75A 5A
Max. output voltage (no-load ) 20V 30V 30V
Full load output power 90W Max. 90W Max. 120W Max.
Minimum load 9W 9W 12W
Output Output current/voltage tolerance ±5%
Wiring method Screw terminal, wire cross section:2*0.5-2.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max. lead wire length:20m)
1-10V(0-10V)Dimming 1-10V dimming(Port current＜1mA),
(Max. lead wire length:20m)
Dimming Range 1%-100%
Secondary PWM dimming 0-10V port PWM dimming (3KHz-8KHz)
Potentiometer Yes, 100kΩ
DALI function DALI dimming (Max. lead wire length:300m)
Exception Protection Requirements Output over temperature
protection		 Yes, reset power on to recover
Output short circuit protection Yes, reset power on to recover

Operating

Environment

 Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Operating temperature/ humidity -25~50℃ -25~50℃ -25~40℃
Max. case temp(Tc) 85℃ 85℃ 90℃
Safety
& EMC		 EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
DALI standard IEC62386-102, IEC62386-207
Safety standard EN61347-1, EN61347-2-13
Certification CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 202*58*30mm
Memory function Yes, (PUSH with memory function)
PUSH dimming synchronization 20 units Max.
Packaging requirements Instruction+clapboard+outer carton(K=A)
Weight 400g
Life 5 years @Ta 100% load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.








3. Dimension (Unit:mm):

DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 0





4. Wring Diagram:



DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 1

Fig. A DALI Dimming

DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 2

Fig.B Push Dimming

DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 3

Fig.C 0-10V Dimmin



5. Derating



DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 4DALI Dimmable LED Driver for KL120V-PDiiV1 Built-in DALI Interface Short Circuit Protection 5



6. ON/OFF & Description of Dimming Operation



A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming:

Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory:

PUSH dimming has dimming memory function.

D. Dimming synchronization:

The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode:

Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.
F. Constant voltage dimming drivers cannot be used in lamps with constant current circuits.
