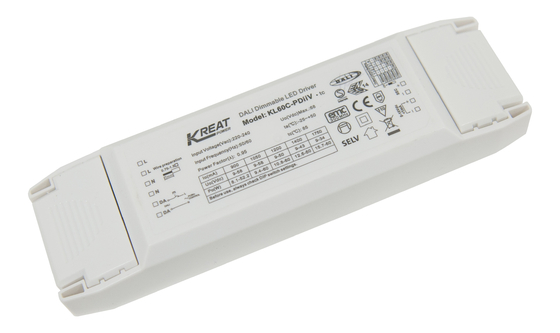

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty

  • Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty
Place of Origin Shenzhen, China
Brand Name KREATPOWER
Certification ENEC, SEMKO, CB, CE
Model Number KL60C-PDiiV
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details White box+ Instructions Clapboard Outer Carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 4-5 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 20,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 198-264VAC 50Hz /60Hz Power Factor ≥ 0.95（@230Vac,100% Load）
Stand-by Power ≤0.5W（@230Vac When PUSH Or DALI Turn Off） Operating Mode Constant Current
IP Rating IP20 Installation Dimension 202*58*30mm
Weight 245g Life 50000h @Ta Full Load
High Light

1-10V Dim LED driver

,

60W Dim LED driver

,

Three in one Dim LED driver
Leave a Message
Product Description

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty



【Product Feature】

  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Secondary dimming with 1-10V dimmer and potentiometer
  • Built-in DALI interface DT6
  • Supports 10V PWM dimming (3KHz-8KHz)
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty



【Parameter】

Input Operating Voltage 198-264VAC 50Hz /60Hz
Rated Input Voltage 220-240VAC 50Hz /60Hz
DC Input Voltage range 200-240VDC
Input Current 0.33A Max.
Input Inrush Current <15A (Half current pulse width 100US) @230VAC
Power Factor ≥ 0.95 (@230Vac,100% load)
Total harmonic distortion Typical: 15% (@230Vac, 100% load)
Stand-by Power ≤0.5W (@230Vac when PUSH or DALI turn off)
Efficiency 86%Max (@230Vac,100% load)
Wiring Method Push terminal, wire cross section:0.75-1.5mm2

Automatic circuit breaker

(Calculate current in the wire)

 type C10 C13 C16 C20 C25
Number 25 30 40 50 66
type B10 B13 B16 B20 B25
Number 15 20 25 28 30
Output Operating mode Constant Current
Load type LED
Flickering / Flickering-Free Flicker value: less than 2% for whole dimming range
Start up time <1s (@230Vac)
No-load output voltage 68VDC Max.
Load output voltage range 6-58VDC
Full load output power 60W Max.
Load output current 900~1750mA : For details<Current gear setting>
Constant current/voltage Precision Constant Current Precision ±5%
Wiring method Push terminal, wire cross section:0.75-1.5mm2
Control Method Primary PUSH Dimming Primary PUSH dimming (Max.lead length:20M)
1-10V Dimming 1-10V dimming(Port current＜1MA)
(Max.lead length:20M)
Dimming Range Primary PUSH & DALI dimming: 0%-100%
1-10V dimming:2%-100%
Primary PWM Dimming 1-10V port PWM dimming (3KHZ-8KHZ)
Potentiometer Yes, 100kΩ
DALI Dimming DALI dimming (Max.lead length:300M)
Exception Protection Requirements Output over temperature
protection		 Yes, without self recovery function(Can be inquired)
Output short circuit protection Yes, without self recovery function(Can be inquired)

Operating

Environment

 Operating temperature/ humidity -25℃~50℃ Humidity:85% (Non-condensing)
Storage temperature/ humidity -40℃~80℃, Humidity:10%–95%
Max. case temp(Tc) 85℃

Safety & EMC

 EMC standard EN55015 EN61547 EN61000-3-2 EN61000-3-3
DALI protocol standard IEC62386-102 IEC62386-207 DT6
Safety standard EN61347-1 EN61347-2-13
Certification ENEC SEMKO CB CE
Withstand voltage 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”)
Others Degrees of protection IP20
Type of protection Class II
Installation type Independent installation
Installation dimension 202*58*30mm
Blackout memory function Yes, PUSH blackout memory
PUSH dimming synchronization 20 units Max.
Packaging requirement white box+ Instructions Clapboard Outer Carton(K=A)
Weight 245g
Life 50000h @Ta full load
Note: All parameters are tested at the input voltage of 230Vac and 25 degree environment unless specified.


【Dimension (Unit:mm)】

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 0



【Wiring Diagram】

  • Fig. A Push Dimming

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 1

  • Fig.B DALI Dimming

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 2

  • Fig. C 1-10V Dimming

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 3



【Derating】

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 4



【Dimming curve】

Three in one DALI2 PUSH 1-10V Dim LED driver 60W with 5 years warranty 5



【Current gear setting】

Current(mA) DIP Pomax(W) Uout(V)
1 2 3 4
900 - - - - 52.2 9～ 58
1050 - - - ON 59.8 9～ 57
1200 - - ON ON 60.0 9～ 50
1400 - ON ON ON 60.2 9～ 43
1750 ON ON ON ON 59.5 9～ 34



【ON/OFF & Description of Dimming Operation】

A. Short press the PUSH switch (short press time 0.1S-1S), the LED driver will turn on or off.

B. Dimming: Press and hold the PUSH switch (1S-8S), the LED driver can achieve dimming, brightening or dimming, the dimming range is 2-100%.

C. Memory: PUSH dimming has dimming memory function.

D. Dimming synchronization: The power connected to the same PUSH switch can be synchronized by pressing and holding the PUSH switch for longer than 15S

E. DALI dimming mode: Connect the power supply to the DALI system, and it can be dimmed by the DALI host. The dimming range is 0-100%.



【Attention】

1) The LED string must be connected to the load before turning on the input power, otherwise the LED string may be damaged.

2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
