M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20

  • M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20
  • M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MC159S IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 220-240V AC Surge Test 1KV（L/N, EN61000-4-5）
Stand-by Power ≤0.5W Function ON/OFF Function
Detecting Area (radius) ≥3m Max. Mounting Height 12m
Installation M20 Maile Thread IP Rating IP65
High Light

M20 Infrared PIR Motion Detector

,

IP20 Infrared PIR Motion Detector

,

LED Triproof Light PIR Motion Detector
Leave a Message
Product Description

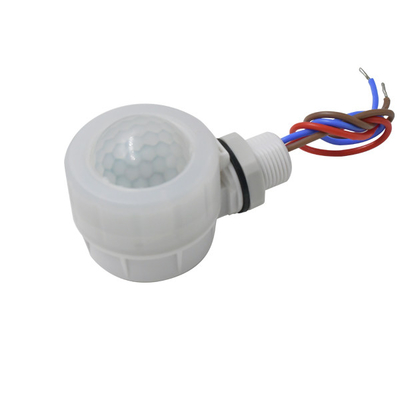

M20 male side thread infrared sensor motion detector for LED triproof light IP20





1. Features



1) Designed for LED batten or tri-proof fixtures with M20 male thread.
2) Easily programming detection area, hold time, and daylight threshold by the MH10 remote control.

3) Support max. mounting height of 12m, can be used in parking lots and warehouses.



2. Parameters



Input
Operating Voltage 220-240Vac
Rated Voltage 230Vac
Stand-by Power ≤0.5W
Surge Test 1KV(L/N, EN61000-4-5)
Output
Working Mode ON/OFF
Load Type Inductive Load/Resistive Load
Load Power 400W@230VAC(Inductive Load),800W @230VAC(Resistive Load).
Load Surge Current 30A (50% Ipeak, Twidth 200us @230Vac full load, cold start)
Sensor Parameters
Detection Way PIR
Hold Time 5s/30s/1min/3min/5min/10min/20min/30min
Detection Area 100%/75%/50%/25%
Daylight Sensor 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (Diffusion)
Detection Range(Radius)

Ceiling Mounting at 10m high: r≥3m@0.6~1m/s



Test condition: 100% sensitivity, indoors, no direct sunlight to sensor,

no wind, Temperature 25℃
Mounting Height 10m (12m Max)
Environment
Operating Temperature -20℃~+55℃
Storage Temperature -40℃~+80℃, humidity≤85%(Non-condensing)
Certificate Standards
Safety (LVD) standard EN61058-1-2, EN61058-1
Surge 1KV(L/N, EN61000-4-5)
EMC Standards EN55015
Environmental Requirement Compliant to RoHS 2.0, Reach
Certificates CE, RED
IP Rating IP65
Product classification Class II
Others
Wiring Lead wire, wire diameter: 0.75mm2
Installation External side mounting
Package Bubble bag + cardboard + outer carton(K=A)
Net Weight 77g
Lifetime 3 years warranty@Ta 230Vac full load





3. Dimension



M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 0

4. Wiring Diagram



M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 1

M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 2

5. Start Process & Initialization



After powering on, the sensor automatically turns on the light to 100% brightness and turns off the light in 45±5 seconds. During initialization, the sensor is not able to detect movement.



6. Factory Settings



Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable



7. Detection radiation

M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 3



8. Installation Instruction



M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 4





10. Remote Control



M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 5

M20 Male Side Thread Infrared PIR Motion Detector For LED Triproof Light IP20 6
