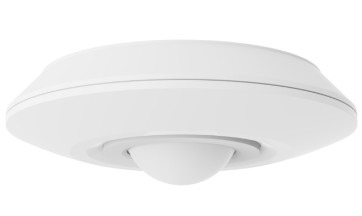

12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting

  • 12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA222D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12Vdc - 24Vdc Working Current 20mA MAX.
Stand-by Power ≤0.5W @12Vdc/24Vdc Working Mode NO/NC Dry Contact Output
Detecting Area (radius) ≥2.5m Mounting Height 2.5-4m
Installation Surface Mounted Working Temperature 0℃~35℃
High Light

surface mounting pir infrared sensor

,

12Vdc To 24Vdc Pir Infrared Sensor

,

Dry Contact surface mounted pir sensor
Leave a Message
Product Description

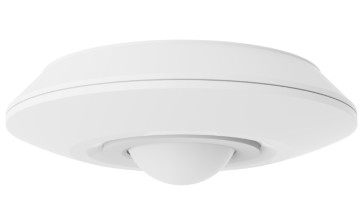

12Vdc to 24Vdc input dry contact pir infrared sensor with surface mounting





1. Features

1) PIR motion detection
2) Accurate NO/NC dry contact output
3) Daylight sensor detection available
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 5-8m in diameter
6) The factory setting is NO (normally open) dry contact, yet can switch to NC (normal close) by remote
7) Hallway and Toilet motion detection is highly recommended
8) Compacted mini size for perfect ceiling mounting



2. Parameters



Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time

DIP: 5s/1min/3min/5min/10min/30min

MH10remote: 5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor

DIP: 50Lux/Disable

MH10remote: 5Lux/15Lux/30Lux/50Lux/

100Lux/150Lux/Disable
Radius detection range(based on 100% sensitivity) 2.5-4m based on 3m mounting height
Remote control Available
Mounting height 2.5-4m typical value:3m
Application environment Installation Surface mounting
Working temperature 0℃...+35℃
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension

12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting 0

4. Wiring Diagram & Function

12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting 1

5. Start Process & Initialization

When powered on, the sensor indicator will turn off after flashing for 10S and will not detect a moving signal during this time. After 10S,you can use our MH10 remote or dip switch to adjust detection area, hold time, daylight sensor etc



6. Factory Settings

Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable



7. Detection radiation

12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting 2

8. DIP Settings



Detection Area

  1 2
100% ON ON
75% - ON
50% ON -
25% - -



      Hold Time

  3 4 5 6
Ⅰ ON ON ON ON 5S
Ⅱ ON - ON ON 1min
Ⅲ ON ON - ON 3min
Ⅳ ON ON ON - 5min
Ⅴ ON ON - - 10min
Ⅵ - - ON ON 20min
Ⅶ - - - - 30min

      Daylight Sensor

  7 8 9
Ⅰ ON ON ON 5Lux
Ⅱ - ON ON 50Lux
III ON - ON 100Lux
Ⅳ ON ON - 150Lux
Ⅴ - - - Disable*



       **Once the daylight sensor is set as Disable, our motion sensor will detect human movement regardless of the environment lux



10. Remote Control

12Vdc To 24Vdc Input Dry Contact Pir Infrared Sensor With Surface Mounting 3
