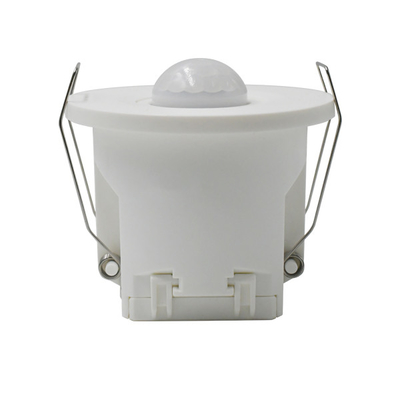

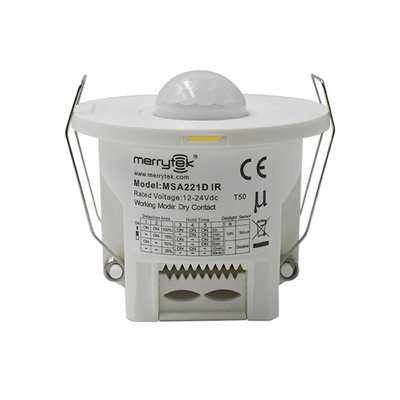

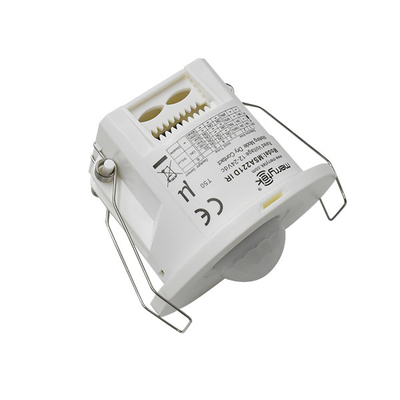

Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems

  • Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems
  • Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems
  • Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA221D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12Vdc/24Vdc Working Current 20mA MAX.
Stand-by Power ≤0.5W Function Dry Contact Output
Detecting Area (radius) ≥2.5m Mounting Height 2.5-4m
Installation Flush-mounted Cut Size Φ55mm
High Light

Dry contact Pir Infrared Motion Sensor

,

Flush Mounted Pir Infrared Motion Sensor

,

Smart Lighting flush mount pir sensor
Leave a Message
Product Description

IP20 Flush Mounted PIR movement Sensor for the corridor with max. 6m mounting height





1. Features



1) PIR motion detection
2) Accurate NO/NC dry contact output
3) Daylight sensor detection is available
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 5-8m in diameter
6) Factory setting is NO dry contact, yet can switch to NC by remote
7) Hallway and Toilet motion detection is highly recommended
8) For surface mounted version, you may check MSA222D IR



2. Parameters



Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time

DIP: 5s/1min/3min/5min/10min/30min

MH10remote: 5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor

DIP: 50Lux/Disable

MH10remote: 5Lux/15Lux/30Lux/50Lux/

100Lux/150Lux/Disable
Radius detection range(based on 100% sensitivity) 2.5-4m based on 3m mounting height
Remote control Available
Mounting height 2.5-4m typical value:3m
Application environment Drill hole Φ55mm
Working temperature 0℃...+35℃
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available



3. Dimension



Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems 0Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems 1

4. Wiring Diagram



Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems 2

5. Start Process & Initialization



When powered on, the sensor indicator will turn off after flashing for 10S and will not detect a moving signal during this time. After 10S, you can use our MH10 remote or dip switch to adjust the detection area, hold time, and daylight sensor.



6. Factory Settings



Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable



7. Detection radiation

Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems 3

8. DIP Settings



                                                                                     Detection Area



  1 2
100% ON ON
75% - ON
50% ON -
25% - -





                                                                                        Hold Time



  3 4 5
Ⅰ ON ON ON 5S
Ⅱ - ON ON 1min
Ⅲ ON - ON 3min
Ⅳ - - ON 5min
Ⅴ ON ON - 10min
Ⅵ - - - 30min





                                                                                       Daylight Sensor



  6
Ⅰ ON 50Lux
Ⅱ - Disable



       **Once the daylight sensor is set as Disable, our motion sensor will detect human movement regardless of the environment lux



10. Remote Control



Flush Mounted Dry Contact Pir Infrared Motion Sensor For Smart Lighting Control Systems 4
