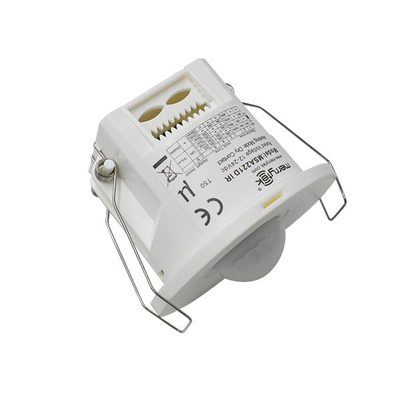

10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20

  • 10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA015D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 12Vdc/24Vdc Working Current 20mA MAX.
Stand-by Power ≤0.5W Function NO/NC Dry Contact (Factory Setting Is NO Dry Contact)
Detecting Area (radius) ≥4m Max. Mounting Height 10m
Working Temperature 0℃~35℃ Cut Size Φ65-70mm
High Light

10m Infrared PIR Motion Sensor

,

12Vdc Infrared PIR Motion Sensor

,

IP20 Infrared PIR Motion Sensor
Leave a Message
Product Description

10m mounting height 12Vdc dry contact infrared pir motion sensor detector IP20


1. Features
1) PIR motion detection
2) Accurate NO/NC dry contact output
3) Daylight sensor detection is available
4) Detection area, hold time, and daylight threshold can be set by remote/DIP switch
5) Max detection range: 8-10m in diameter
6) 10m max mounting height
7) Warehouse, workshop, and lobby motion detection is highly recommended

2. Parameters

Input/Output Input voltage 12-24V DC
Rated voltage 12/24V DC
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal NO/NC dry contact (Factory setting is NO dry contact)
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time

DIP: 5s/1min/3min/5min/10min/20min/30min

MH10remote:5s/30s/1min/3min/5min/10min/20min/30min
Daylight Sensor

DIP: 5Lux/50Lux/150Lux/Disable

MH10remote: 5Lux/15Lux/30Lux/50Lux/100Lux/

150Lux/Disable
Radius detection range(based on 100% sensitivity) 4-5m based on 10m mounting height
Remote control Available
Mounting height typical value:10m
Application environment Drill hole Φ65-70mm
Working temperature 0℃...+35℃
Storage temperature -40℃~+80℃
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension


10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 010m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 1

4. Wiring Diagram


10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 210m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 3
5. Start Process & Initialization

When powered on, the sensor indicator will turn off after flashing for 10S and will not detect a moving signal during this time. After 10S,you can use our MH10 remote or dip switch to adjust detection area, hold time, daylight sensor, etc

6. Factory Settings

Detection Area: 100% Hold Time: 5s Daylight Sensor: Disable

7. Detection radiation

10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 4
8. DIP Settings


                                                                                     Detection Area



  1 2
100% ON ON
75% - ON
50% ON -
25% - -



                                                                                        Hold Time


  3 4 5 6
Ⅰ ON ON ON ON 5S
Ⅱ ON - ON ON 1min
Ⅲ ON ON - ON 3min
Ⅳ ON ON ON - 5min
Ⅴ ON ON - - 10min
Ⅵ - - ON ON 20min
Ⅶ - - - - 30min



                                                                                       Daylight Sensor


  7 8
Ⅰ ON ON 5Lux
Ⅱ - ON 50Lux
III ON - 150Lux
Ⅳ - - Disable


       **Once the daylight sensor is set as Disable, our motion sensor will detect human movement regardless of the environment lux

10. MH10 Remote Control


10m Mounting Height 12Vdc Dry Contact Infrared PIR Motion Sensor Detector IP20 5
