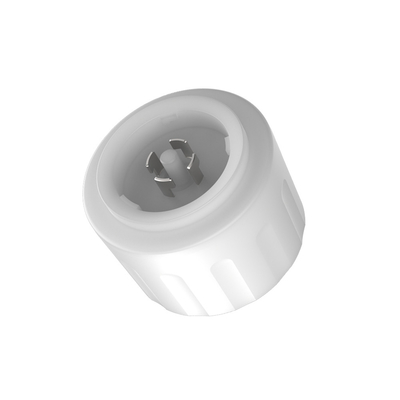

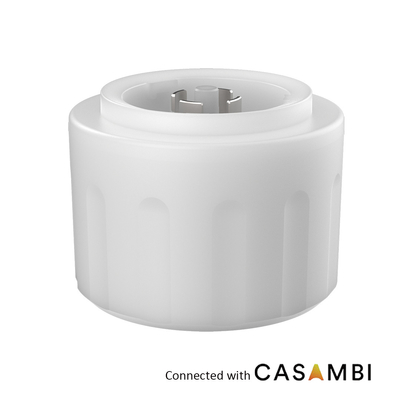

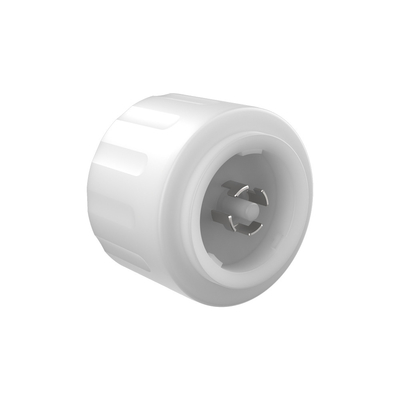

Casambi App Setting Indoor 0-10V Microwave Motion Sensor for Warehouse With 15M Installation
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC079D 99 ZB1 |
| Minimum Order Quantity | 100PCS |
| Price | Negotiation |
| Packaging Details | Clapboard + Carton |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 12±1V DC | Working Current | 40±5mA |
|---|---|---|---|
| Ripple Voltage | <100mVp-p | Output Signal | 0 -10VDC Dimming Signal |
| Working Frequency | 5.8GHz ±75MHz, ISM Band | BLE Module | Casambi Bluetooth Module CBM-003B |
Product Description
Casambi App Setting Indoor 0-10V Microwave Motion Sensor for Warehouse With 15M Installation
【Product Feature】
- 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output.
- 0--10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
- Mini size MW motion detection sensor
- Indoor maximum mounting height is 15m
- All sensor parameters can be set by Casambi App setting
【Parameters】
| Input | |
| Rated voltage | 12±1V DC |
| Working current | 40±5mA |
| Ripple voltage | <100mVp-p |
| Output | |
| Output signal | 0 -10VDC dimming signal |
| Sensor parameters | |
| Working frequency | 5.8GHz ±75MHz, ISM band |
| Transmitting power | 3mW Max. |
| Sensor sensitivity | Casambi App setting |
| Daylight Priority | Casambi App setting |
| Stand-by dim level | Casambi App setting |
| Detection range (radius) | Ceiling installation 12m high: 0.3m/s;r≥4m, 1m/s; r≥3m; |
| Installation height | 12m (15m Max ) |
| Wireless parameters | |
| BLE Module | Casambi Bluetooth module |
| Working frequency | 2.402-2.480GHz |
| Transmitting power | +7dBm(max) |
| Transmission distance | 20m(Visible distance) |
| Fixture ID | 32022 |
| Environment | |
| Working temperature | -35~60℃ |
| Storage temperature | -40℃~80℃, humidity ≤85% (non-condensing) |
| Certification standards | |
| Certification | CE |
| Environmental requirements | Comply with RoHS 2.0 , Reach requirements |
| IP Rating | IP65 |
| Other | |
| Wiring | Zhaga Book 18 interface |
| Installation requirements | built-in installation |
| Packaging requirements | Clapboard + Carton(K=A) |
| Net weight | N/A |
| Lifetime | 5 years warranty @Ta |
【Function Description】
| √ ON-OFF function | Casambi App setting |
| √ 2-step dimming | Casambi App setting |
| √ 3-step dimming | Casambi App setting |
| √ Daylight priority | Casambi App setting |
| √ Daylight harvesting | N/A |
| √ Network function | Casambi App setting |
【Product Information】
- Dimension (Unit:mm)
- Function
【Installation Instruction】
- Installation environment
Note
There should be no metal objects within 1.5 to 3m around the microwave sensor when installing, otherwise false trigger may be caused by reflection around the sensor.
【Detection Range】
【Initialization】
- The sensor turns on the light at 100% brightness, and will be turned off after 10 seconds. During initialization, the sensor is not able to detect movement.
【Default setting】
Sensitivity: 100%, Hold time: 10s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM level: 10%
【Application Notice】
- Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
- The distance is related to factors such as the moving speed of the moving object, the size of the moving object, the installation height, the installation angle, whether the installation environment is open, and the material of the reflector. The detection distance given in the specification is a typical value, it is 165cm/65kg people who walks in an open indoor environment
- The daylight threshold is in a sunny environment, no shadows, and ambient light diffuse reflection conditions. In different periods, climates, and environments, the daylight value detected by the light sensor may be different.
- Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer
- This sensor is only for indoor use, outdoor use may be false triggered by wind and rain, and surrounding moving objects.
- The installation height of the sensor product cannot exceed 15 meters, and the suitable height is 12 meters; the distance between the two sensors should be greater than 3 meters
- When the sensor is installed in a metal lamp, on a metal reflective surface, or in a narrow closed environment, the microwaves will be reflected multiple times and cause false triggering. Please reduce the sensor sensitivity or contact the manufacturer for technical support.
- Sensor is compatible with different 0-10V driver but dimming effect will be different.
- DC regulated power supply with stable output voltage and low ripple coefficient must be used. The ripple of the power supply should be less than 100mV ; the load current should be greater than 50 mA
- For the new installation environment, it is recommended to test 5pcs samples before installation.
