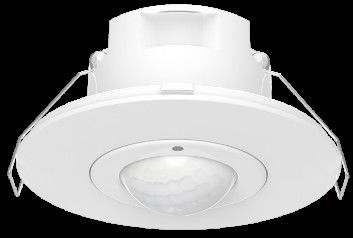

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function

Place of Origin China
Brand Name Merrytek
Certification CE
Model Number MSA017D IR
Minimum Order Quantity 100pcs
Price Negotiation
Packaging Details White box+ White box tags+ Clapboard+ Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 9.5-22.5V DC ( DALI BUS Power) Working Current 20mA MAX.
Power Consumption ≤0.5W Function PIR Motion Sensor + Daylight Sensor
Detecting Area (radius) 2.5-4m Mounting Height 2.5-6m
Installation Flush-mounted Cut Size Φ60mm
Leave a Message
Product Description

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function





1. Features

1) PIR motion detection
2) DALI2.0 Output, Complaint with 101,103,303,304 DALI standard
3) Daylight sensor detection is available
4) Detection area, and hold time can be set by remote
5) Max detection range: 5-8m in diameter
7) Warehouse, workshop and lobby motion detection is highly recommended



2. Parameters

Input/Output Input voltage 9.5-22.5V DC(DALI BUS power)
Working current 20mA max
Power consumption ≤0.5W @12/24V DC
Output signal DALI2.0
Sensor parameter Function PIR motion detection+ daylight sensor
Detection Area DIP or remote setting: 100%/75%/50%/25%
Hold Time MH10 remote: 5s/30s/1min/3min/5min/10min/20min/30min
Radius detection range(based on 100% sensitivity) 2.5-4m @25℃ based on 3m mounting height
Remote control Available
Mounting height 2-6m typical value:3m
Application environment Drill hole Φ60mm
Working temperature -25℃...+50℃(detection range might differ based on different temperature )
Storage temperature -40℃~+80℃
Warranty 3 years(available based on product quality problem)
Certificate Standard Certificate Compliant to CE
Environmental requirements Compliant to RoHS
IP rating IP20
“N/A” means not available

3. Dimension

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 0

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 1

4. Wiring Diagram

4.1 Broadcast mode Wiring Diagram

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 2

4.2 Grouping mode Wiring Diagram



DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 3





5. Factory Settings



Detection Area: 100% Hold Time: 5s



6. Detection radiation

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 4

8. Detection Signal

The product detects human moving signals and below is a description of the moving signals:

Moving signal: detect the human significant moving (walking) in the detection area.





9. Remote Control (MH10)

DALI2.0 Bus Power Supply pir motion sensor switch for lighting with max. 6m mounting height and grouping function 5
