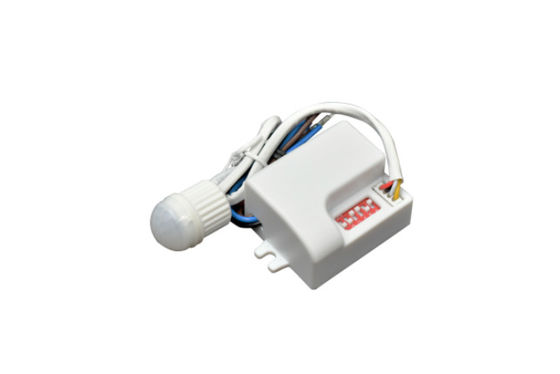

Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light

  • Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE, RED
Model Number MC113S D IR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble bag + cardboard + outer carton（K=A）
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 220-240Vac Stand-by Power ≤0.5W
Working Mode ON/OFF Mounting Height 3m (4m Max)
Operating Temperature -20℃~+55℃ Certificate CE, RED
Lifetime 3 Years Warranty@Ta 230Vac Full Load
Highlight

Compact Size PIR Sensor

,

4m Max PIR Sensor

,

Ceiling Light PIR Sensor
Leave a Message
Product Description

【Product Features】



  • Designed for LED fixtures, inside mounted split ON/OFF function PIR sensor.
  • Easily programming detection area, hold time and daylight threshold by DIP switch
  • Max mounting height 4m



【Parameters】



Input
Operating Voltage 220-240Vac
Rated Voltage 230Vac
Stand-by Power ≤0.5W
Surge Test 1KV(L/N, EN61000-4-5)
Output
Working Mode ON/OFF
Load Type Inductive Load/Resistive Load
Load Power 400W@230VAC(Inductive Load),800W @230VAC(Resistive Load).
Load Surge Current 30A (50% Ipeak, Twidth 200us @230Vac full load, cold start)
Sensor Parameters
Detection Way PIR
Hold Time 5s/30s/3min/10min DIP set
Detection Area N/A
Daylight Sensor 5Lux/15Lux//50Lux/Disable (Diffusion) by rotary switch
Detection Range(Radius)

Ceiling Mounting at 3m high, r≥3m@0.6~1m/s tangential direction

Wall mounting at 1.2m high, r≥6m@0.6~1m/s tangential direction

Test condition: 100% sensitivity, indoors, no direct sunlight to sensor,

no wind, Temperature 25℃
Mounting Height 3m (4m Max)
Environment
Operating Temperature -20℃~+55℃
Storage Temperature -40℃~+80℃, humidity≤85%(Non-condensing)
Certificate Standards
Safety (LVD) standard EN61058-1-2, EN61058-1
Surge 1KV(L/N, EN61000-4-5)
EMC Standards EN55015
Environmental Requirement Compliant to RoHS 2.0, Reach
Certificates CE, RED
IP Rating IP20
Product classification Class II
Others
Wiring Lead wire, AC wire :(L:Brown L’:Red N:Blue):wire diameter: 0.5mm2
Installation Inside mounting
Package Bubble bag + cardboard + outer carton(K=A)
Net Weight 43.4±3g
Lifetime 3 years warranty@Ta 230Vac full load



【Product Information】



  • Dimension (units: mm)

   Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light 0

  • Wiring & Function

Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light 1



【Installation Instruction】

​

​Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light 2



【Detection Range】



Compact Size Split ON/OFF Function PIR Sensor 4m Max Installation Suitable for Ceiling Light 3

【Initialization】



After power on, the sensor automatically turns on light to 100% brightness and turns off light in 12±3seconds. During initialization, sensor is not able to detect movement.



【Default setting】



Sensitivity: 100% Hold-time: 5s Daylight sensor: Disable



【Application Notice】



  • Sensor should be installed by a professional electrician. Please turn off power before installing, wiring.
  • The typical installation height is 3m. It’s for indoor use only, in order to avoid false trigger by the ambient temperature. Pls do not install in locations sensitive to temperature or airflow changes, to avoid sensing failure due to false trigger or high temperature.
  • Sensors should be kept away from air conditioners, refrigerators, exhaust vents, furnaces, and other places sensitive to changes in air temperature.
  • Sensors should not be obstructed by screens, furniture, large bonsai or other isolating objects within the detection range.
  • Reflective objects should be avoided directly in front of the sensor, reflecting light will cause the sensor to be triggered incorrectly.
  • Sensors should not be installed indoors directly in front of a window, otherwise the disturbance of thermal airflow outside the window and the movement of people will cause false alarms. The sensitivity of PIR sensors to the human body is also highly related to the direction of human movement, radial movement is at the least sensitivity, while highly sensitive to the cross section direction (perpendicular to the radius).
  • The distance detect standards: At night, indoor ambient temperature of 25℃, humidity 50-70%, the human body surface temperature of 36-37 degrees, people walk in the cross-section direction at the speed of 0.6 ~ 1m / s. The maximum sensing angle of the product is based on highest sensitivity setting, if set at low sensitivity can not fulfil the maximum sensing angle. The sensing distance is related to the height of the tester, the installation height and working environment etc.
  • As PIR sensor probe is relatively fragile, pls pay attention to protection during production, storage, handling, transportation, consumer installation, and need to be gently held and put under no effective protective packaging. If the product falls may cause the infrared probe to appear hidden cracks or damage to the inner chip, then it will not work or false trigger.
