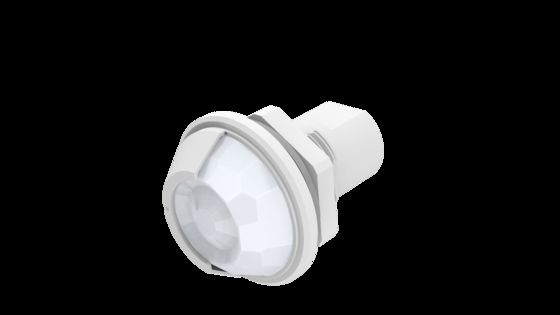

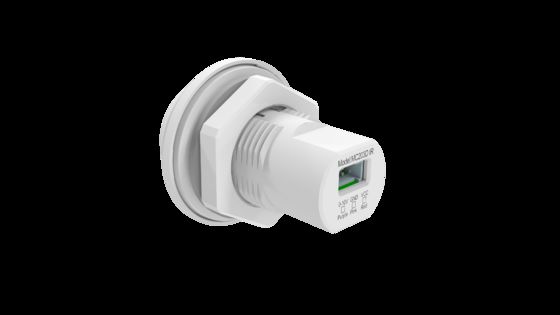

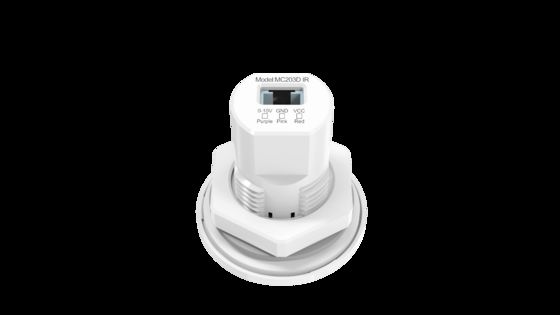

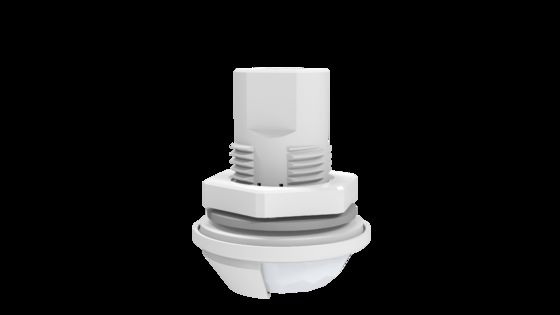

12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
| Place of Origin | Shenzhen, China |
|---|---|
| Brand Name | Merrytek |
| Certification | CE |
| Model Number | MC203D IR 1/ MC203D IR |
| Minimum Order Quantity | 100PCS |
| Price | Negotiable |
| Packaging Details | Clapboard + Carton(K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage | 12±1VDC | Work Current | <15mA |
|---|---|---|---|
| Output Signal | 5V PWM Dimming/ 0-10V Dimming | Mounting Height | Typical 3m (4.5m Max ) |
| Operating Temperature | -20℃-55℃ | Certificate | CE |
| Lifetime | 5 Years Warranty @Ta (indoor) | Detection Mode | PIR Detection |
| Highlight | 12Vdc dimmable PIR motion sensor,Zhaga Book20 PIR sensor,parking garage motion sensor |
||
Product Description
12Vdc Dimmable PIR Motion Sensor For Tri-proof Light, Zhaga Book20 Interface, Parking Garage Applicable
Product Features
- Zhaga20 interface
- 4.5meters maximum installation height, suitable for parking garage
- PIR motion detector for tri-proof light
- IP65 design
- Sensor parameters can be adjusted by remote
Technical Parameters
Input
| Rated voltage | 12±1VDC |
| Work current | <15mA |
| Ripple voltage | <100mVp-p |
Output
| Output signal | MC203D IR 1 | MC203D IR |
| 5V PWM dimming signal | 0-10V dimming signal |
Sensor Parameters
| Detection mode | PIR detection |
| Detection Area | 100% /75%/50%/25% |
| Hold Time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by Period | 0s/10s/1min/3min/5min/10min/30min/+∞ |
| Daylight Sensor | Daylight threshold: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/999Lux(Disable) (Ambient diffusion status) Daylight Priority: ON | OFF 5Lux: 55-105Lux 15Lux: 65-115Lux 30Lux: 80-130Lux 50Lux: 100-150Lux 100Lux: 150-250Lux 150Lux: 200-300Lux |
| Dimming level | 10%(1.4-1.6V) 20%(1.9-2.1V) 30%(2.9-3.1V) 50% (4.9-5.1V) |
| Detection range (radius) | 2-4m (indoor, sensitivity 100%,no direct sunlight to sensor; temperature25℃) |
| Installation height | Typical 3m (4.5m Max) |
Environment
| Working temperature(Ta) | -20℃-55℃ |
| Storage temperature | -40℃~+80℃ Humidity: ≤85% (non-condensing) |
Certification Standards
| Certified | CE |
| Environmental requirements | Comply with RoHS 2.0, Reach requirements |
| IP Rating | IP65 |
Other Specifications
| Wiring | Wire 3 PIN 378±8mm |
| Installation requirements | Mount center or side of highbay |
| Packaging requirements | Clapboard + Carton(K=A) |
| Net weight | 10±3g |
| Lifetime | 5 years warranty @Ta (indoor) |
When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive.
When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
Function Description
| ON-OFF function | Stand-by Period be set to "0s" |
| 2-step dimming | Stand-by Period be set to "+∞" |
| 3-step dimming | Stand-by Period be set to "10s/1min/3min/5min/10min/30min" |
| Daylight priority | Remote press DH Mode and Daylight Sensor be set to "5Lux/15Lux/30Lux/50Lux/100Lux/150Lux" |
| Daylight harvesting | N/A |
Product Information
- Dimension (Unit:mm)
- Wiring
Detection Range
Remote Control
Initialization
After switch on power, sensor will be warmed 45-60s then start to work.
Default Setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%
Application Notice
- The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
- PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
- Sensor may hard to detect people if wear thick clothes in cold winter.
- Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
- Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
- Due to continuous improvement, the contents of this instruction could be changed without prior notice.
- The dimming performance could be different when work with different 0-10V drivers.
- The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
- Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc.
This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
PIR Sensor Important Notes
PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Please pay attention to the following matters during actual use:
- Detecting heat sources other than the human body
- The temperature of the heat source does not change or the heat source does not move
- Other related environmental factors and violations of the PIR application principle impact
Possible False Triggering Scenarios
- When small animals enter the detection range
- When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
- When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.
Possible Non-Triggering Scenarios
- When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
- The heat source within the detection range hardly moves or moves at high speed.
