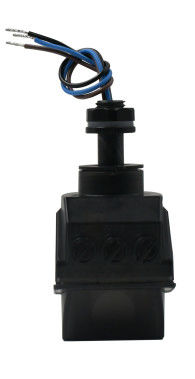

AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180°

  • AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180°
Place of Origin Shenzhen, China
Brand Name Merrytek
Certification CE
Model Number MC155S 99
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble bag+Clapboard + Carton(K=A)
Delivery Time 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Payment Terms T/T
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 220-240Vac 50/60Hz Stand-by Power ≤0.5W
Output Signal ON/OFF Mounting Height 2m (3m Max)
Operating Temperature -25℃…+60℃ Certificate CE
Lifetime 5 Years Warranty@Ta
Highlight

Wall Light Flood Light Sensor

,

AC ON/OFF Flood Light Sensor

,

180° Flood Light Sensor
Leave a Message
Product Description

【Product Features】



  • The pioneered sensor without side-lobe, avoid false trigger caused by microwave through wall, work with flood light, wall light etc.
  • Detection angle is up to 180°, no detecting blind zone.
  • Innovative algorithms, no false trigger caused by flies or raining/breeze(*).
  • IP65 rating.
  • 5 years warranty.

* There is no false trigger with moderate rain. In actual use, anti-raining trigger capability is related to installation location and way of LED light.



【Parameters】



Input
Rated Voltage 220-240Vac 50/60Hz
Stand-by Power ≤0.5W
Surge Test L-N: 1kV
Output
Output Signal ON/OFF
Type of Load Inductive or Resistive
Load Capacity 200W@230Vac(Inductive/LED) ;400W@230Vac(Resistive)
Max. Surge Capacity 20A(50% Ipeak, twidth =200uS, 230Vac full load, cold start);
Sensor Parameters
Working Frequency 5.8 GHz ±75MHz, ISM wave band
Transmitting Power 1mW Max.
Hold time 5s to 5min
Detection Area 25% to100%
Daylight Sensor 5Lux to 50Lux/Disable(diffuse reflection status)
Detection Area

Wall mounting height 2m: d≥8m@0.3m/s, d≥6m@1m/s

Test condition: Outdoor open space
Mounting Height 2m (3m Max)
Environment
Operating Temperature -25℃…+60℃
Storage Temperature -40~80℃ Humidity: ≤85% non-condensing
Certificate Standards
Certified CE
Environmental Requirements Comply with RoHS 2.0 Reach
IP Rating IP65
Other
Wiring Wire , wire diameter: 0.5mm2
Safety Grade Class II
Installation M12 screw mount
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 55.5±5g
Lifetime 5 years warranty@Ta



【Function】



ON/OFF function When daylight sensor is in Disable mode or ambient brightness is lower than the set value, the sensor triggers and enters the light-on state if motion detected. It maintains the light-on state and then enters the light-off state after hold time elapses if with no motion trigger.
Two-step dimming function N/A
Three-step dimming function N/A

Daylight harvesting

 N/A
Daylight priority N/A



【Product Information】



  • Dimension (units: mm)

   AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180° 0



  • Wiring & Function

AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180° 1



【Installation】

​

​AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180° 2

【Rotary Switch Setting】



AC ON/OFF Sensor For Flood Light And Wall Light, Detection Angle Up To 180° 3



【Initialization】



The light will be turned on 100% brightness after power on, and will be turned off after 10 seconds. During initialization, no external motion sensing signal will be detected.



【Default setting】



Sensitivity: 100% Hold time: 5s Daylight sensor: Disable



【Application Notice】



  • The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.
  • Sensitivity area is related to moving speed of objects, size of moving objects, mounting height, mounting angle, working environment, reflecting materials and etc.. Given detecting area is typical value that was measured by 165cm/65kg testers in an indoor open environment.
  • The detection area of the microwave sensor when installed on the wall will be greatly increased compared to when installed on the ceiling. If adopts wall ceiling, please reduce the sensitivity or contact our company to confirm the usage settings. The daylight thresholds are measured on a sunny day without shadow and in an ambient light diffuse reflection status. Different environment and climate cause different brightness values that daylight sensor measures.
  • Sensor parameters may need to be reconfigured in different installation environments, please refer to the following instructions or contact the manufacturer.
  • Sensor is for indoor use only. The waterproof effect for outdoor or half-outdoor use will be affected. Wind, rain, and moving objects may cause false triggering.
  • The installation height of the sensor product cannot exceed 6 meters, and the optimal height is 3 meters. The distance between the two sensors should be greater than 3m.
  • When the sensor is installed in a metal lamp, on a metal reflective surface, or in a small closed environment, the microwave will be reflected multiple times and cause false triggering. Please reduce the sensitivity of the sensor or contact the manufacturer for technical support.
  • Please make sure that there are no moving signals such as fans, DC motors, sewer pipes, air outlets, etc. around the sensor, otherwise the sensor may cause false triggering.
  • Microwaves cannot penetrate metal. Do not place product in a closed or a half-closed metal lamp. Neither metal nor glass is not allowed to cover above the product.
