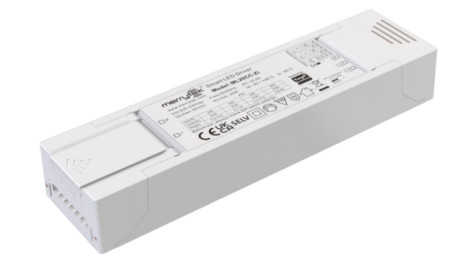

Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller

  • Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller
Place of Origin China
Brand Name Merrytek
Certification CE
Model Number ML20C-Zi
Minimum Order Quantity 50PCS
Packaging Details bubble bag+carton
Delivery Time sample: 3-5 working days
Payment Terms T/T
Supply Ability 40000pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 220-240Vac Input Current 0.13A Max.
Inrush Current 15A MAX. Power Factor ≥0.5W
Output Current 300/350/400/450/500/550/600/650/700mA Accuracy ±5%
Communication Tuya Zigbee 3.0 Transmitting Distance 20m Indoor
Warranty 5 Years IP Rating IP20
Highlight

LED Dimmable Power Supply Controller

,

20W LED Driver

,

Tuya Zigbee 3.0 LED Driver
Leave a Message
Product Description

Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller

【Product Feature】
*Tuya Zigbee3.0, work interactively with Tuya ecological chain smart devices
*0-100% deep dimming, single device,group device,e and scene control by the gateway
*Multiple output current set via dip switches, high PF and efficiency,low power consumption, long lifetime
*Two-level circuit, Flicker-free,F ade time setting, smooth dimming curve
*Dimming and color temperature tuning

Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 0Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 1Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 2Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 3

【Parameters】

Model No. ML20C-Zi ML20CC-Zi ML46C-Zi ML46CC-Zi
Input
Rated voltage 220-240V AC 50/60Hz
Input current 0.13A Max 0.12A Max 0.26A Max
Surge capacity <15A (100us alf-current) @230V AC ≤30A (100us alf-current) @230V AC
THD 20W full output 20W full output 46W full output 46W full output
@230V AC THD <15%
PF ≥0.95 @230V AC (full load)
Standby power <0.5W
Efficiency 84%Max@230V AC (full load) 88%Max@230V AC (full load)
Output
Working mode CC
Load type LED
Start time <1s (@230V AC full load)
Ripple current ±5% (@230V AC, 100% load, LED load)
Flicker rate Flicker free in full dimming range (flicker rate <5%)
No load output voltage 60V DC Max 65V DC Max 70V DC Max
Full output power 20W (single output) 20W(dual output) 46W (single output) 46W (dual output)
Output current/voltage

300mA / 9-42V DC

350mA / 9-42V DC

400mA / 9-42V DC

450mA / 9-42V DC

500mA / 9-40V DC 550mA / 9-36V DC

600mA / 9-32V DC

650mA / 9-30V DC

700mA / 9-28V DC

250mA / 9-50V DC

300mA / 9-50V DC

350mA / 9-50V DC

400mA / 9-50V DC

600mA / 9-53V

650mA / 9-53V

700mA / 9-53V

750mA / 9-53V

800mA / 9-53V

850mA / 9-53V

900mA / 9-50V

950mA / 9-48V

1000mA / 9-46V

1050mA / 9-44V

700mA / 9-53V

750mA / 9-53V

800mA / 9-53V

850mA / 9-53V

900mA / 9-50V

950mA / 9-48V

1000mA / 9-46V

1050mA / 9-44V
Current accuracy ±5%
Wireless module
Protocol Zigbee
Module frequency 2.4GHz-2.484GHz 250Kbps Radiation power: 10dBm Receiver sensitivity:-101±2dBm
Transmitting range >20m (same floor)





Model No. ML20C-Zi ML20CC-Zi ML46C-Zi ML46CC-Zi
Abnormal protect
Protection mode Over voltage protection No load protection Short circuit protection
Environment
Working temp. -25~45℃
Storage temp. -40℃~80℃, humidity: ≤85% (non-condense)
Tc 85℃
Certificate
Comply to CE, CCC, TUV, SAA
Environment Comply RoHS 2.0, Reach
LVD standard EN61347-1, EN61347-2-13
Hi-pot test 3750VAC
EMC standard EN55015, EN61547, EN61000-3-2, EN61000-3-3
Surge L to N:1KV
IP rate IP20
Protection Class II
Others
Wiring Press-in terminals input wire: 0.5-2.5mm2 Output wire: 0.5-1.5mm2
Packing Paper box
Packing details Paper box+outer carton (K=A)
  1. weight
 109±5g 118±5g 145±5g 145±5g
Life time 5 years warranty @Ta 230V AC full load
Remark:
All parameters are tested under 230V AC input environment temp. 25℃



Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 4Tuya Zigbee 3.0 20W LED Driver Dimmable Power Supply Controller 5
