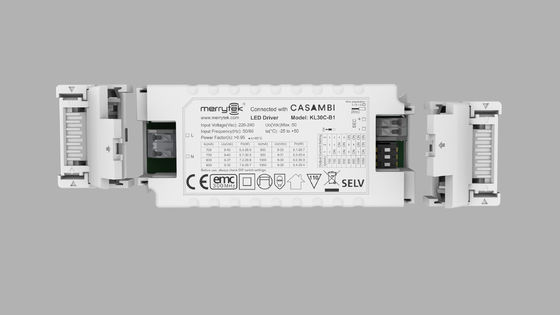

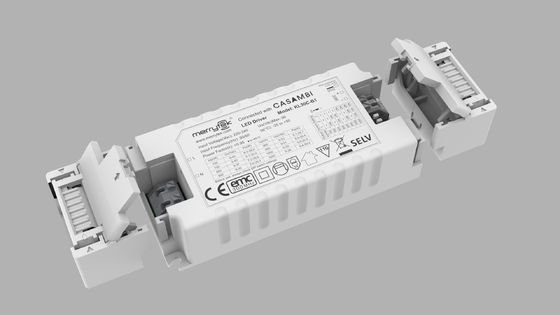

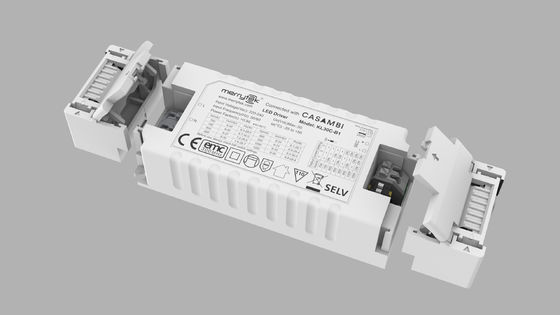

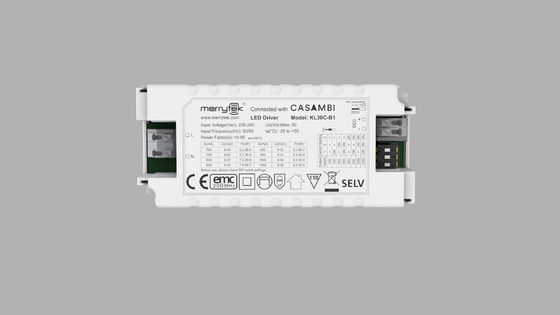

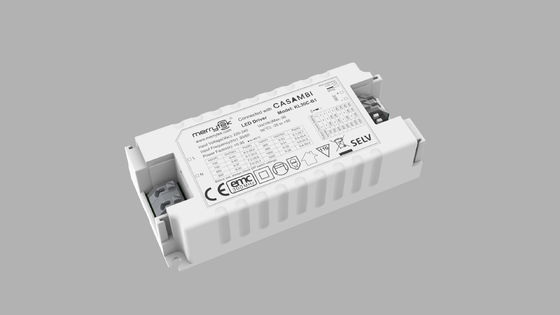

Multipower Wireless Casambi driver 30W with constant current output 700mA to 1050mA
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Voltage | 220-240Vac | Input Current | 0.17A Max. |
|---|---|---|---|
| Inrush Current | 25A MAX. | Power Factor | ≥0.96 |
| Output Current | 700-1050mA | Accuracy | ±5% |
| Communication | Casambi Bluetooth | Transmitting Distance | 30m Indoor |
| Warranty | 5 Years | IP Rating | IP20 |
| Highlight | 30W Wireless Casambi driver,Multipower Wireless Casambi driver,1050mA Wireless Casambi driver |
||
Product Description
Multipower Wireless Casambi driver 30W with constant current output 700mA to 1050mA
【Product Feature】
*Comply with Casambi smart lighting system
*Flicker-free for the whole dimming range
*Stand-by power below 0.5W
*Protection: short circuit / over temperature/ over voltage
*Derating current for overly high ambient temperature
*5-year warranty
【Parameters】
| Micro series | KL20C-B1 | KL30C-B1 | ||||||||||
| Input | Operating Voltage | 198-264VAC 50Hz /60Hz | ||||||||||
| Rated Input Voltage | 220-240VAC 50Hz /60Hz | |||||||||||
| DC Input Voltage range | 200-240VDC | |||||||||||
| Input Current | 0.12A Max. | 0.17A Max. | ||||||||||
| Input Inrush Current | <25A (Half current pulse width 100US) @230VAC | |||||||||||
| Power Factor | ≥0.93 @230VAC (Full load) | ≥0.95 @230VAC (Full load) | ||||||||||
|
Total harmonic distortion (@230Vac, 100% load) |
Typical: 13% | Typical: 20% | ||||||||||
| No-load power | ≤0.5W | |||||||||||
| Stand-by Power | ≤0.5W (@230Vac) | |||||||||||
| Efficiency(@230VAC Full load) | 83%Max. | 87%Max. | ||||||||||
| Wiring Method | Push terminal, wire cross section:0.75-1.5mm2 | |||||||||||
| Automatic circuit breaker | KL20C-B1 (Calculate current in the wire) | |||||||||||
| type | B10 | B13 | B16 | B20 | B25 | / | ||||||
| Number | 25 | 35 | 45 | 55 | 65 | / | ||||||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||||||
| Number | 60 | 70 | 80 | 110 | 130 | 160 | ||||||
| KL30C-B1 (Calculate current in the wire) | ||||||||||||
| type | B10 | B13 | B16 | B20 | B25 | / | ||||||
| Number | 25 | 30 | 40 | 50 | 60 | / | ||||||
| type | C10 | C13 | C16 | C20 | C25 | C32 | ||||||
| Number | 45 | 60 | 70 | 95 | 120 | 150 | ||||||
| Output | Operating mode | Constant Current | ||||||||||
| Load type | LED | |||||||||||
| Ripple requirement (Flickering or flickering-Free) | Flicker value: Less than 5% for the whole dimming range | |||||||||||
| Start-up time | <1s (@230Vac) | |||||||||||
| Output | No-load output voltage | 57VDC Max. | 50V DC Max. | |||||||||
| Load output voltage range | 3-45VDC | 3-40V DC | ||||||||||
| Full load output power | 20W Max. | 30W Max. | ||||||||||
| Load output current | 200-550mA | 700-1050mA | ||||||||||
| Constant current/voltage Precision | Constant Current Precision ±5% | |||||||||||
| Wiring method | Push terminal, wire cross section:0.75-1.5mm2 | |||||||||||
| Control Method | Working frequency | 2.4-2.48GHz | ||||||||||
| Transmitting power | +8dBm (Max.) | |||||||||||
| Transmission distance | Point-to-point transmission range 30m Max. | |||||||||||
| Modulation mode | O-QPSK PHY | |||||||||||
| Exception Protection Requirements | Output over temperature protection |
Yes, without self recovery function (Can be inquired) | ||||||||||
| Output short circuit protection | Yes, without self recovery function (Can be inquired) | |||||||||||
|
Operating Environment |
Operating temperature/ humidity | -25℃~50℃ Humidity:85% (Non-condensing) | ||||||||||
| Storage temperature/ humidity | -40℃~80℃, Humidity:10%–95% | |||||||||||
| Max. case temp(Tc) | 85℃ | |||||||||||
|
Safety & EMC |
EMC standard | EN55015 EN61547 EN61000-3-2 EN61000-3-3 | ||||||||||
| Safety standard | EN61347-1 EN61347-2-13 | |||||||||||
| Certification | CE | |||||||||||
| Withstand voltage | 3750Vac, 5mA, 60s (Input “L N”- Output “SEC”) | |||||||||||
| Others | Degrees of protection | IP20 | ||||||||||
| Type of protection | Class II | |||||||||||
| Installation type | Independent installation | |||||||||||
| With crimping | 116*40.5*22mm | 136*42.5*24mm | ||||||||||
| Without crimping | 78*40.5*22mm | 96*42.5*24mm | ||||||||||
| Packaging requirement | PE bag+white box+Instructions+Clapboard+Outer Carton(K=A) | |||||||||||
| Weight | With crimping | Without crimping | With crimping | Without crimping | ||||||||
| 72.2±5g | 57.6±5g | 98.6±5g | 82.0±5g | |||||||||
| Life | 5 year @Ta full load | |||||||||||
| Note: All parameters are tested at the input voltage of 230Vac and 25-degree environment unless specified. | ||||||||||||
【Dimension】
【Wiring】
【Derating】
【Output current setting】
| 1 | 2 | 3 |
KL30C-B1 Current gear setting |
| - | - | - | 700mA(3-40V) |
| ON | - | - | 750mA(3-40V) |
| - | ON | - | 800mA(3-37V) |
| ON | ON | - | 850mA(3-35V) |
| - | - | ON | 900mA(3-33V) |
| ON | - | ON | 950mA(3-31V) |
| - | ON | ON | 1000mA(3-30V) |
| ON | ON | ON | 1050mA(3-28V) |
【Application】
【ATTENTION】
1) The LED driver must be connected to the load before turning on the input power, otherwise, the LED driver may be damaged.
2) After the LED drive input is powered off, there will be a residual voltage at the output, which can be maintained for about 3 minutes.
